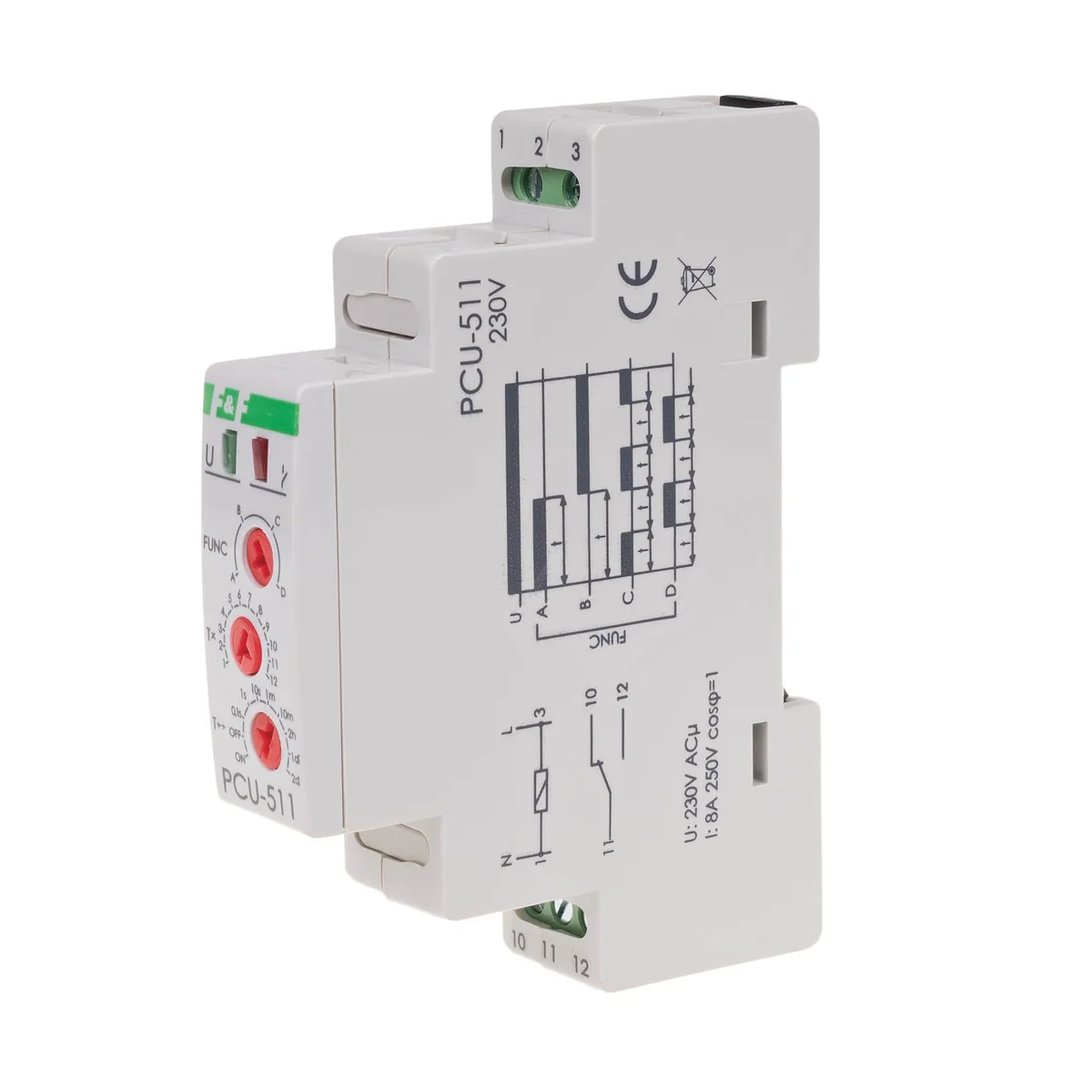

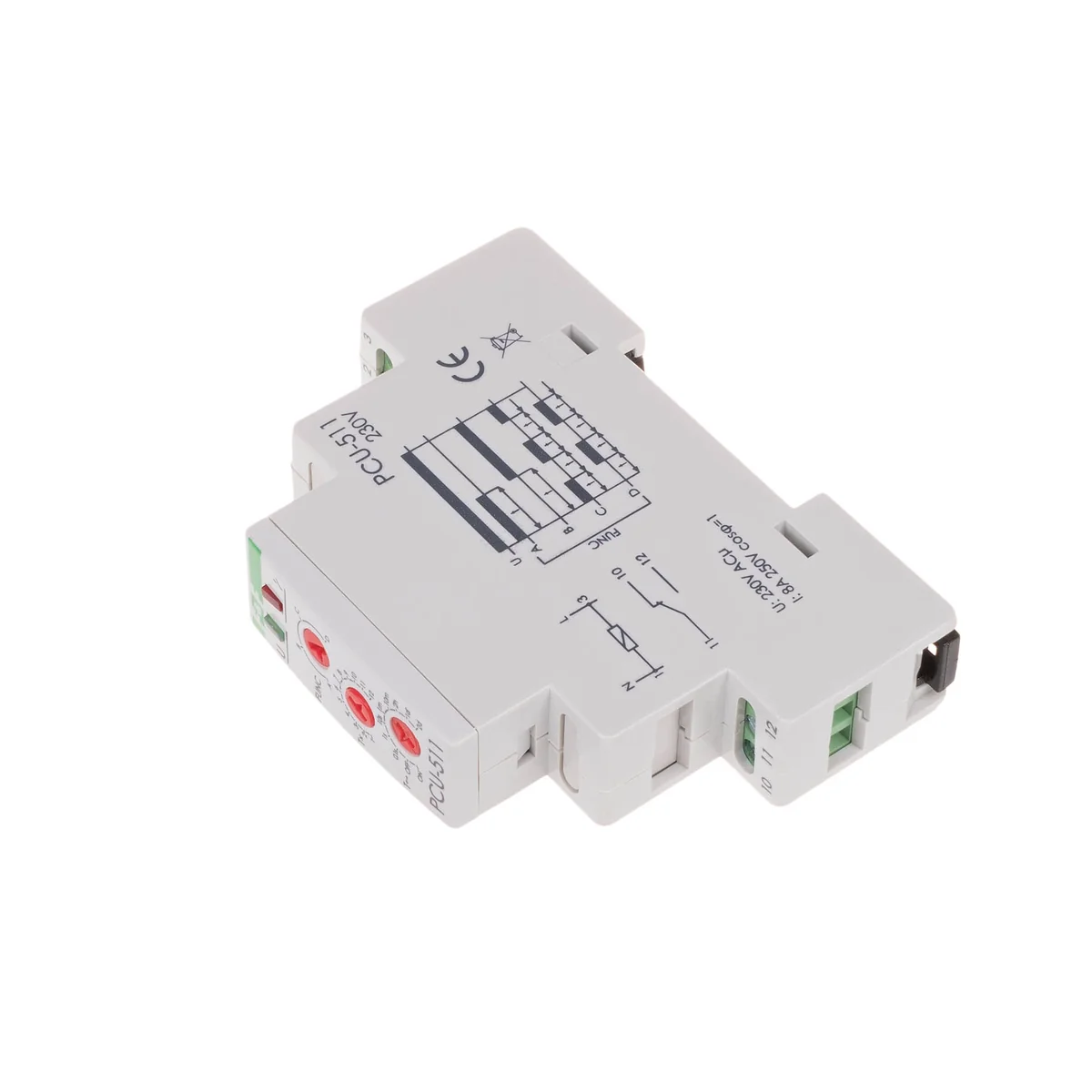

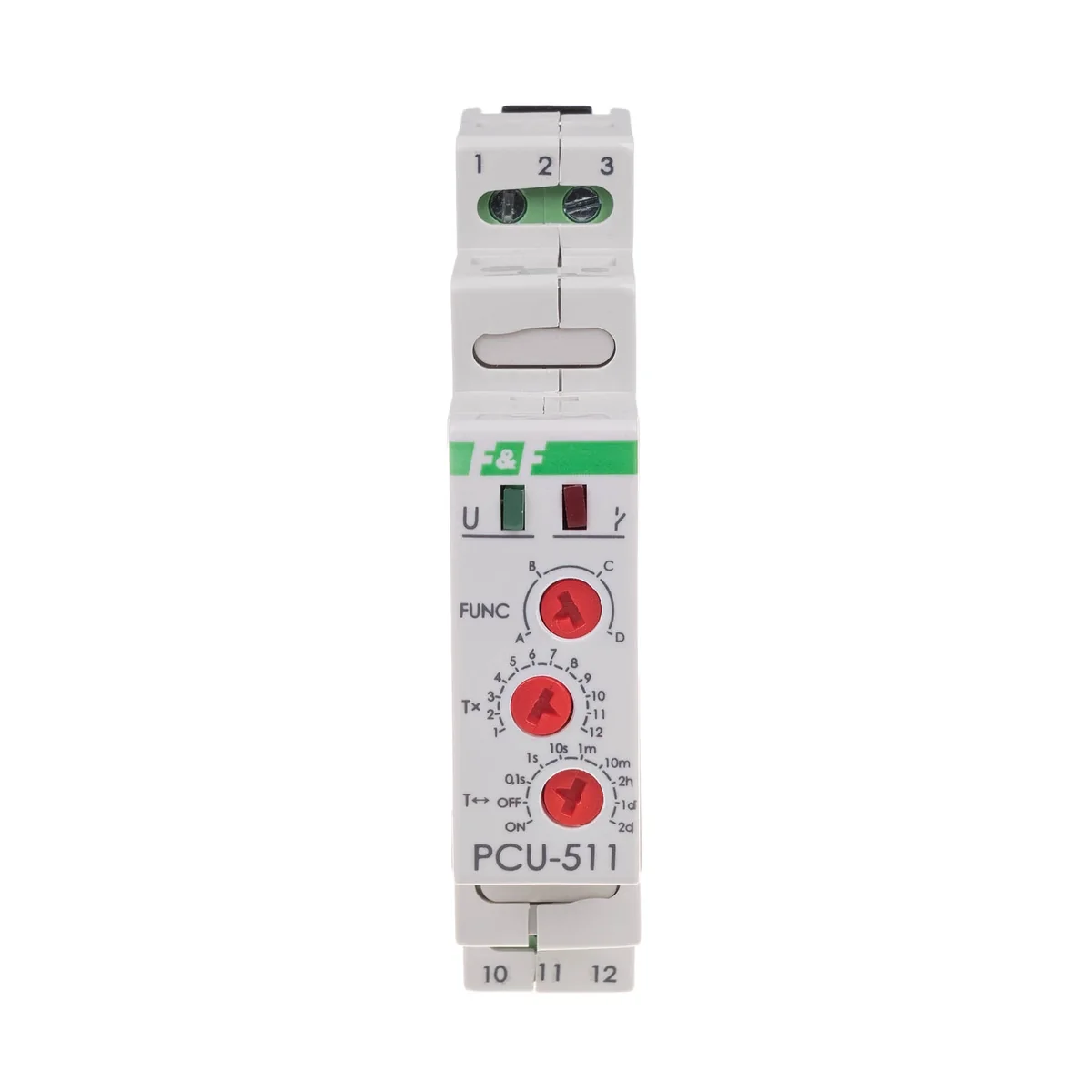

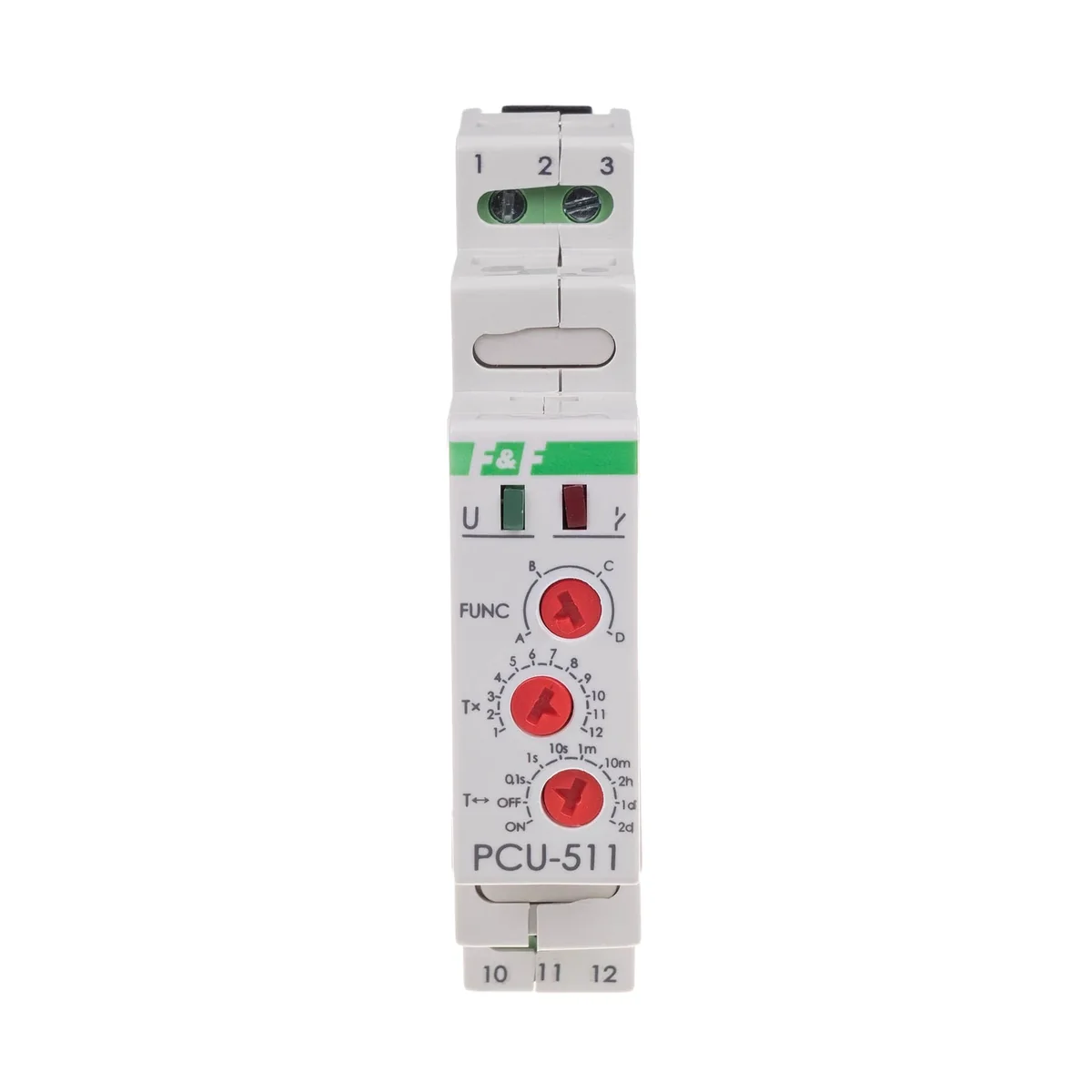

Time relay PCU-511 230V PCU-511

local index:
APC166FIFQ
Catalog No:
PCU-511
EAN code:
5908312595410
Price:
29,98 €
gross / pcs.
including VAT 23%
Availability:
Check availability in branches
In warehouses 23 pcs.
Delivery:
From 3,47 € (prepaid courier) Details
Estimated delivery time:
DHL, Inpost 1-3 working days

Delivery in 3h

Pickup in 1h

Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Purpose
Relays  temporary   are used for  time control in industrial and home automation systems (e.g. ventilation, heating, lighting, signaling, etc). the contact remains in position 11-10 (3-5 for PCU-511 UNI). After the supply voltage is applied, the contact is switched to position 11-12 (3-7 for PCU-511 UNI) and the set working time t is measured. After the time t has been measured, the contact returns to position 11-10 (3-5 for PCU-511 UNI ). Reactivation of the relay operating mode is possible after disconnecting the supply voltage and reconnecting it.
*OPÓDELAYED SWITCHING ON (B)
Before and after applying the supply voltage, the contact remains in position 11-10 (3-5 for PCU-511 UNI) and the preset working time t is measured. position 11-12 (3-7 for PCU-511 UNI). Re-execution of the relay operating mode is possible after disconnecting the supply voltage and switching it on again. intervals set  time and break.
*OPÓDELAYED SWITCHING ON - CYCLICALLY (D)
Delayed-on operation mode carried out cyclically in the same  intervals set  working time and breaks. Note!
* When the power supply is on, the system does not react to changing the time range settings.
* Operation with the newly set time range takes place after switching off and on again
* When the power is turned on within the set time range, it is possible to smoothly adjust the time within the time setting value.
 ON  - when the power supply is on, the contact is permanently switched on  in position 11-12.
 OFF  -  when the power supply is on, the contact is permanently switched on  in position 11-10

Technical data

  • Number of contacts
    0NO 0NC
  • Installation
    On the TH-35 rail
  • Tripping delay [msec]
    <50
  • connection
    2.5mm screw terminals
  • Power indication
    LED green
  • Dimensions
    1 module (18mm)
  • Power [V]
    230
  • Package width [mm]
    20
  • Operating time setting range [s]
    0.1sec-576hrs
  • Power [W]
    0.8
  • Rated voltage [V]
    230
  • load current [A]
    <8
  • Contact status indication
    red LED
  • Working temperature [°C]
    -25-50
  • Working time setting range
    0.1sec-576hrs
  • Package height [mm]
    150
  • Package weight [kg]
    0, 1

Other technical data

  • Type of excitation
    Analogue with multi function
  • 1st interval unit
    Seconds/minutes
  • Number of changeover switches
    1
  • Voltage type (supply voltage)
    AC/DC
  • Switch capacity incandescent lamps
    1100 W
  • Switch capacity fluorescent lamp parallel
    300 VA
  • Function
    Multi function
  • Mounting method
    DIN rail
  • Type of control voltage 1
    AC/DC
  • Nominal switching current at 250 V AC
    8 A
  • Switch capacity fluorescent lamp DUO
    550 VA
  • Switch capacity fluorescent lamp inductive
    550 VA
