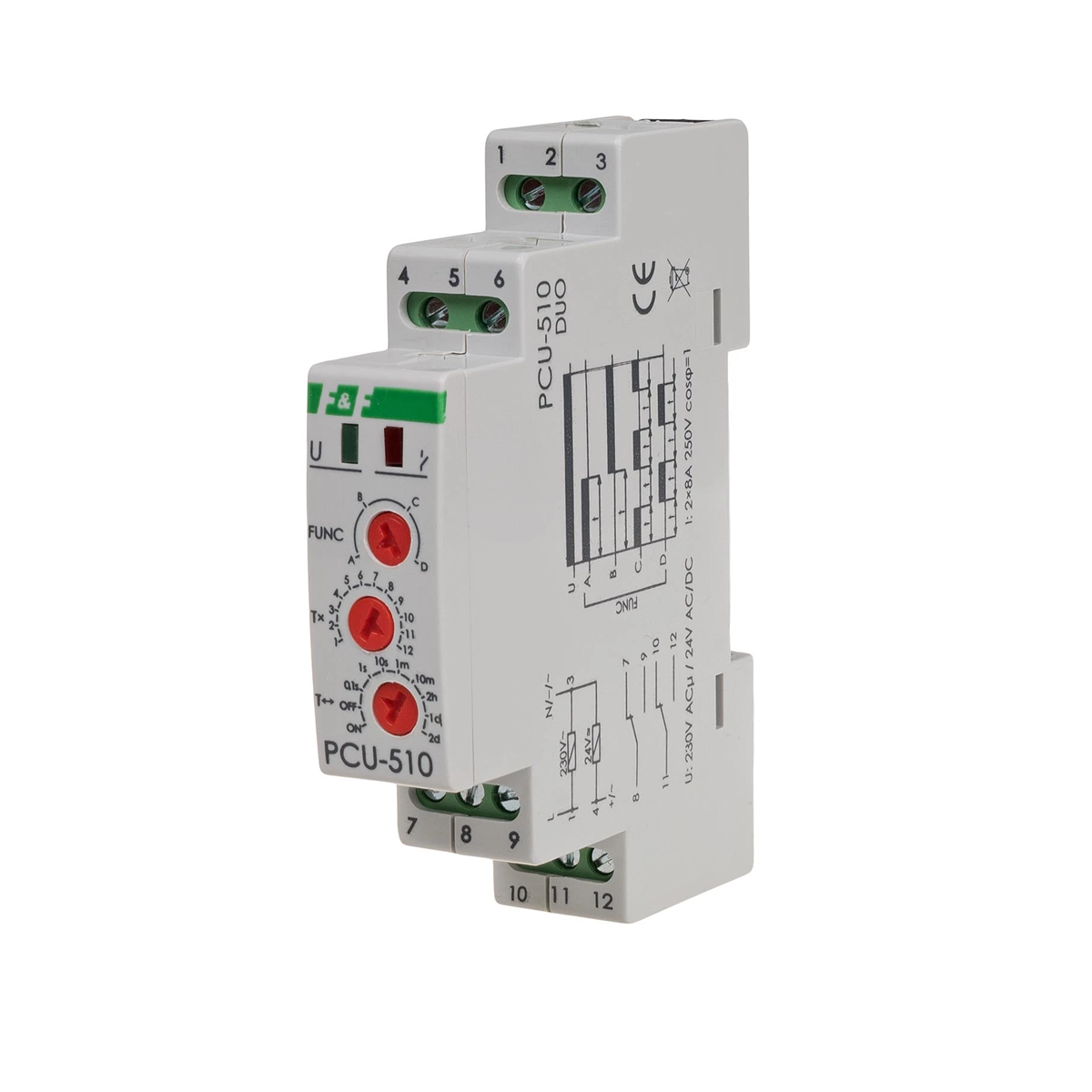

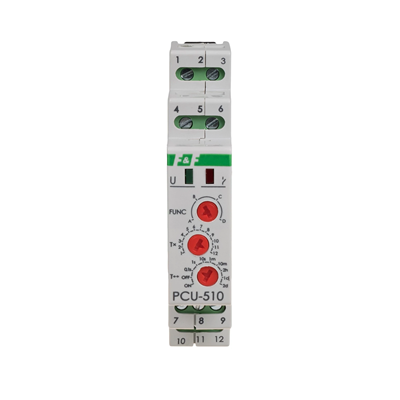

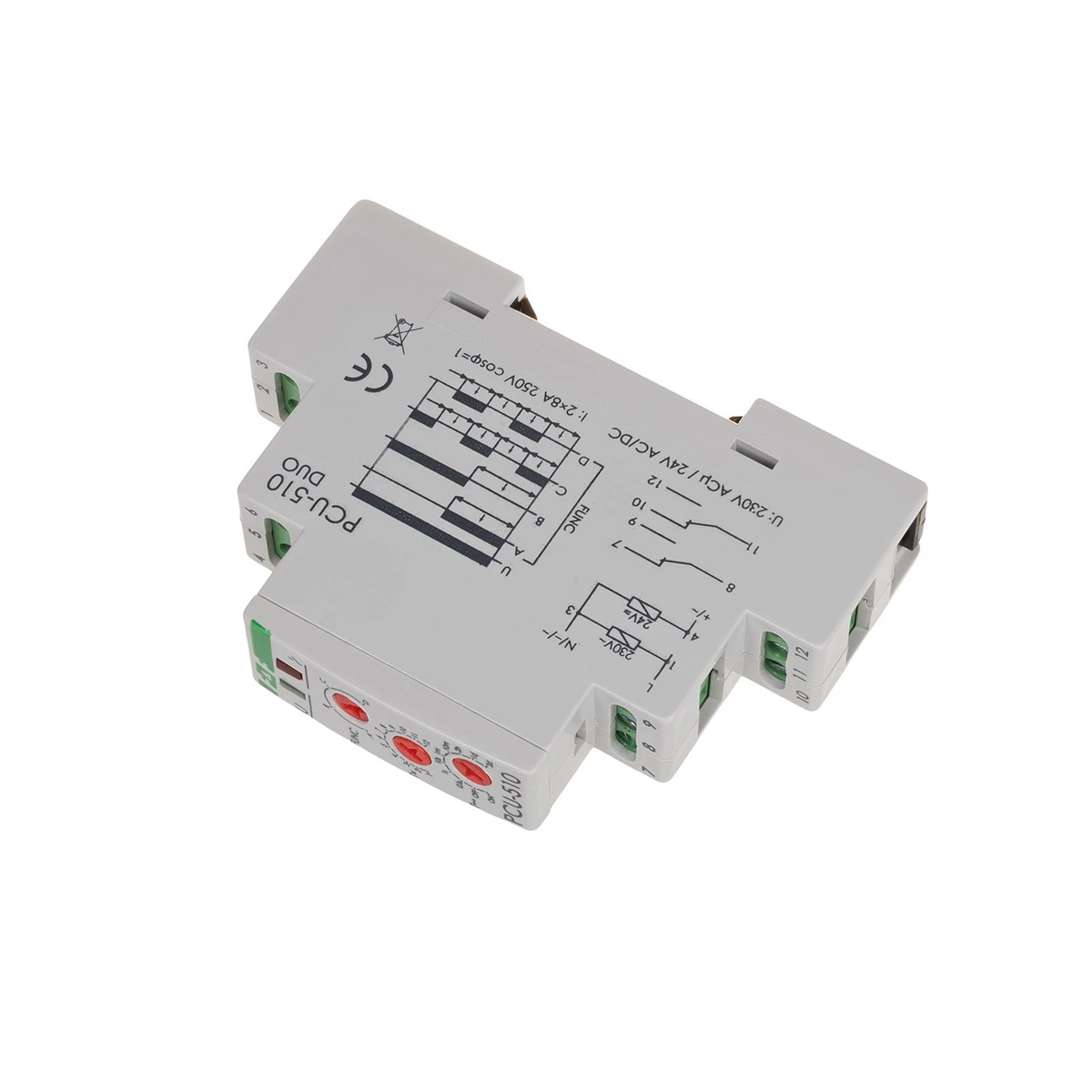

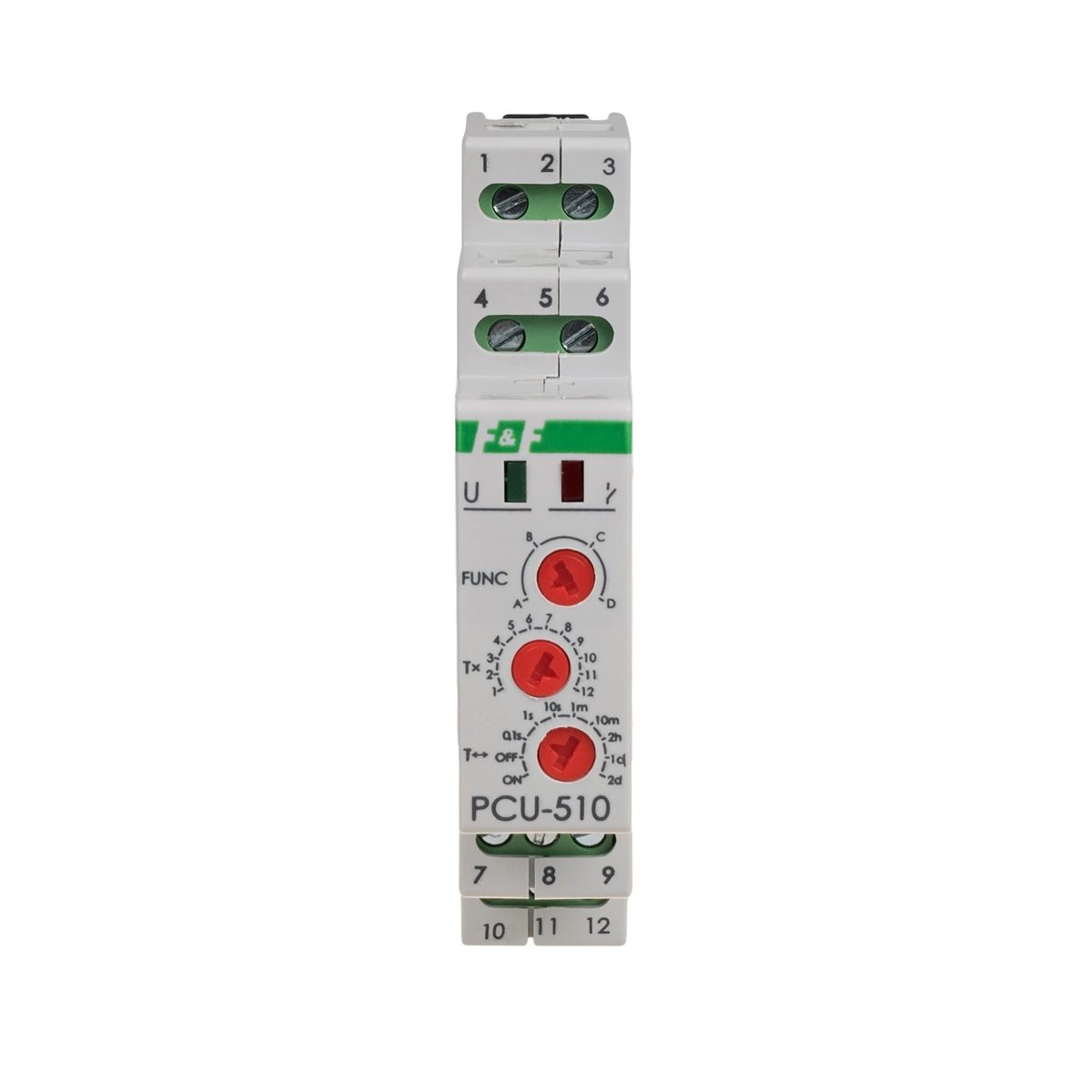

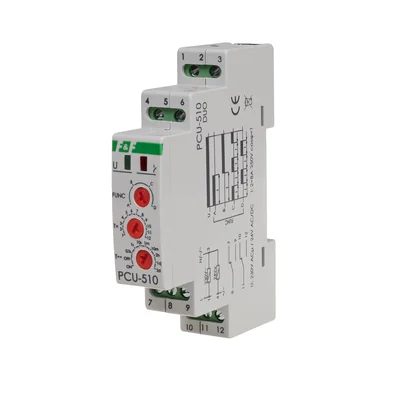

Time relay PCU-510 230V PCU-510DUO

local index:
APC162FIFQ
Catalog No:
PCU-510DUO
EAN code:
5908312595403
Manufacturer: F&F
Number of contacts: 0NO 0NC
Power [W]: 0.8
Installation: On the TH-35 rail
Price:
32,14 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 24 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

ON  - when the power supply is on, the contact is permanently switched on  in position 11-12.
OFF  -  when the power supply is on, the contact is permanently switched on  in position 11-10.

Technical data

  • Number of contacts
    0NO 0NC
  • Installation
    On the TH-35 rail
  • DC rated voltage [V]
    24
  • load current [A]
    2x8
  • Contact status indication
    red LED
  • Working temperature [°C]
    -25-50
  • Working time setting range
    0.1sec-576hrs
  • Package height [mm]
    150
  • Package weight [kg]
    0.1
  • PKWIU
    26.52.24.0
  • Power [W]
    0.8
  • Rated voltage [V]
    230
  • Tripping delay [msec]
    <50
  • connection
    2.5mm screw terminals
  • Power indication
    LED green
  • Dimensions
    1 module (18mm)
  • Power [V]
    230/24
  • Package width [mm]
    20
  • Operating time setting range [s]
    0.1sec-576hrs

Other technical data

  • Type of excitation
    Analogue with multi function
  • 1st interval unit
    Seconds/hours
  • 2nd interval unit
    Seconds/hours
  • Number of changeover switches
    2
  • Voltage type (supply voltage)
    AC
  • Switch capacity incandescent lamps
    1100 W
  • Switch capacity fluorescent lamp parallel
    350 VA
  • Function
    Multi function
  • 1st interval
    0.1 ... 576
  • Mounting method
    DIN rail
  • Type of control voltage 1
    AC/DC
  • Nominal switching current at 250 V AC
    8 A
  • Switch capacity fluorescent lamp DUO
    550 VA
  • Switch capacity fluorescent lamp inductive
    550 VA

Bulk packaging

A kind of package Sztuka Karton
Quantity 1 pcs. 12 pcs.
Weight (kg) 0,075 -
Width (m) 0,019 -
Length (m) 0,095 -
Depth (m) 0,070 -
