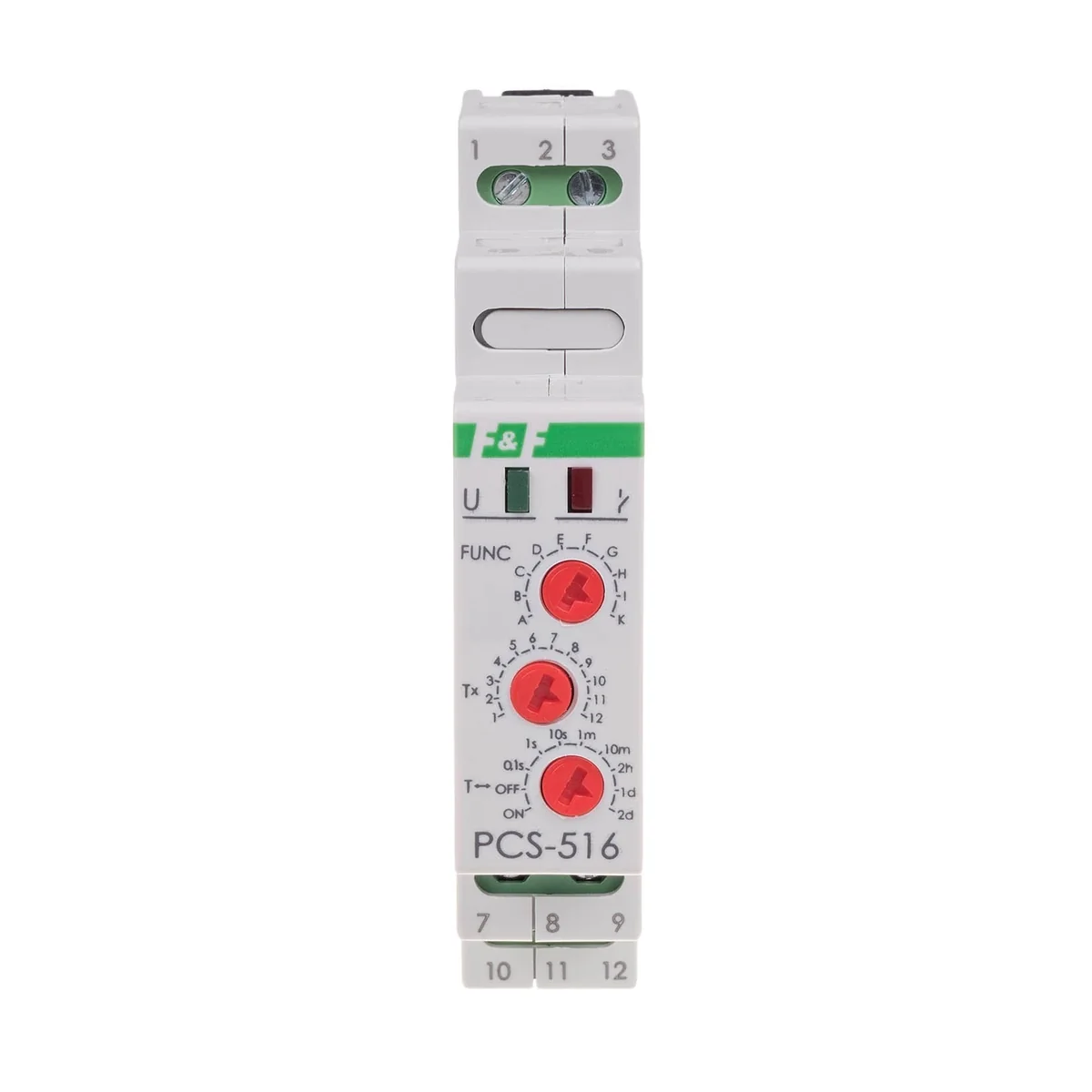

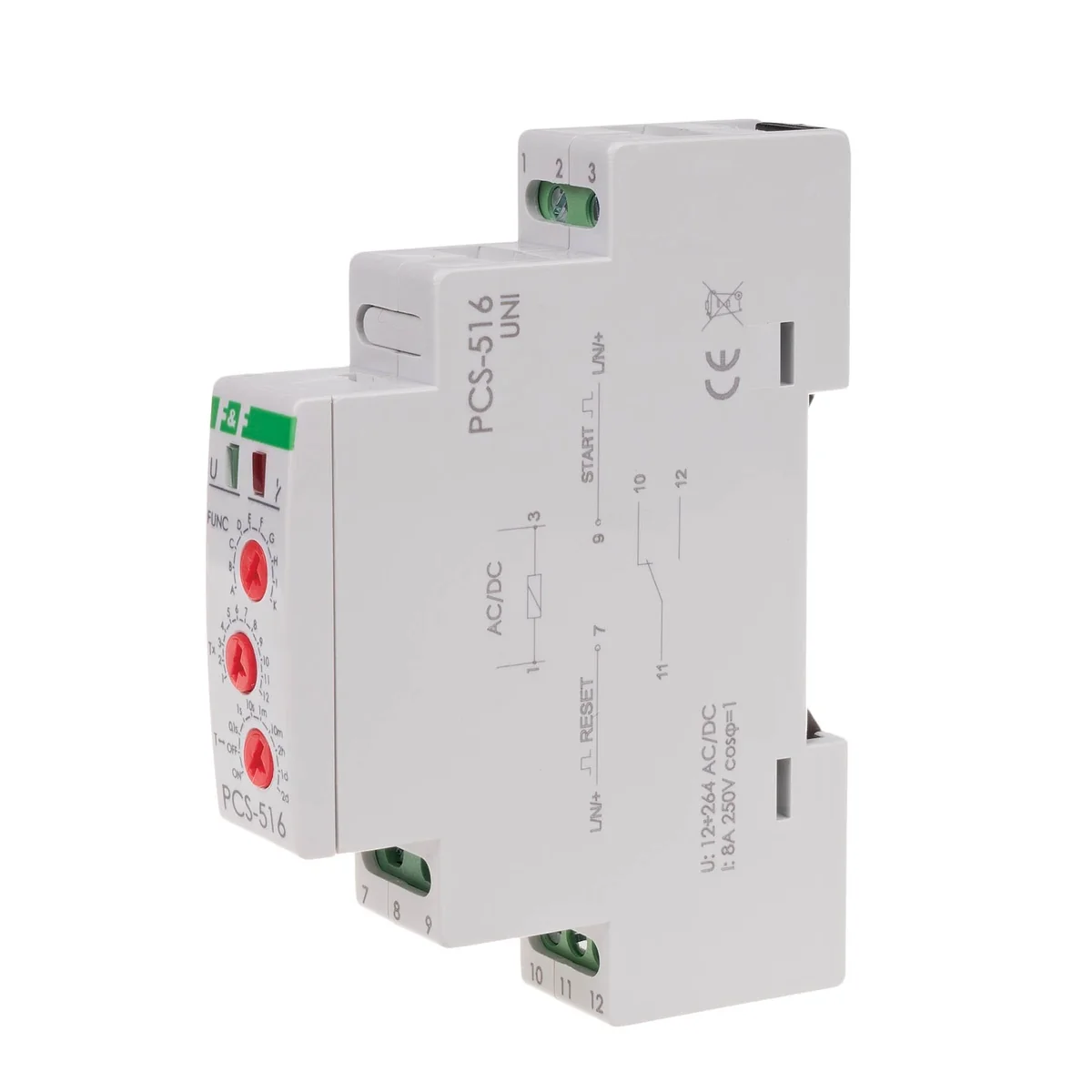

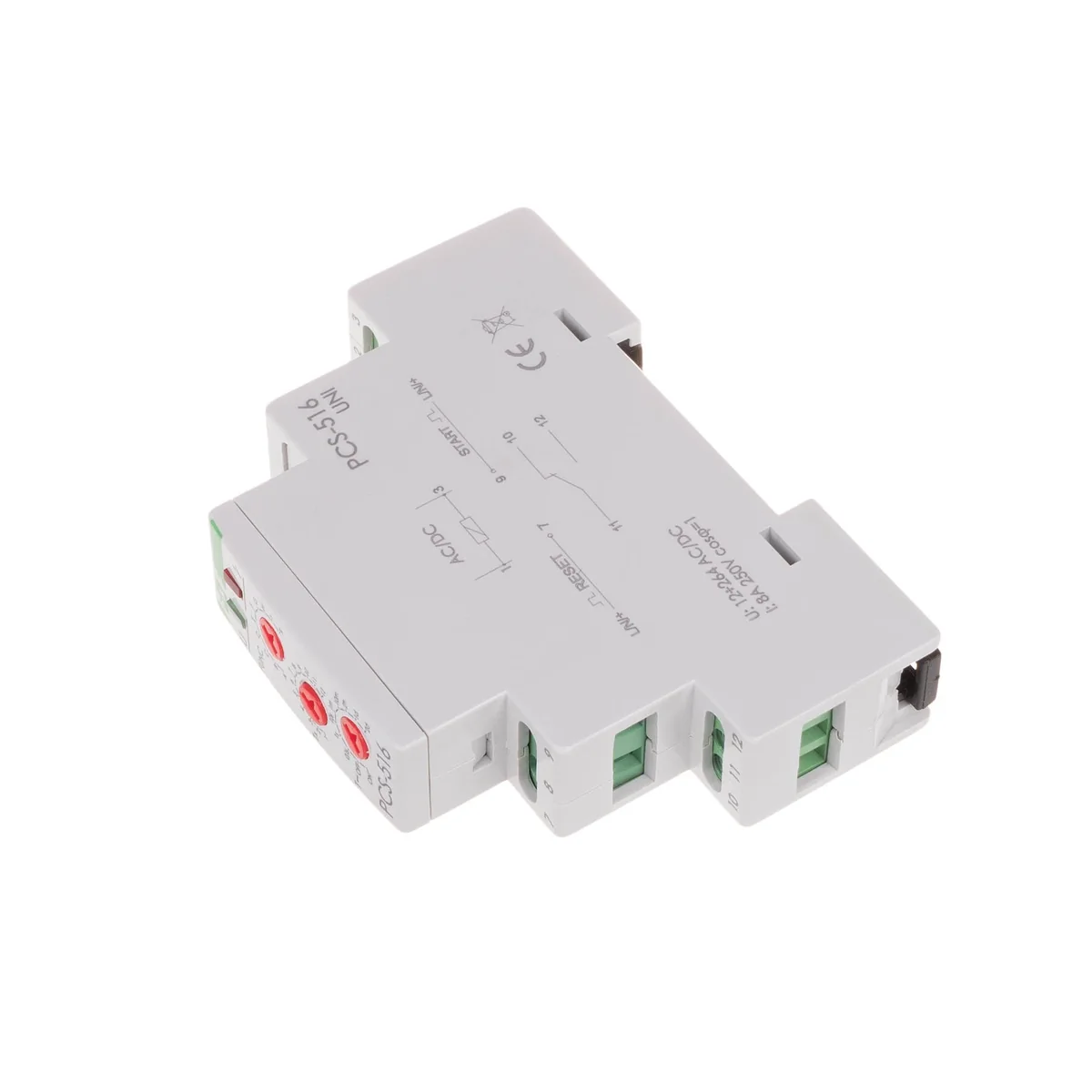

Time relay PCS-516 UNI PCS-516UNI

local index:
APC185FIFQ
Catalog No:
PCS-516UNI
EAN code:
5908312591429
Manufacturer: F&F
Power [W]: 0.8
Installation: On the TH-35 rail
connection: 2.5mm screw terminals
Price:
31,29 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 24 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Time relays are used for time control in industrial and home automation systems (e.g. ventilation, heating, lighting, signaling, etc.). The relay performs the selected work function in accordance with the set time regime. Selection of a specific time range and relay operation function consists in setting the appropriate combination of rotary code switches.

Technical data

  • Power [W]
    0.8
  • connection
    2.5mm screw terminals
  • Dimensions
    1 module (18mm)
  • Package width [mm]
    20
  • PKWIU
    26.52.24.0
  • Installation
    On the TH-35 rail
  • Working temperature [°C]
    -25-50
  • Package height [mm]
    150
  • Package weight [kg]
    0.1

Other technical data

  • Type of excitation
    Analogue with multi function
  • 1st interval unit
    Seconds/hours
  • Mounting method
    DIN rail
  • Number of changeover switches
    1
  • Supply voltage
    12 ... 264 V
  • Nominal switching current at 250 V AC
    8 A
  • Switch capacity fluorescent lamp DUO
    550 VA
  • Switch capacity fluorescent lamp inductive
    550 VA
  • Function
    Multi function
  • 1st interval
    0.1 ... 576
  • Width in number of modular spacings
    1
  • Type of control voltage 1
    AC/DC
  • Voltage type (supply voltage)
    AC/DC
  • Switch capacity incandescent lamps
    1100 W
  • Switch capacity fluorescent lamp parallel
    300 VA

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,068
Width (m) 0,019
Length (m) 0,095
Depth (m) 0,070
