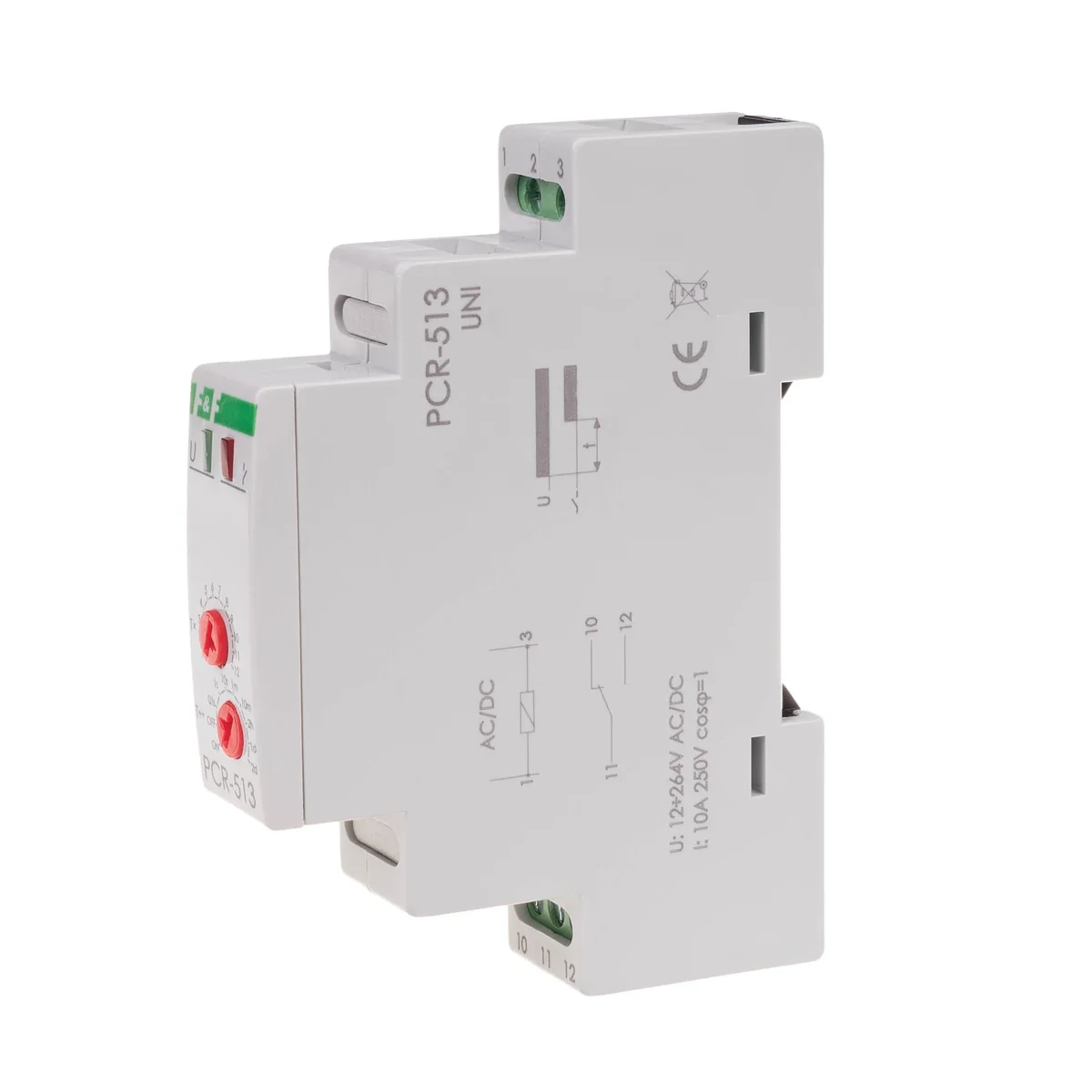

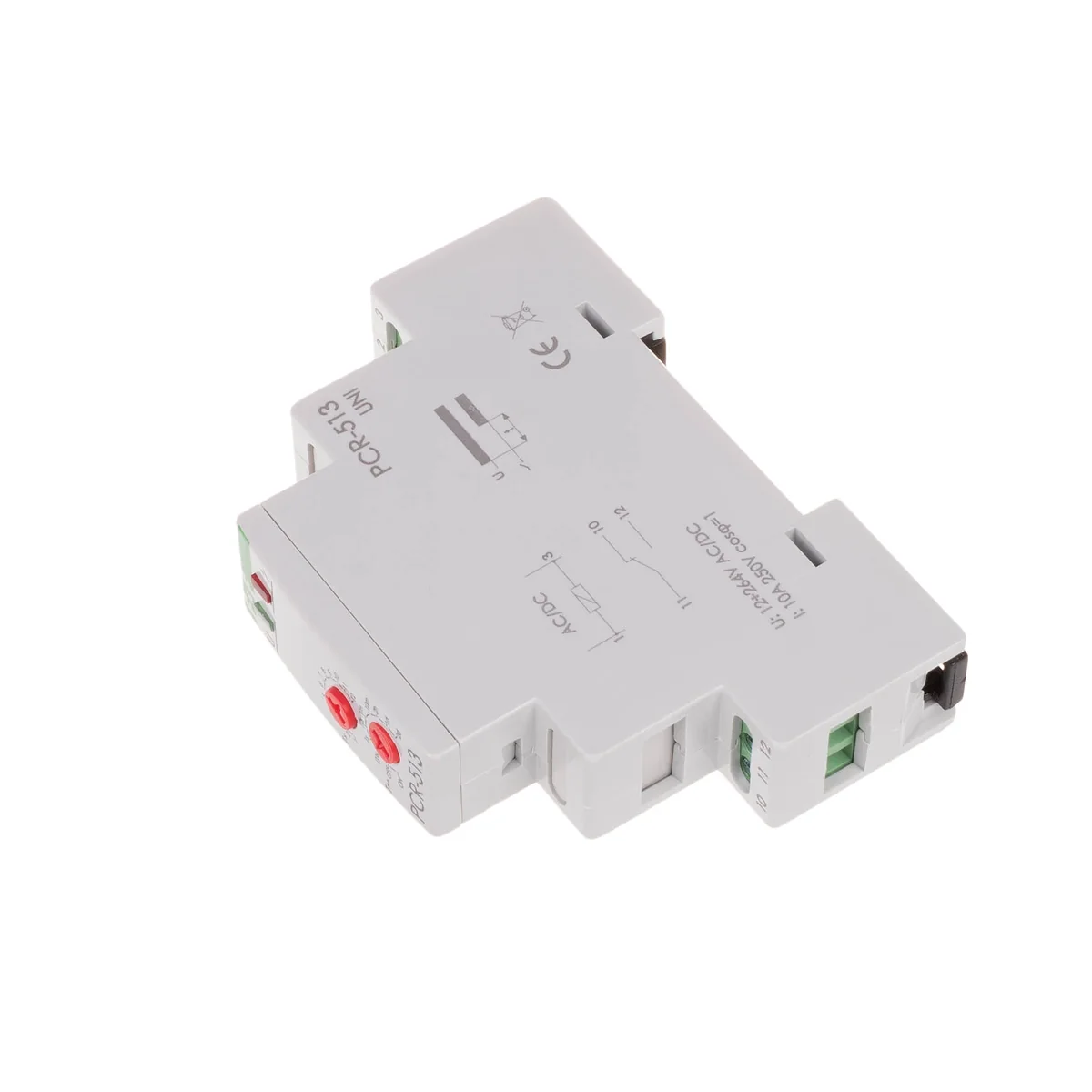

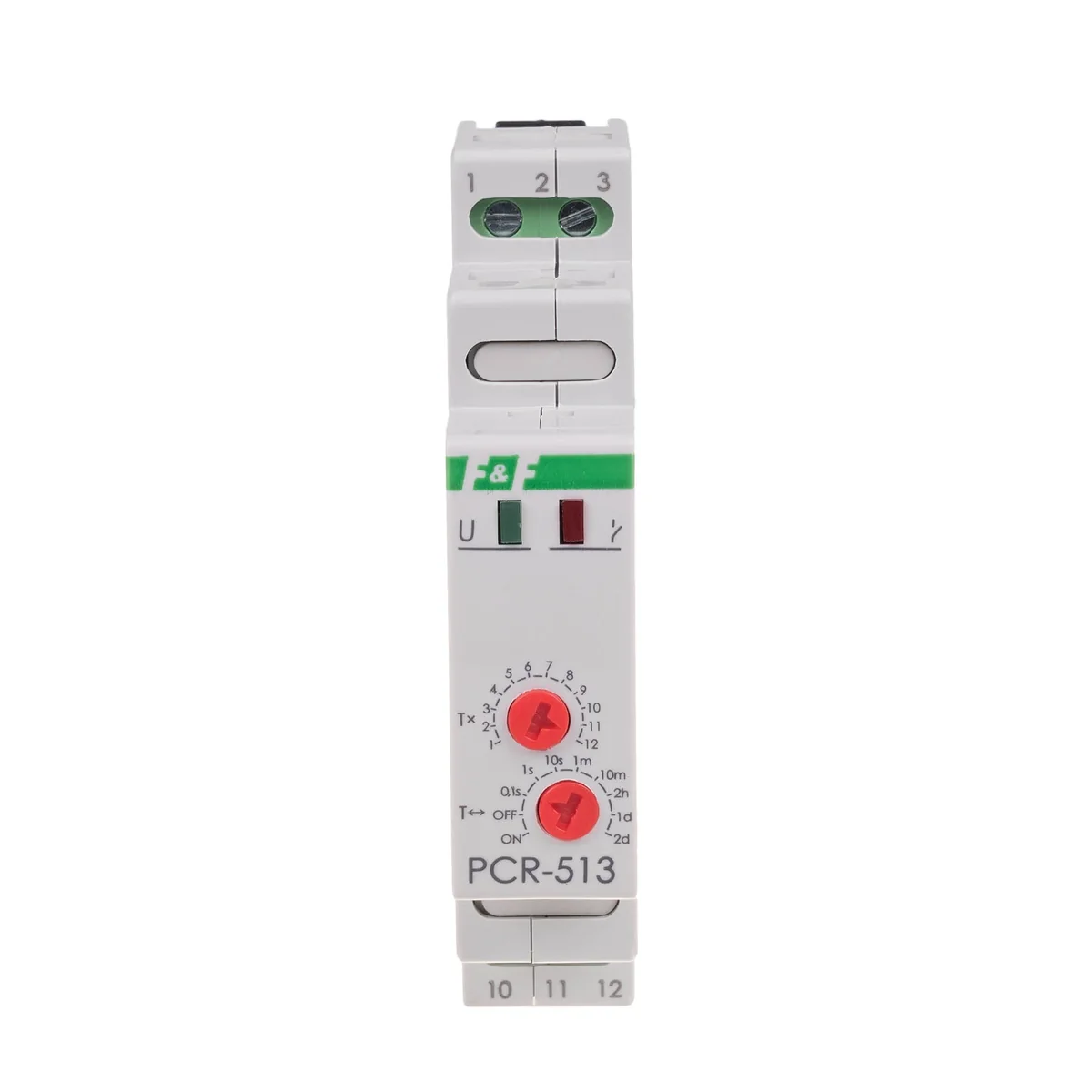

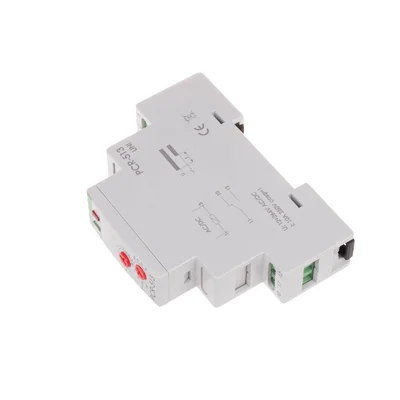

Time relay PCR-513 UNI PCR-513UNI
local index:
APC153FIFQ
Catalog No:
PCR-513UNI
EAN code:
5908312591375
Price:
143,91 zł
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
Time relays are used for time control in industrial and home automation systems (e.g. ventilation, heating, lighting, signaling, etc.).
Technical data
-
Power [W]0.8
-
Rated current [A]10
-
Dimensions1 module (18mm)
-
Package height [mm]150
-
Package weight [kg]0.1
-
PKWIU26.52.24.0
-
InstallationOn the TH-35 rail
-
connection2.5mm screw terminals
-
Working time setting range0.1sec-576hrs
-
Package width [mm]20
-
Operating time setting range [s]0.1sec-576hrs
Other technical data
-
Type of excitationDigital with single function
-
1st interval unitSeconds/minutes
-
2nd interval unitMinutes/hours
-
Mounting methodDIN rail
-
Supply voltage12 ... 264 V
-
Nominal switching current at 250 V AC10 A
-
Switch capacity fluorescent lamp DUO650 VA
-
Switch capacity fluorescent lamp inductive650 VA
-
FunctionOperating delay
-
1st interval0.1 ... 1
-
2nd interval0.1 ... 576
-
Number of changeover switches1
-
Voltage type (supply voltage)AC/DC
-
Switch capacity incandescent lamps1500 W
-
Switch capacity fluorescent lamp parallel500 VA
Manufacturer details
-
ManufacturerF&F Filipowski S.K.
-
Address95-200 Pabianice Konstantynowska 79/81 Polska
-
E-mail
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,074 |
| Width (m) | 0,019 |
| Length (m) | 0,095 |
| Depth (m) | 0,070 |
