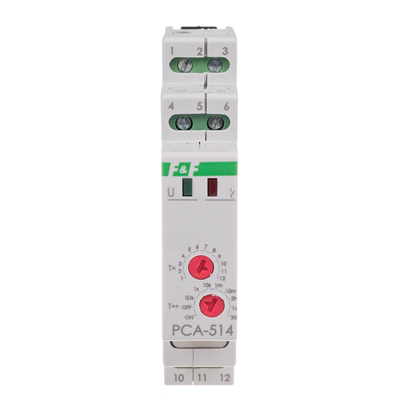

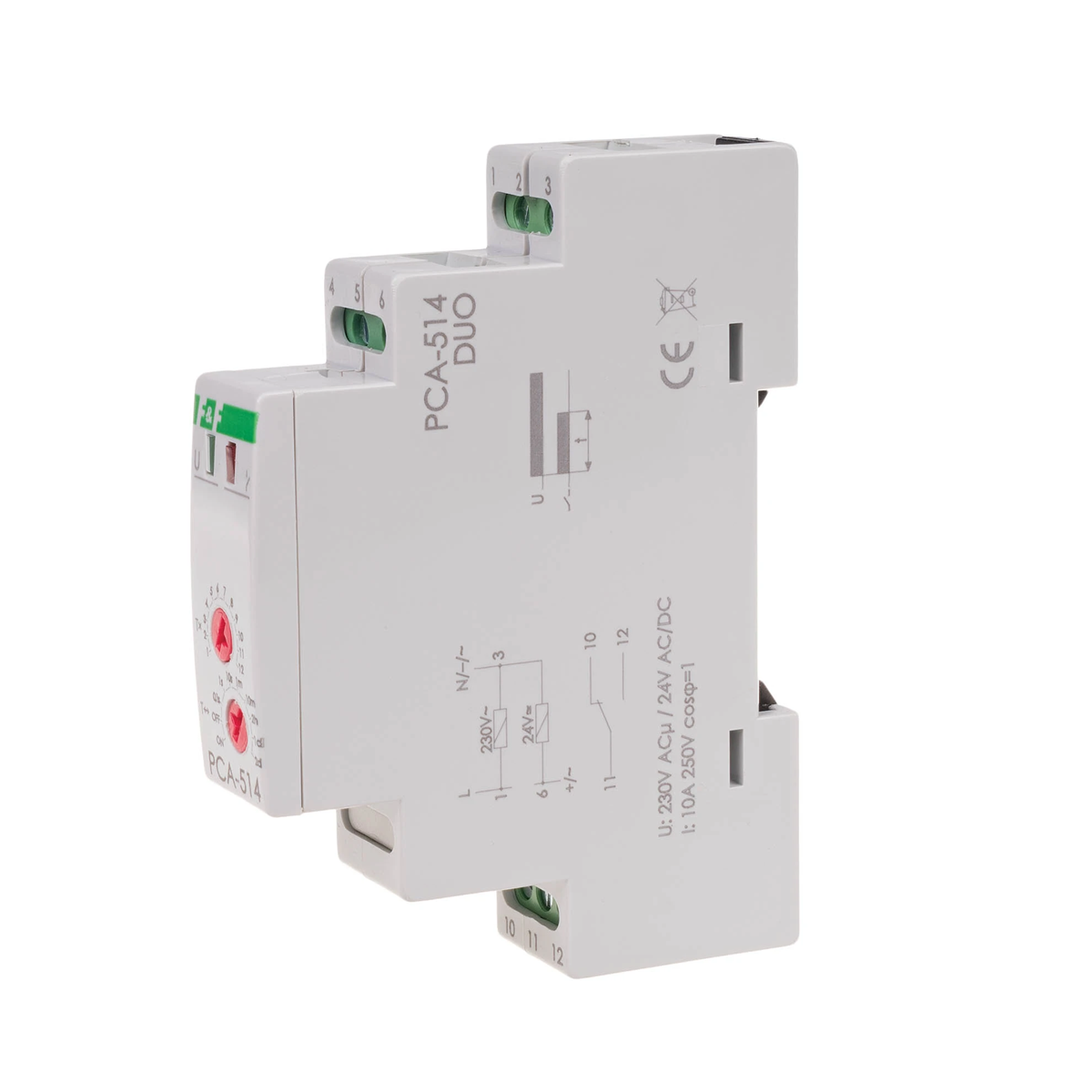

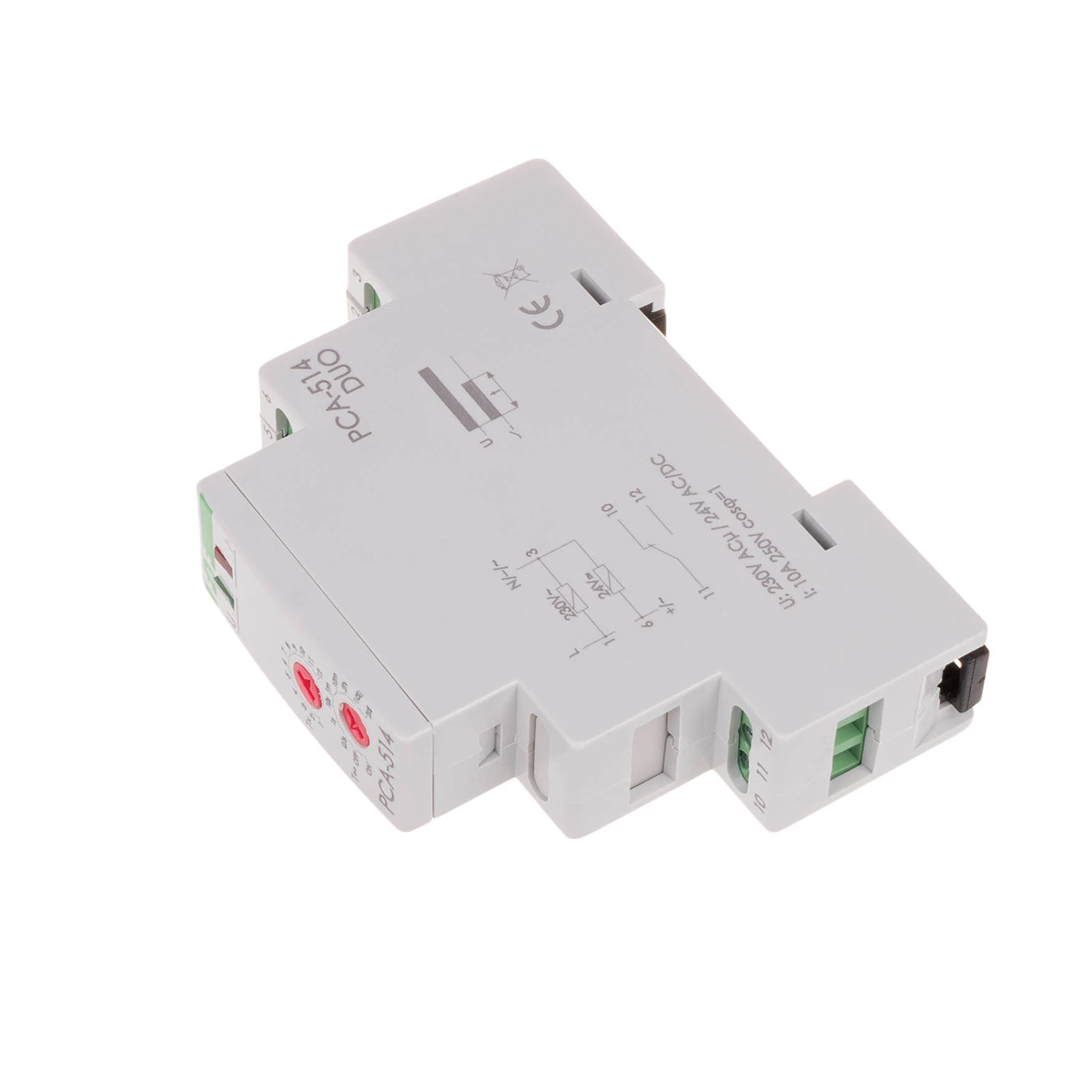

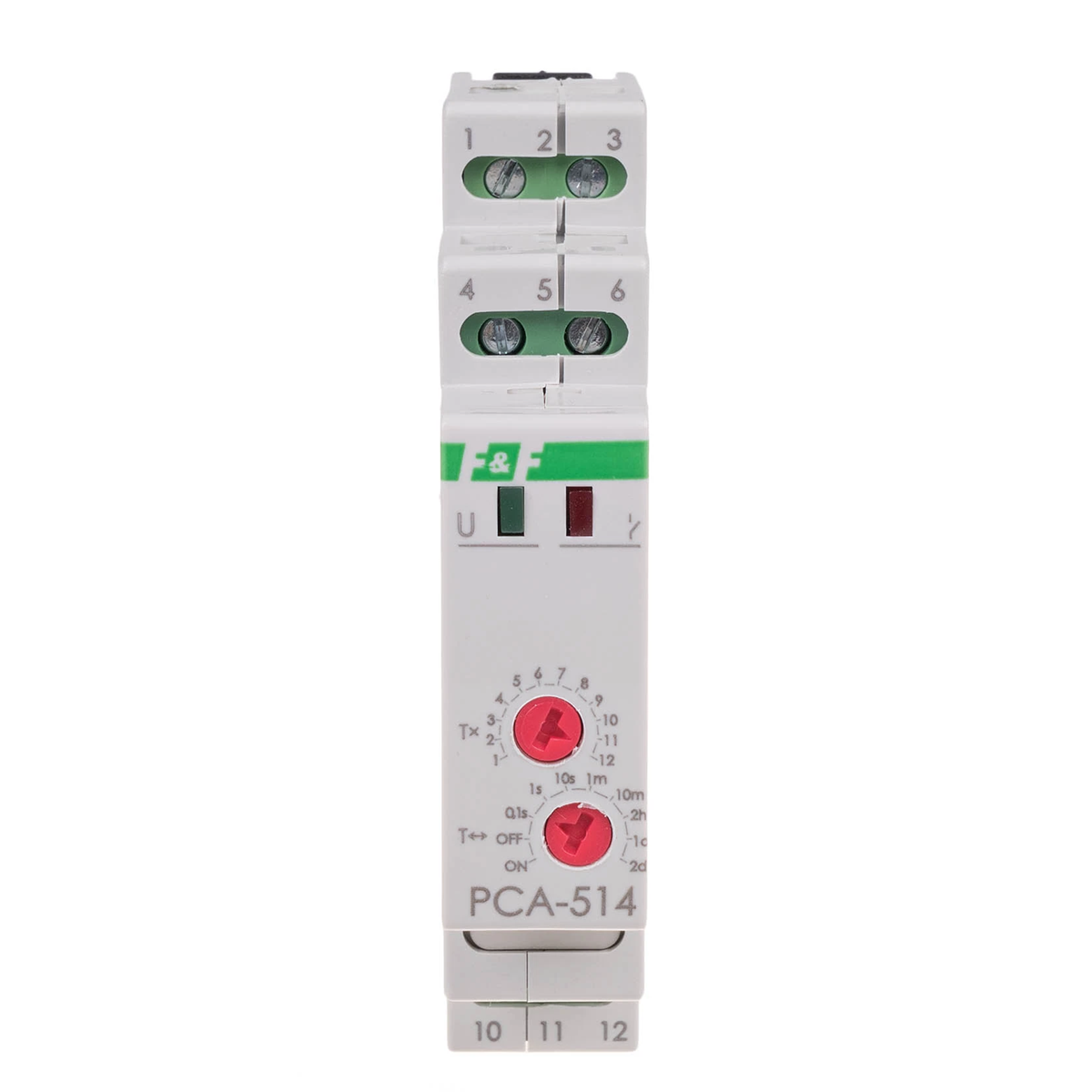

Time relay PCA-514 DUO single-function - aversive PCA-514DUO

local index:
APC159FIFQ
Catalog No:
PCA-514DUO
EAN code:
5908312595465
Manufacturer: F&F
Installation: On the TH-35 rail
Rated voltage [V]: 230
Rated current [A]: 10
Price:
28,39 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Time relays are used for time control in industrial and home automation systems (e.g. ventilation, heating, lighting, signaling, etc.). Until the relay is switched on, the contact remains in position 11-10. After supplying the supply voltage, the contact is switched to position 11-12 and the set working time is measured. After the time has elapsed, the contact returns to position 11-10. Reactivation of the relay operating mode is possible after disconnecting the supply voltage and switching it on again.

Technical data

  • Installation
    On the TH-35 rail
  • Rated current [A]
    10
  • Dimensions
    1 module (18mm)
  • Package height [mm]
    150
  • Package weight [kg]
    0.1
  • PKWIU
    26.52.24.0
  • Rated voltage [V]
    230
  • connection
    2.5mm screw terminals
  • Working time setting range
    0.1sec-576hrs
  • Package width [mm]
    20
  • Operating time setting range [s]
    0.1sec-576hrs

Other technical data

  • Type of excitation
    Digital with single function
  • 1st interval unit
    Seconds/minutes
  • 2nd interval unit
    Minutes/hours
  • Mounting method
    DIN rail
  • Number of changeover switches
    1
  • Voltage type (supply voltage)
    AC/DC
  • Switch capacity incandescent lamps
    1500 W
  • Switch capacity fluorescent lamp parallel
    500 VA
  • Function
    Other
  • 1st interval
    0.1 ... 1
  • 2nd interval
    1 ... 576
  • Width in number of modular spacings
    1
  • Supply voltage
    230 ... 24 V
  • Nominal switching current at 250 V AC
    10 A
  • Switch capacity fluorescent lamp DUO
    650 VA
  • Switch capacity fluorescent lamp inductive
    650 VA

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,067
Width (m) 0,019
Length (m) 0,095
Depth (m) 0,070
