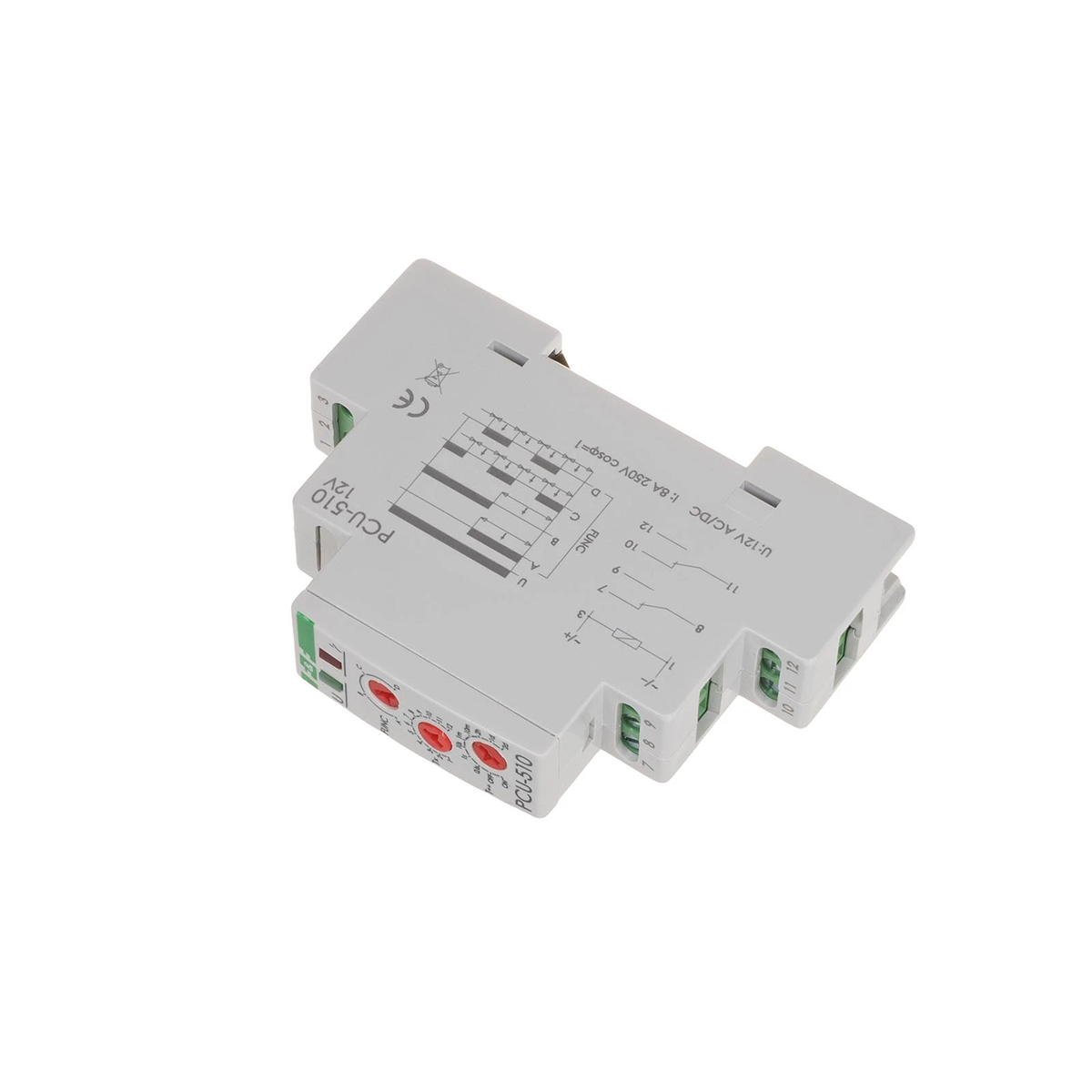

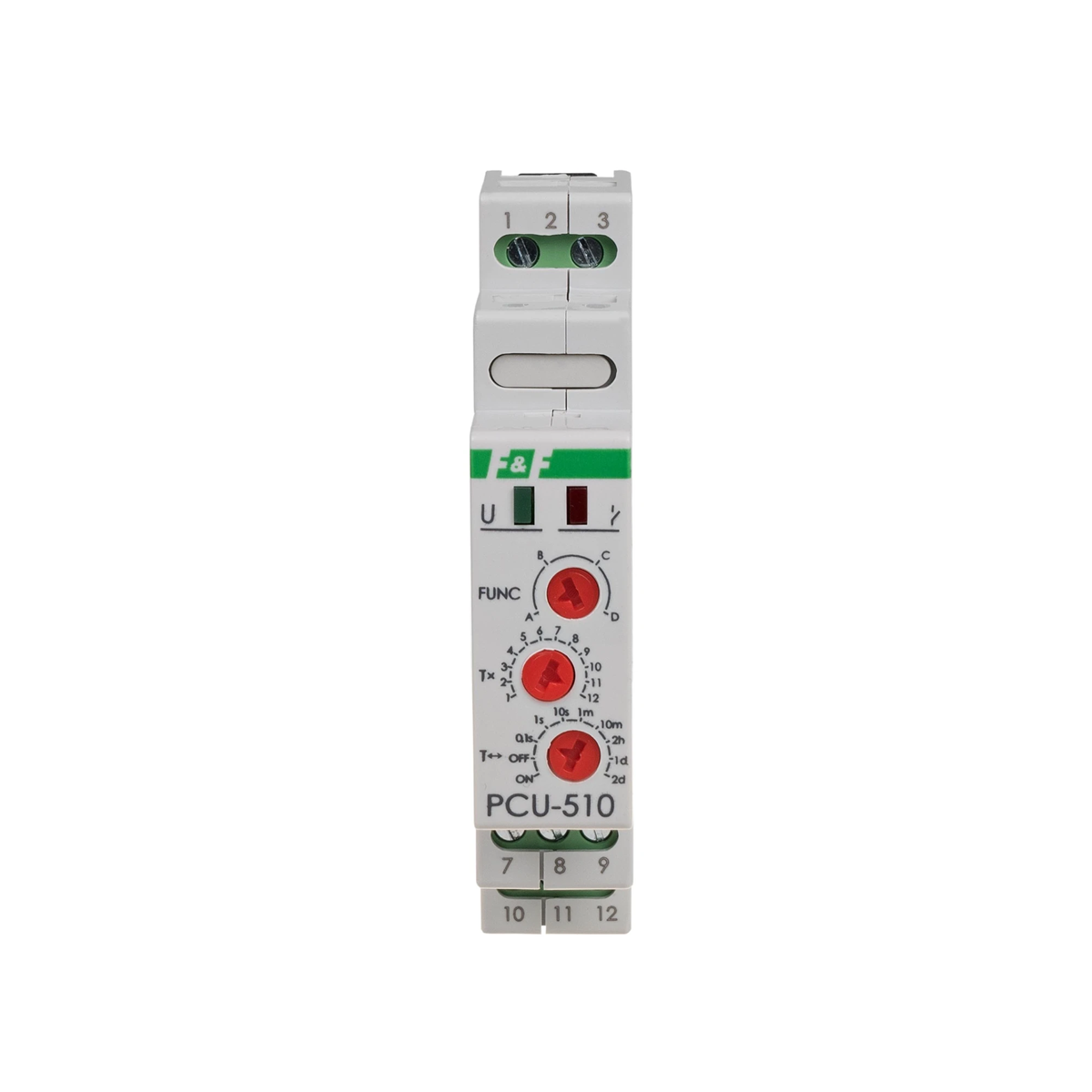

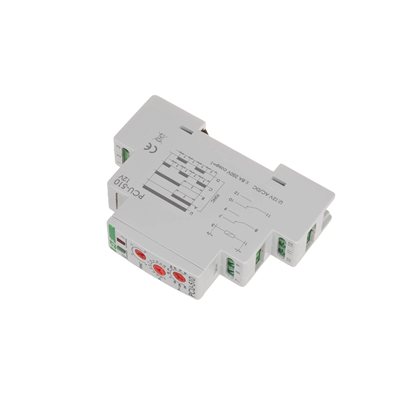

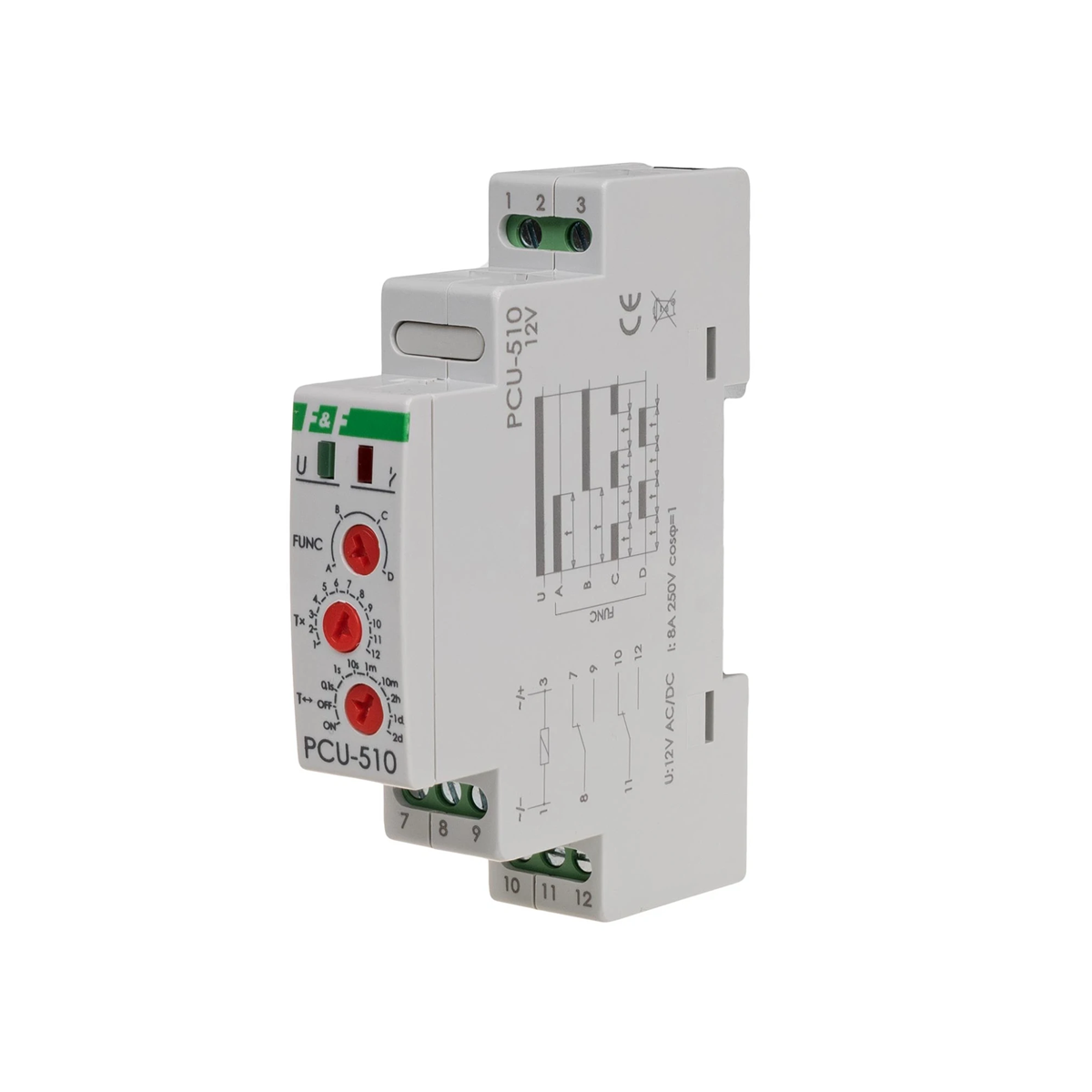

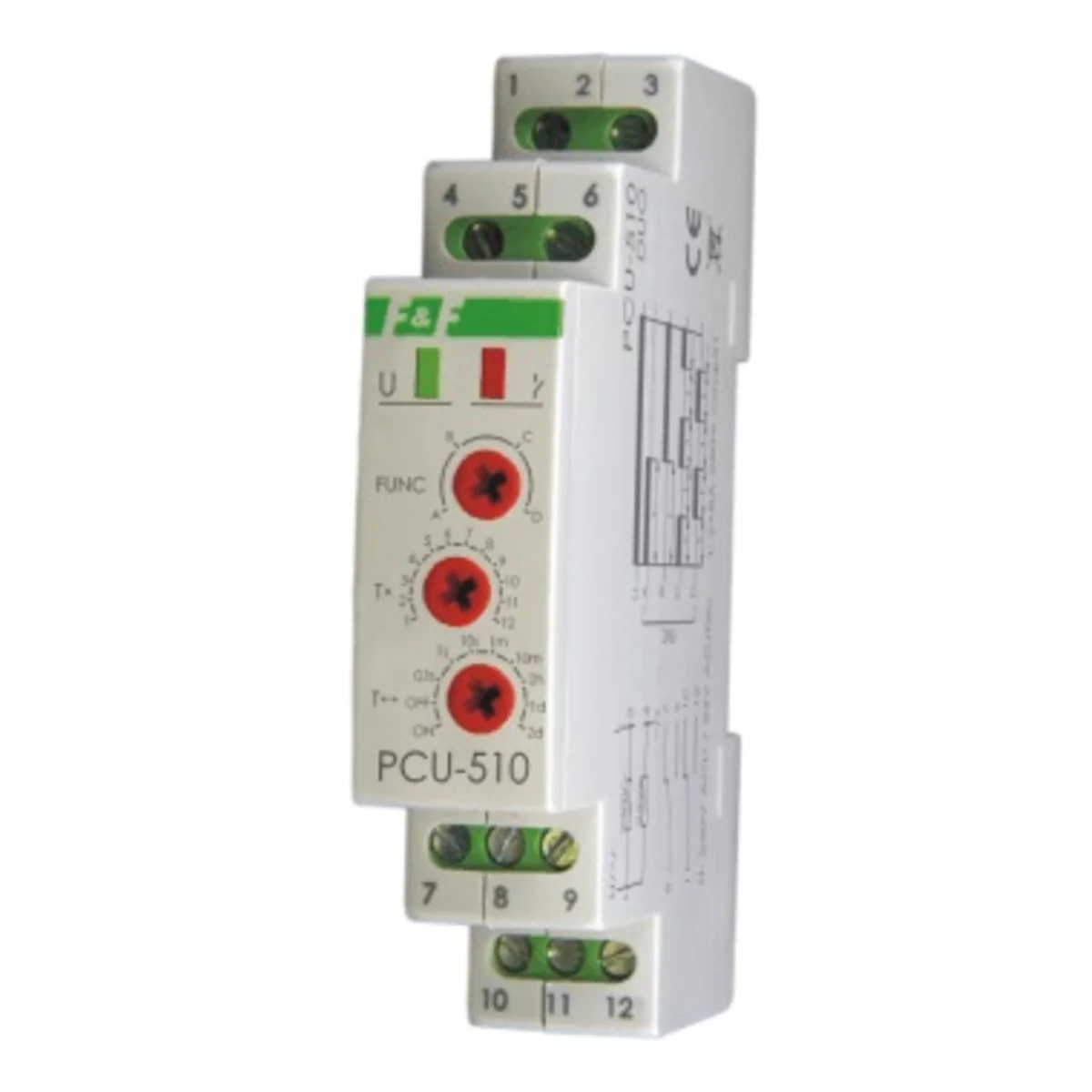

Time relay contact: 2xNO/NC 12V AC/DC PCU-510-12V

local index:
APC030FIFQ
Catalog No:
PCU-510-12V
EAN code:
5908312598152
Manufacturer: F&F
Level of security: IP20
Working temperature [°C]: -25÷50
Price:
35,09 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Time relay with 2xNO/NC contacts powered by 12V (AC/DC)

Technical data

  • Level of security
    IP20
  • PKWIU
    26.52.24.0
  • Working temperature [°C]
    -25÷50

Other technical data

  • Type of excitation
    Analogue with multi function
  • 1st interval unit
    Seconds/minutes
  • Mounting method
    DIN rail
  • Number of changeover switches
    2
  • Voltage type (supply voltage)
    AC/DC
  • Switch capacity incandescent lamps
    1100 W
  • Switch capacity fluorescent lamp parallel
    500 VA
  • Function
    Multi function
  • 2nd interval unit
    Minutes/hours
  • Width in number of modular spacings
    1
  • Supply voltage
    12 ... 12 V
  • Nominal switching current at 250 V AC
    10 A
  • Switch capacity fluorescent lamp DUO
    650 VA
  • Switch capacity fluorescent lamp inductive
    650 VA

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,075
Width (m) 0,019
Length (m) 0,095
Depth (m) 0,070
