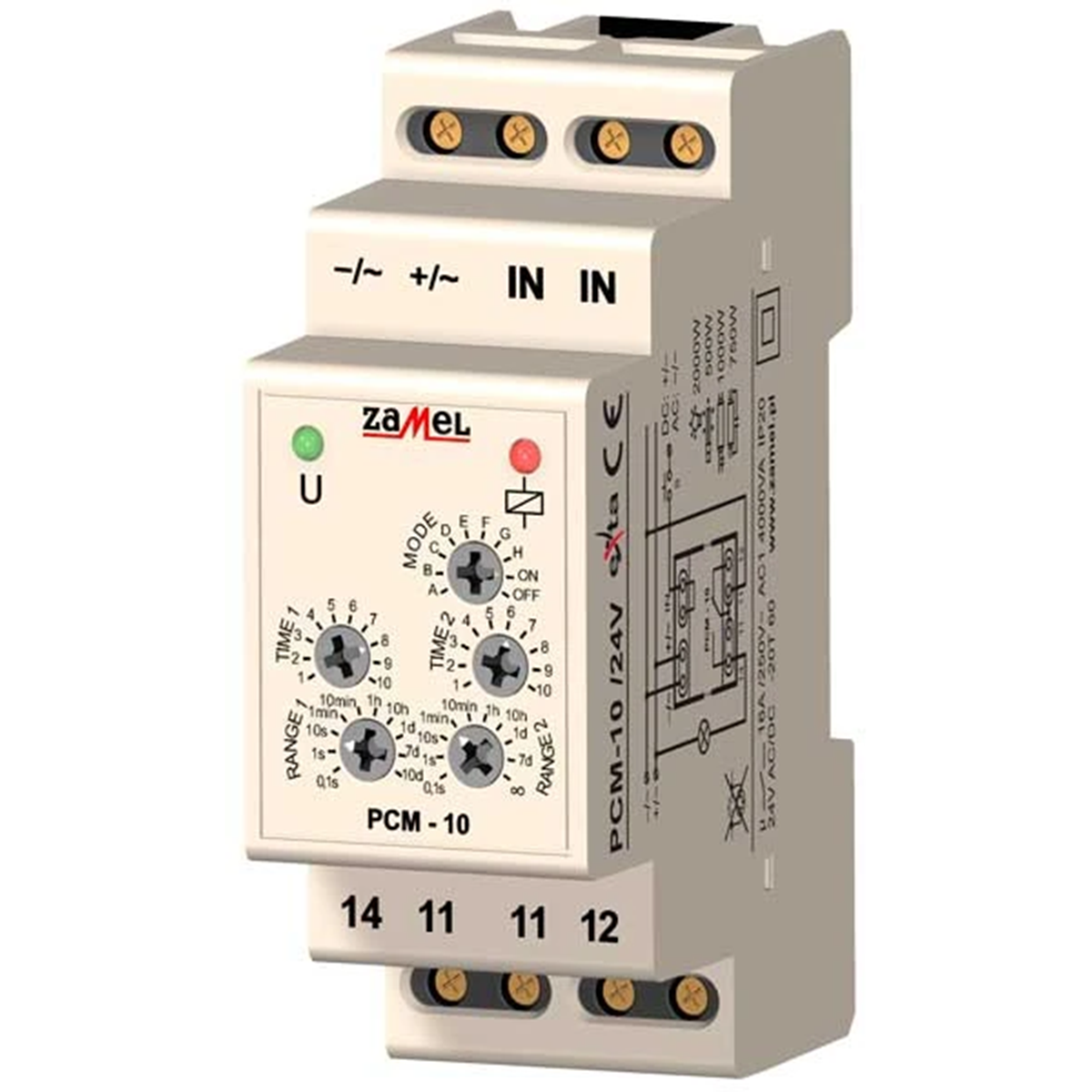

Time relay 24V AC/DC TYPE: PCM-10/24V EXT10000086

local index:
APC006ZAME
Catalog No:
EXT10000086
EAN code:
5903669006213
Manufacturer: ZAMEL
Length [mm]: 66
Maximum relay power [VA]: 4000
Installation: On the TH-35 rail
Price:
40,41 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The PCM-10/24V multifunctional time relay is used to implement time functions in automation and control systems. The system has 10 independent operating modes triggered by the supply voltage or an external trigger impulse (coming from the L or N line). It is characterized by a very wide setting range of two times t1 and t2 as well as permanent on and off functions. The system performs the current change of the setting of the operating mode and times.

Technical data

  • Length [mm]
    66
  • Installation
    On the TH-35 rail
  • Relay current [A]
    16
  • Width [mm]
    35
  • Height [mm]
    90
  • Maximum relay power [VA]
    4000
  • Rated voltage [V]
    24
  • Family
    EXTA
  • Type
    Relays
  • PKWIU
    27.12.40.0
