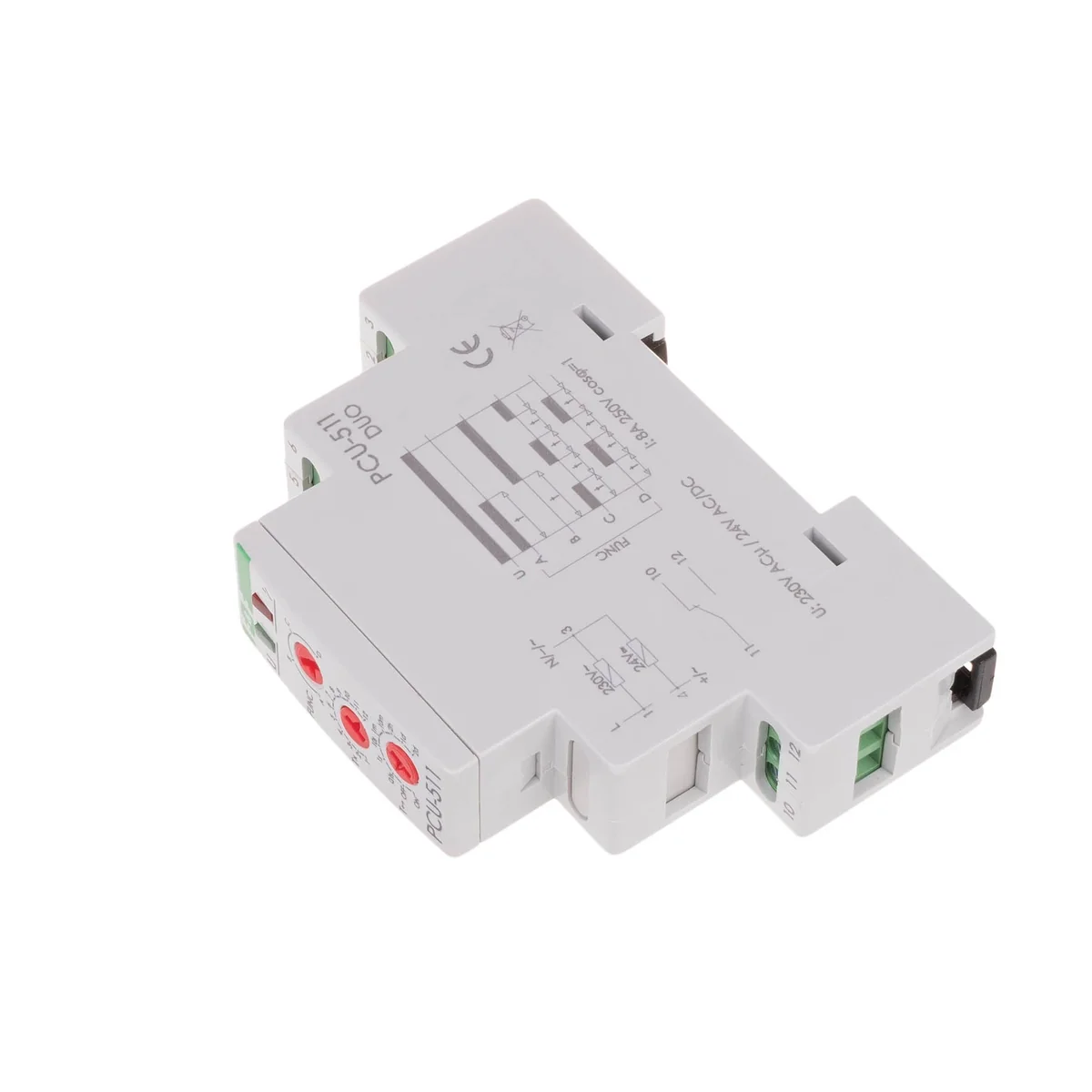

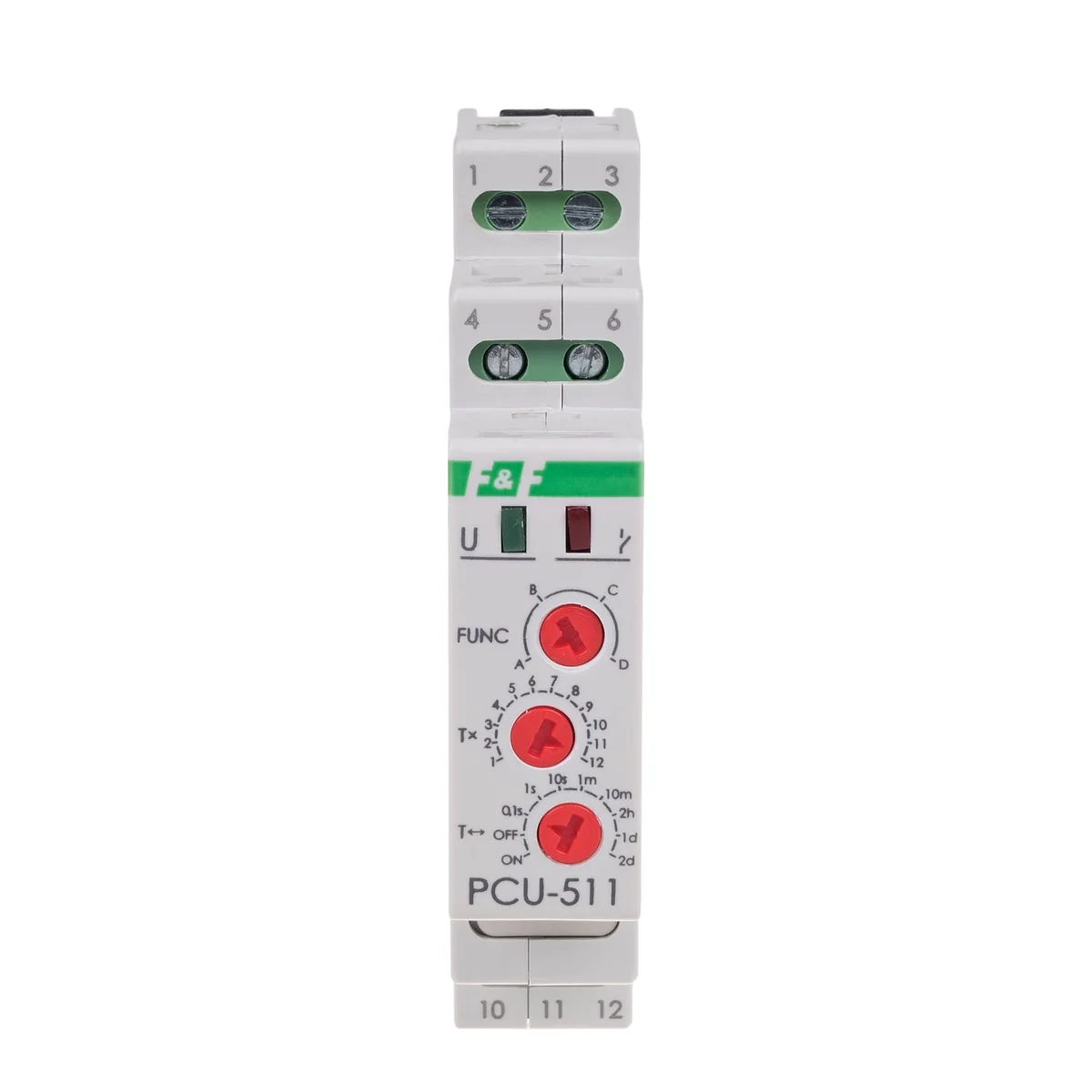

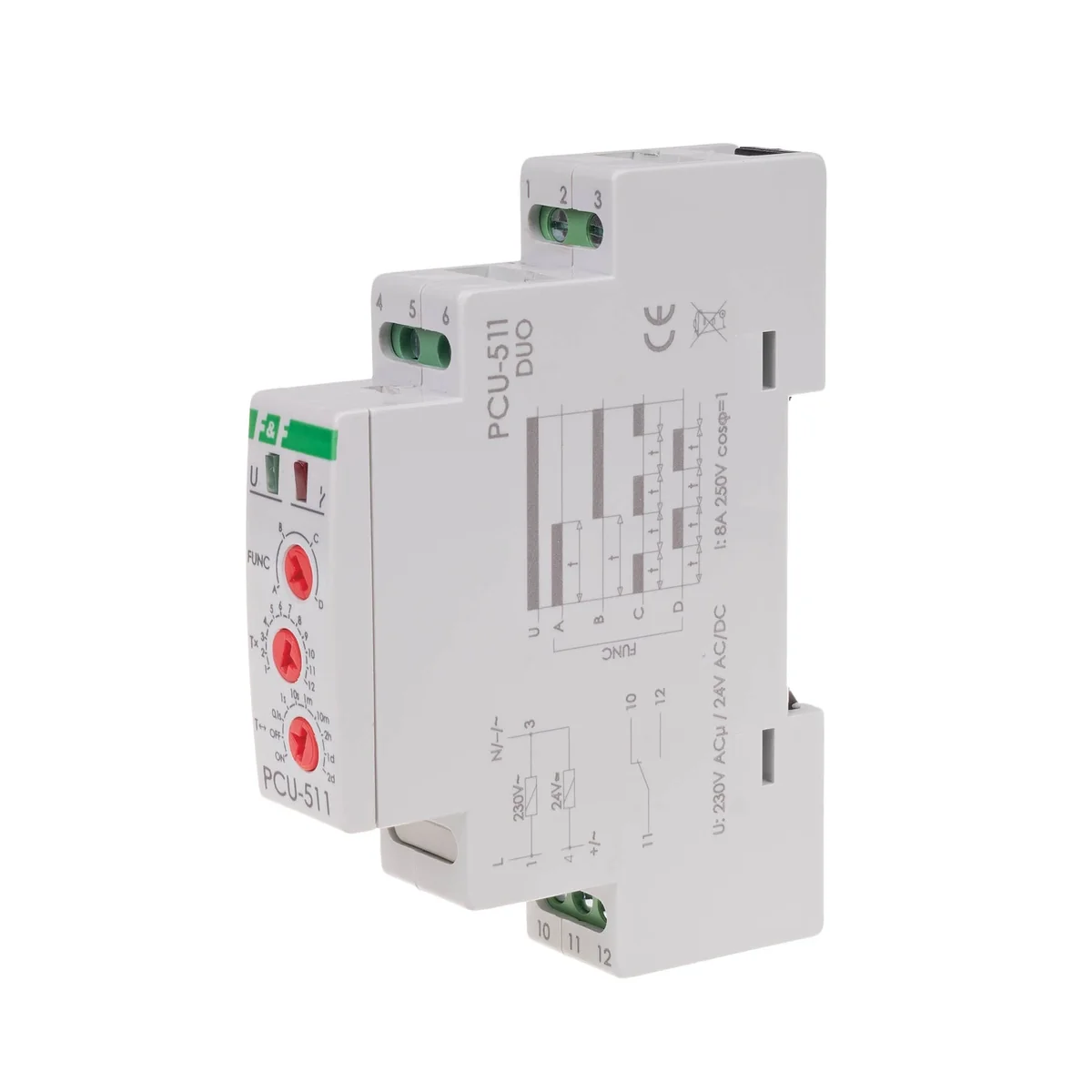

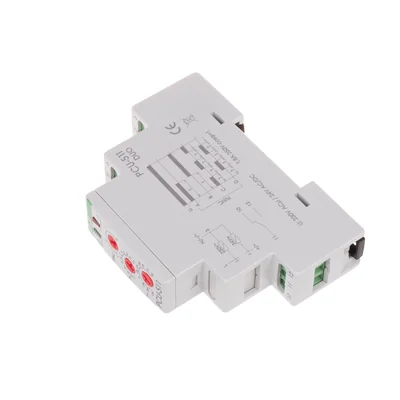

Time relay 230VAC/24VAC/DC PCU-511DUO
local index:
APC058FIFQ
Catalog number:
PCU-511DUO
EAN code:
5908312592495
Price:
140,55 zł
gross / pcs.
(including VAT 23%)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
Time relays are used for time control in industrial and home automation systems (e.g. ventilation, heating, lighting, signaling, etc.).
Technical data
-
Number of contacts0NO 0NC
-
load current [A]<8
-
Working temperature [°C]-25/50
-
Working time setting range0.1s-576h
-
Package height [mm]150
-
Package weight [kg]0.2
-
Operating time setting range [s]0.1s-576h
-
Power [W]0.8
-
SignalingLED green/red
-
Dimensions1 module (18mm)
-
Power [V]230 AC, 24 AC/DC
-
Package width [mm]20
-
Tripping delay [ms]<50
-
PKWIU26.52.24.0
Other technical data
-
Type of electric connectionScrew connection
-
Suitable for DIN rail (top hat rail) mountingYes
-
Pluggable on auxiliary contact blockNo
-
Function delay on de-energizationYes
-
Function floating contact on de-energizationYes
-
Function pulse shapingNo
-
Function flashing, starting with pulse, fixed timeNo
-
Clock function, starting with pulse, variableNo
-
Remote operation possibleNo
-
Rated control supply voltage AC 50 Hz195 ... 253 V
-
Voltage type for actuatingAC/DC
-
Number of outputs, delayed, normally open contact0
-
With semiconductor outputNo
-
Operating voltage AC 50 Hz195 ... 253 V
-
Voltage type (operating voltage)AC/DC
-
Max. starting current8 A
-
Width18 mm
-
Depth65 mm
-
Complete with socketYes
-
Suitable for front mountingNo
-
Function delay-on energizationYes
-
Function floating contact on energizationYes
-
Function star-deltaNo
-
Function flashing, starting with pause, fixed timeNo
-
Clock function, starting with pause, variableNo
-
Time range0.1 ... 2073600 s
-
Suitable as remote controlNo
-
Rated control supply voltage DC21 ... 27 V
-
Number of outputs, delayed, normally closed contact0
-
Number of outputs, delayed, change-over contact1
-
Material contactSilver tin oxide (AgSnO2)
-
Operating voltage DC21 ... 27 V
-
Nominal current8 A
-
Degree of protection (IP)IP20
-
Height90 mm
Manufacturer details
-
ManufacturerF&F Filipowski S.K.
-
Address95-200 Pabianice Konstantynowska 79/81 Polska
-
E-mail
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,068 |
| Width (m) | 0,019 |
| Length (m) | 0,095 |
| Depth (m) | 0,070 |
