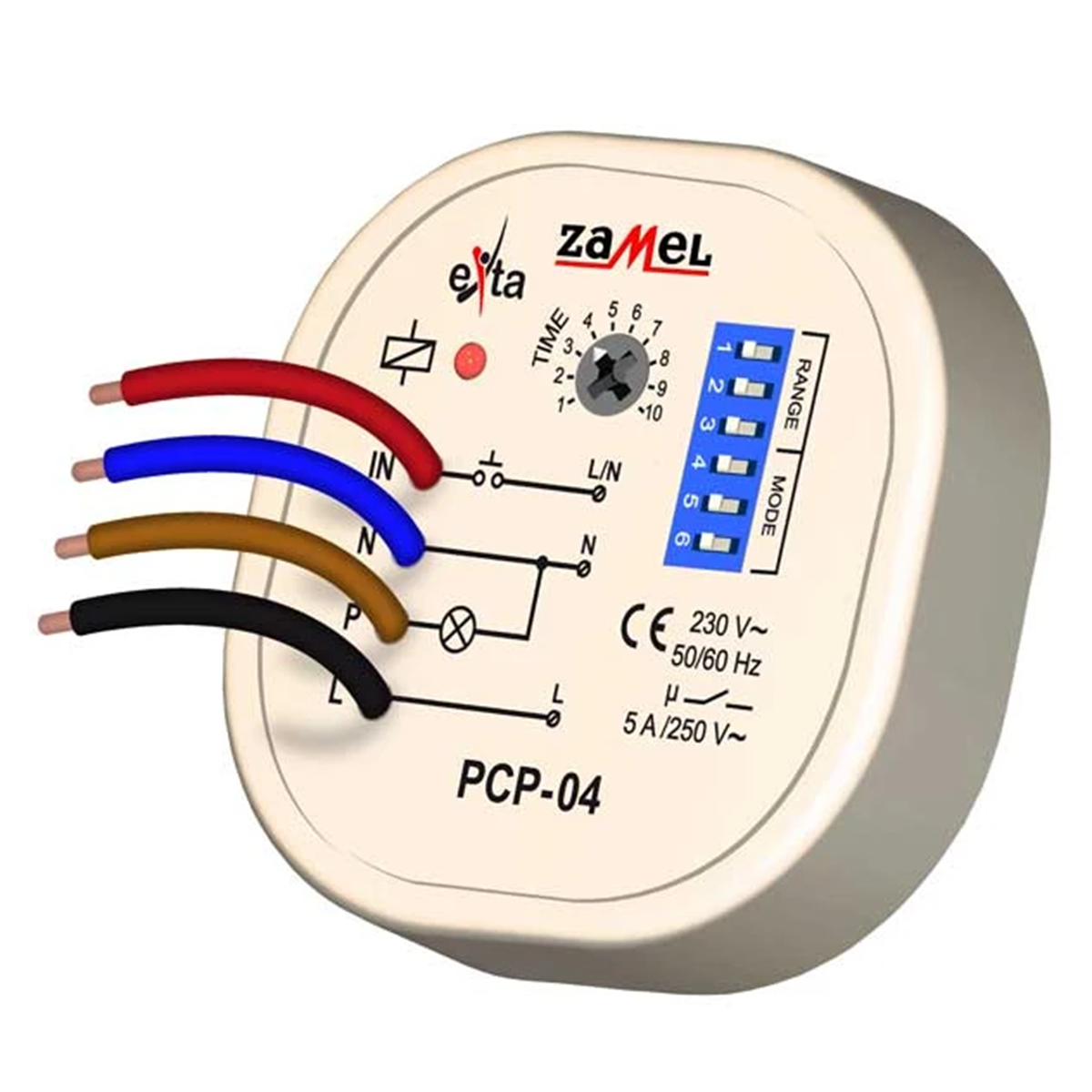

Time relay 230V AC TYPE: PCP-04 EXT10000088

The PCP-04 multifunctional relay is used to implement time functions in automation and control systems. The relay is triggered by the supply voltage and additionally by the control input. PCP-04 has 8 independent operating modes triggered by the supply voltage or an external trigger impulse (coming from the L or N line). The time relay has a very wide range of time settings. The device has a relay status indicator realized by means of a LED diode. The design of the device allows for installation in a 60mm junction box. Time setting range t: discrete 0.1 - 1 s; discreetly 1 - 10 s; discreetly 0.2 - 1.7 min; discreetly 1 - 10 min; discreetly 0.2 - 1.7 h; discreetly 1 - 10 h; discreetly 0.4 - 4.2 days; discreetly 1 - 10 days
