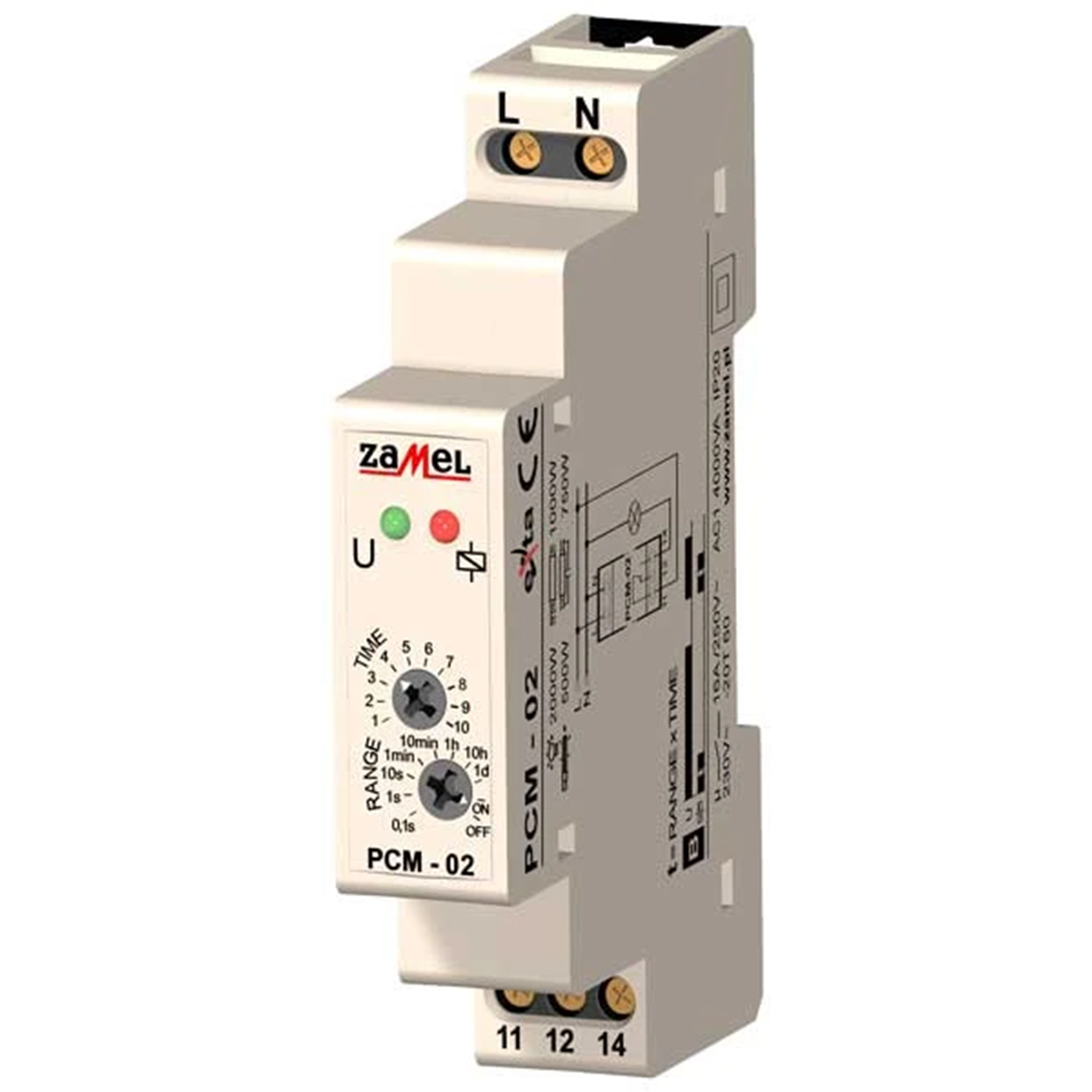

Time relay 230V AC TYPE: PCM-02 EXT10000075

local index:
APC003ZAME
Catalog No:
EXT10000075
EAN code:
5903669021988
Manufacturer: ZAMEL
Length [mm]: 66
Maximum relay power [VA]: 4000
Rated voltage [V]: 230
Price:
29,72 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The single-function time relay PCM02 is used to implement the function of delayed switching off (aversive) in automation and control systems. The relay is triggered by the supply voltage. It is characterized by a very wide range of time settings from 0.1 second to 10 days. Additional ON/OFF functions enable permanent switching on or off of the receiver. The system has indicators of: supply voltage, relay status and time measurement - realized by means of LEDs. Time setting range t: discrete 0.1 ÷ 1 s; discrete 1 ÷ 10 s; discreetly 0.2 ÷ 1.7 min; discreetly 1 ÷ 10 min; discreetly 0.2 ÷ 1.7 h; discreetly 1 ÷ 10 h; discreetly 0.4 ÷ 4.2 days; discreetly 1 ÷ 10 days.

Technical data

  • Length [mm]
    66
  • Rated voltage [V]
    230
  • Family
    EXTA
  • Width [mm]
    17.5
  • Height [mm]
    90
  • Maximum relay power [VA]
    4000
  • Relay current [A]
    16
  • Contact
    1NO/NC
  • Type
    Relays
  • PKWIU
    27.12.40.0
