el12 Automation Relays and drivers Time relays
el12 sale Get in the game - HAGER

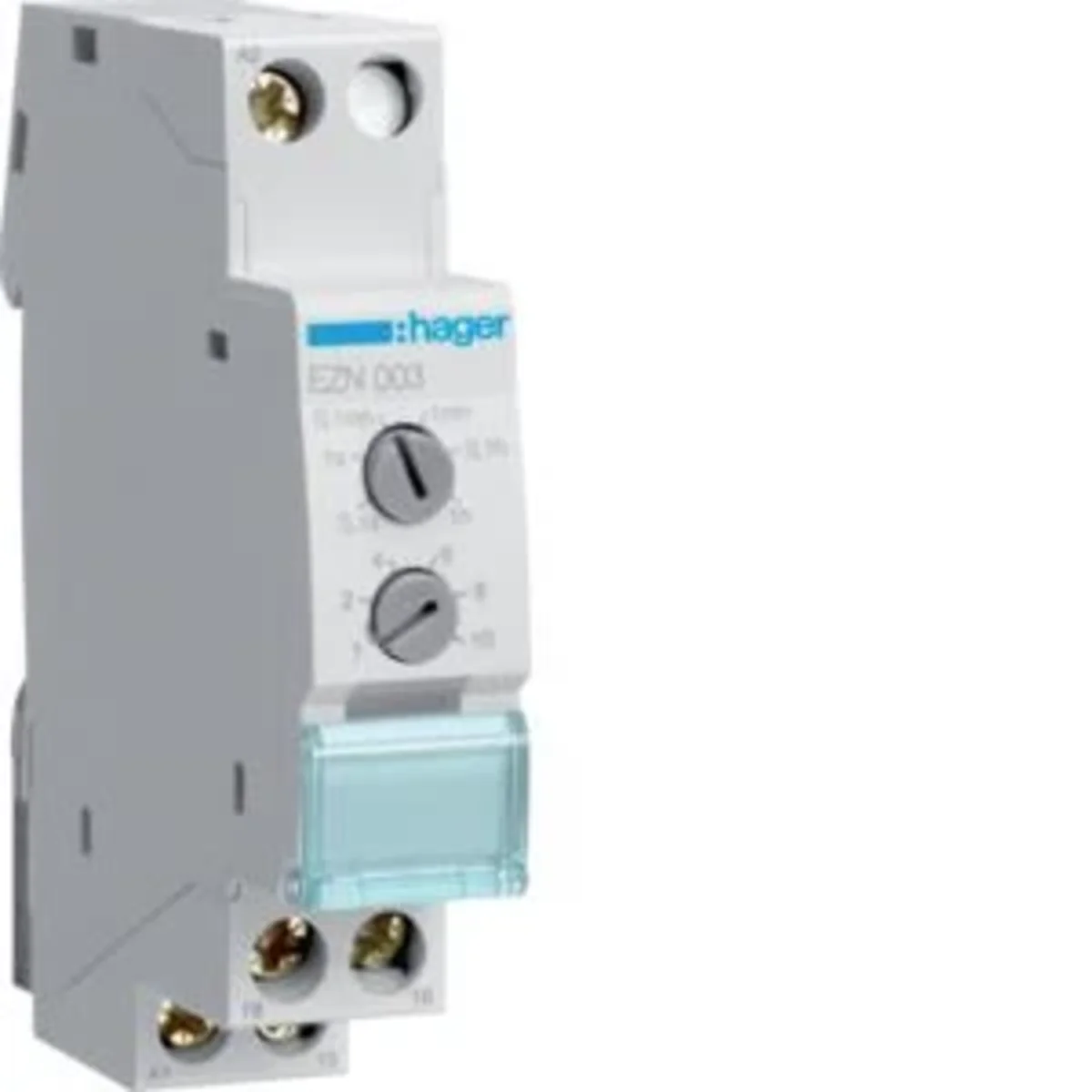

Time relay 12-230VAC/12-48VDC 1P 8A step EZN003

local index:
APC010HAGE
Catalog number:
EZN003
EAN code:
3250612469970
Time relay 12-230VAC/12-48VDC 1P 8A step
Time relay 12-230VAC/12-48VDC 1P 8A step

Click on the photo to enlarge

Manufacturer: HAGER
Rated frequency [Hz]: 60
Length [mm]: 64
Depth [mm]: 58
See full description
Price:
984,00 zł
gross / pcs.
(including VAT 23%)
Out of stock
Add to inquiry
Print
Product description Technical data Manufacturer details Files to download

Product description

Time relay 12-230VAC/12-48VDC 1P 8A step

Technical data

  • Rated frequency [Hz]
    60
  • Depth [mm]
    58
  • Installation
    On the TH-35 rail
  • Contact type
    1 switch
  • power loss [W]
    2
  • Connection type
    With a screw
  • Operating temperature range [°C]
    from -10 to 50
  • Number of modules
    1
  • Connection type
    With screw terminals
  • Delay time, adjustable
    0.1s - 10h
  • Conductor cross-section (wire) [mm²]
    1.5 - 10
  • Length [mm]
    64
  • Input power [VA]
    15
  • Supply voltage [V]
    12, 24, 48, 230
  • Level of security
    IP40
  • Width [mm]
    17.5
  • Height [mm]
    85
  • Rated switching voltage [V]
    12/230
  • Maximum bulb power [W]
    450
  • storage temperature [°C]
    from -40 to 70
  • Wire cross-section (cord) [mm²]
    1 - 6
  • PKWIU
    27.12.24.0

Other technical data

  • Type of excitation
    Analogue with single function
  • 1st interval unit
    Seconds/hours
  • 2nd interval unit
    Seconds/hours
  • Width in number of modular spacings
    1
  • Number of changeover switches
    1
  • Type of control voltage 1
    AC
  • Control voltage 2
    12 ... 48 V
  • Frequency control voltage 2
    50 ... 60 Hz
  • Voltage type (supply voltage)
    AC/DC
  • Switch capacity incandescent lamps
    450 W
  • Function
    On-switch wiping relay
  • 1st interval
    0.1 ... 10
  • 2nd interval
    0.1 ... 10
  • Built-in height
    58 mm
  • Control voltage 1
    230 ... 230 V
  • Frequency control voltage 1
    50 ... 60 Hz
  • Type of control voltage 2
    AC/DC
  • Supply voltage
    195 ... 253 V
  • Nominal switching current at 250 V AC
    8 A
  • Switch capacity fluorescent lamp inductive
    500 VA

Manufacturer details

  • Manufacturer
    HAGER Polska Sp. z o. o.
  • Address
    43-100 Tychy Fabryczna 10
  • Tax identification number
    6460015532
