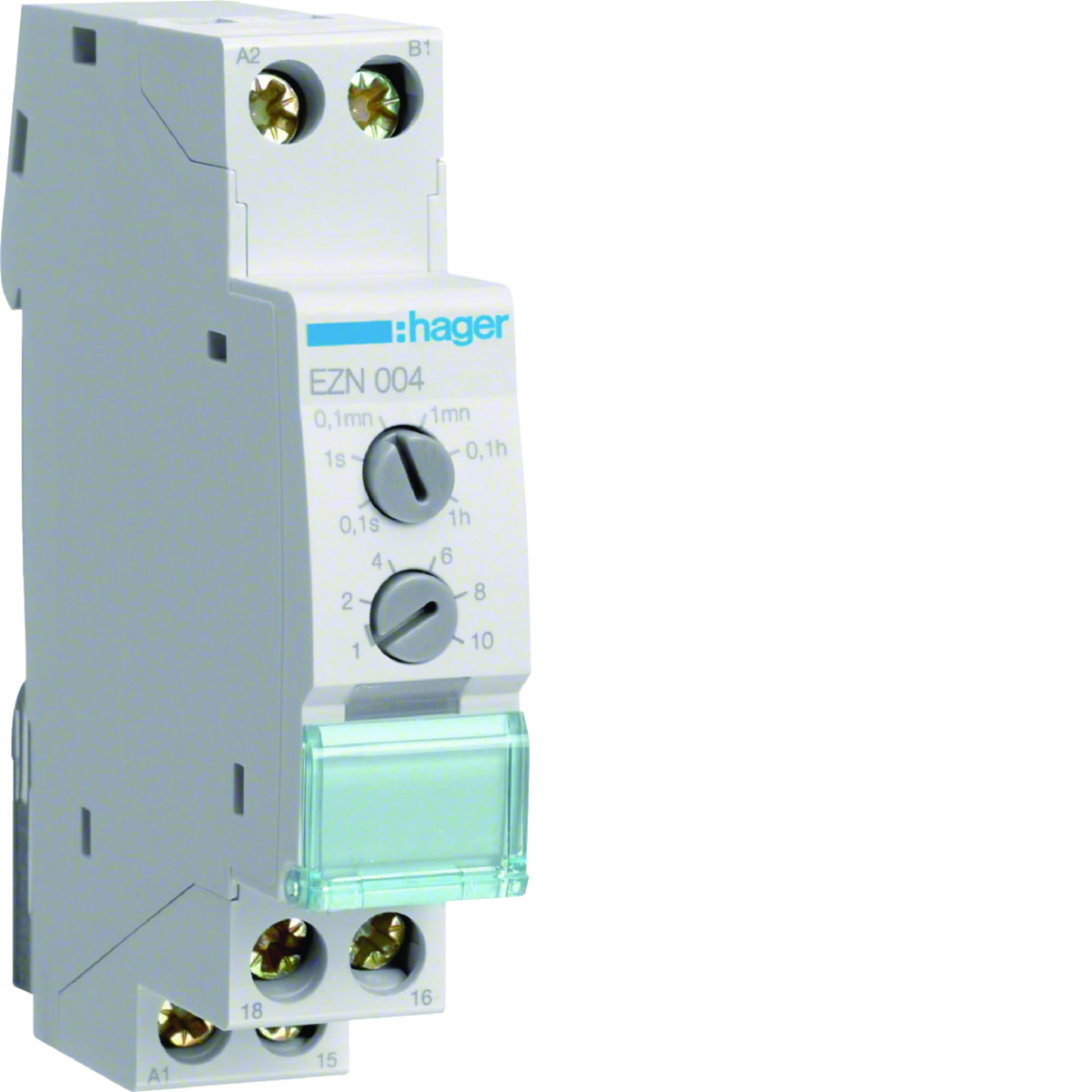

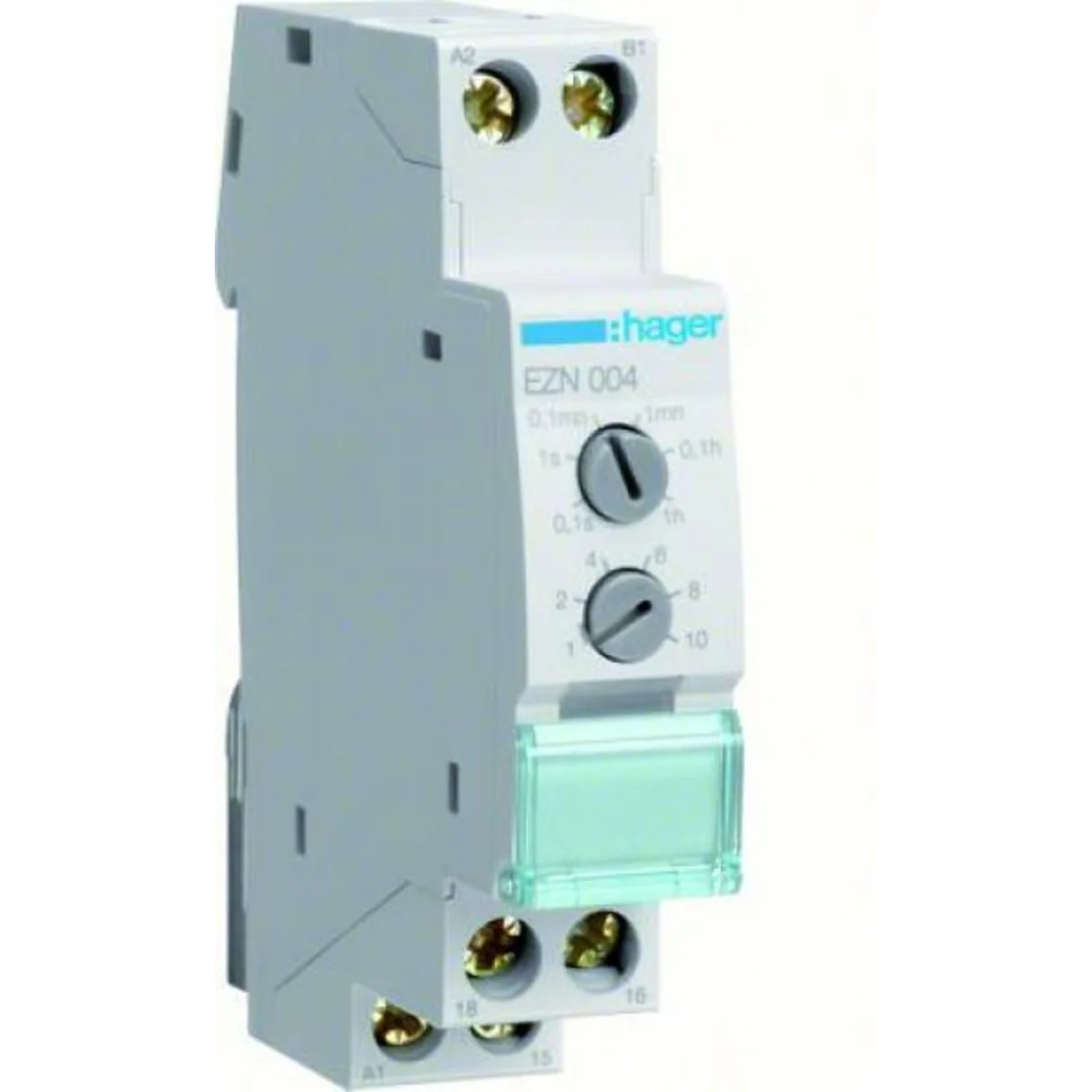

Time relay 12-230VAC/12-48VDC 1P 8A impulse EZN004

local index:
APC034HAGE
Catalog No:
EZN004
EAN code:
3250612469963
Manufacturer: HAGER
Number of modules: 1
Maximum power [W]: 450
Installation: DIN rail
Price:
125,83 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Universal time relays for time control functions in lighting, ventilation, air-conditioning and other circuits.
• time setting using rotary potentiometer
• multifunctional relay with 8 different functions - selectable with a potentiometer located on the side of the housing
• indication of current work states by LED
Data for all time relays:
Control voltage:
12 to 230V AC 50/60Hz
12 to 48V DC
Output relay parameters:
1NO/1NC 8A/250V AC-1
Time setting:
0.1 s to 10 h (steps, combination of time unit and its multiplier)

Technical data

  • Number of modules
    1
  • Installation
    DIN rail
  • Breaking capacity
    AC1
  • PKWIU
    26.52.24.0
  • Maximum power [W]
    450
  • Level of security
    IP40
  • Number of modules
    1

Other technical data

  • Type of excitation
    Analogue with single function
  • 1st interval unit
    Seconds/hours
  • 2nd interval unit
    Seconds/hours
  • Width in number of modular spacings
    1
  • Number of changeover switches
    1
  • Type of control voltage 1
    AC
  • Control voltage 2
    12 ... 48 V
  • Frequency control voltage 2
    50 ... 60 Hz
  • Voltage type (supply voltage)
    AC/DC
  • Switch capacity incandescent lamps
    450 W

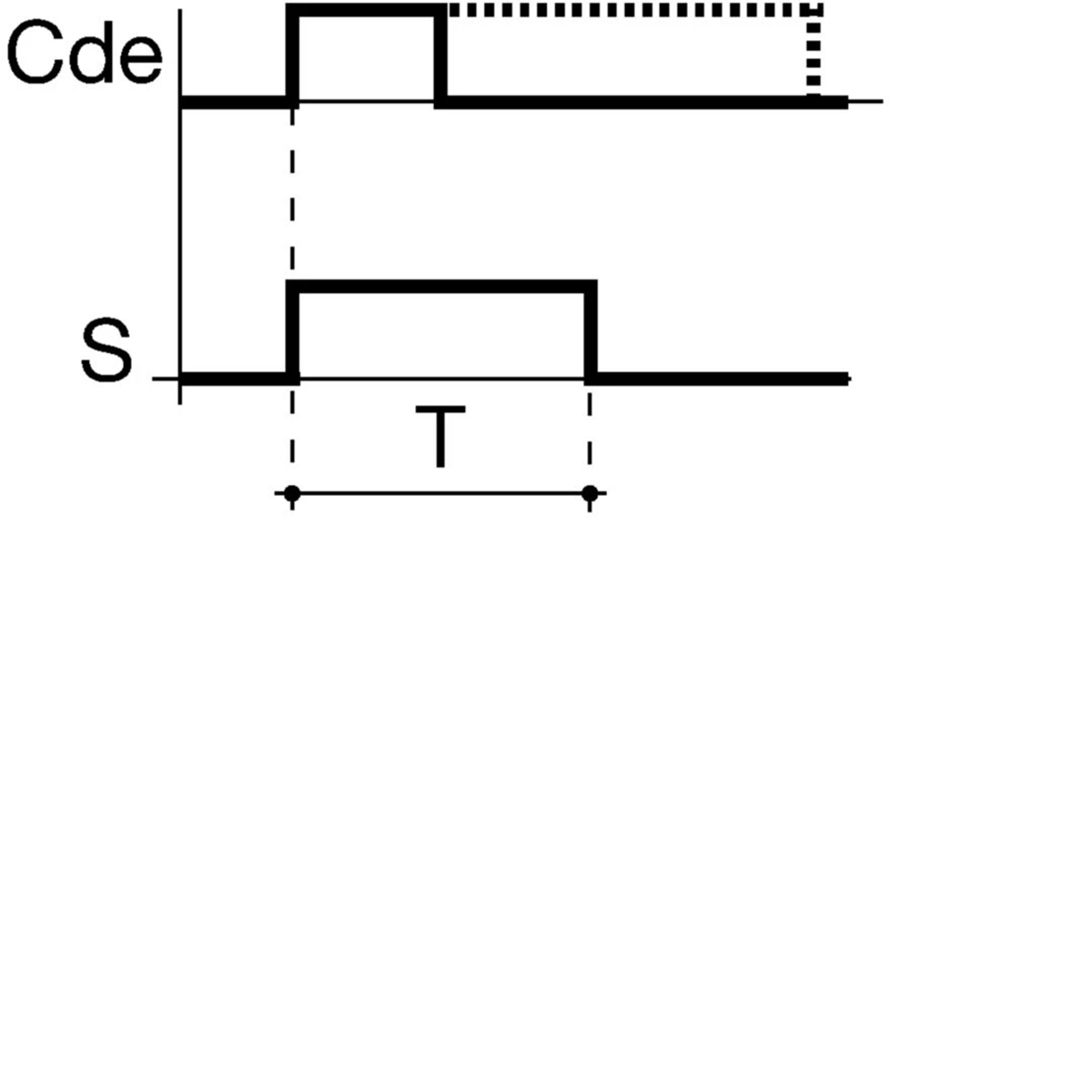

  • Function
    Pulse former
  • 1st interval
    0.1 ... 10
  • 2nd interval
    0.1 ... 10
  • Built-in height
    58 mm
  • Control voltage 1
    230 ... 230 V
  • Frequency control voltage 1
    50 ... 60 Hz
  • Type of control voltage 2
    AC/DC
  • Supply voltage
    195 ... 253 V
  • Nominal switching current at 250 V AC
    8 A
  • Switch capacity fluorescent lamp inductive
    500 VA

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 108 pcs. 2592 pcs.
Weight (kg) 0,089 0,090 10,145 266,480
Width (m) 0,018 0,080 0,315 0,800
Length (m) 0,085 0,025 0,220 1,050
Depth (m) 0,064 0,095 0,360 1,200
