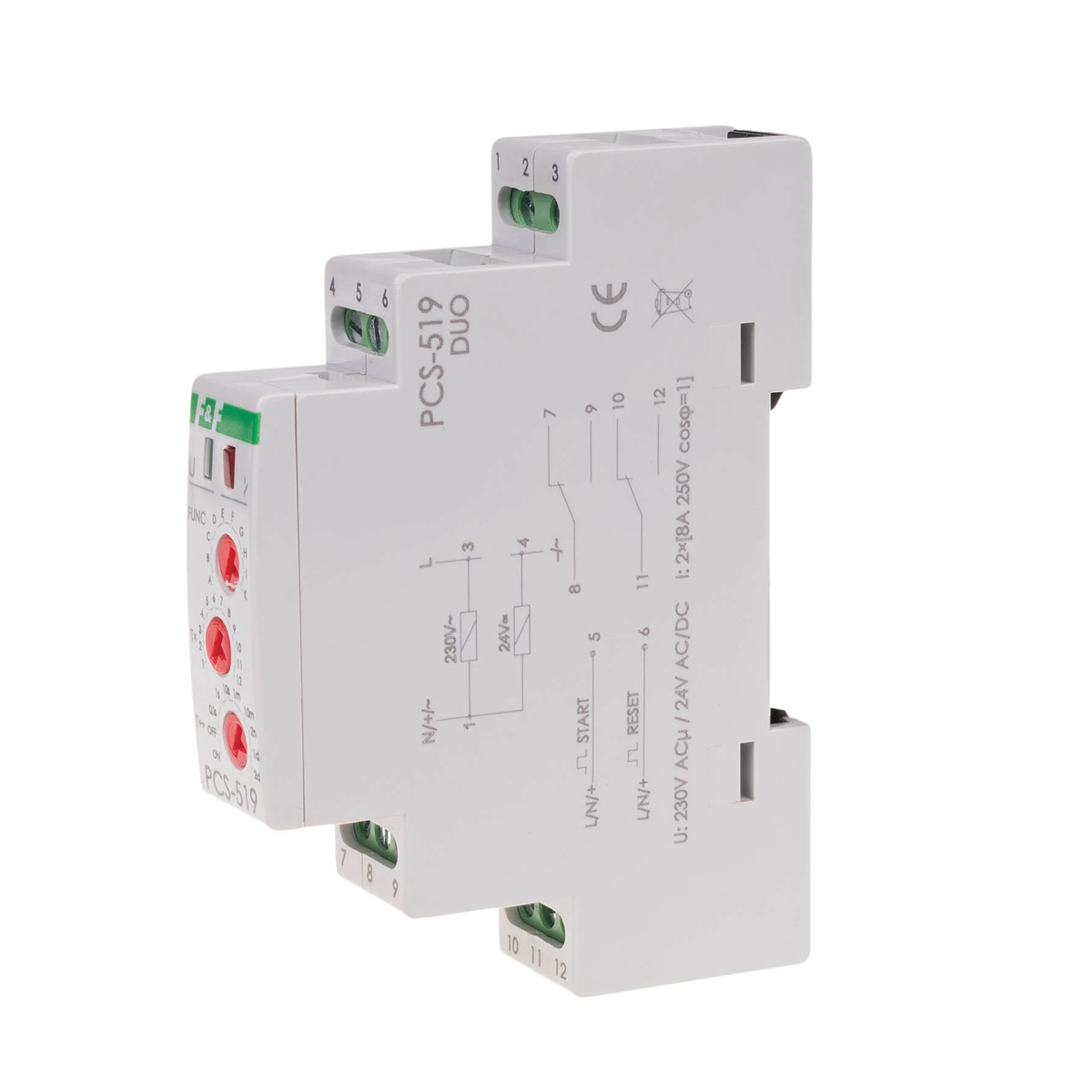

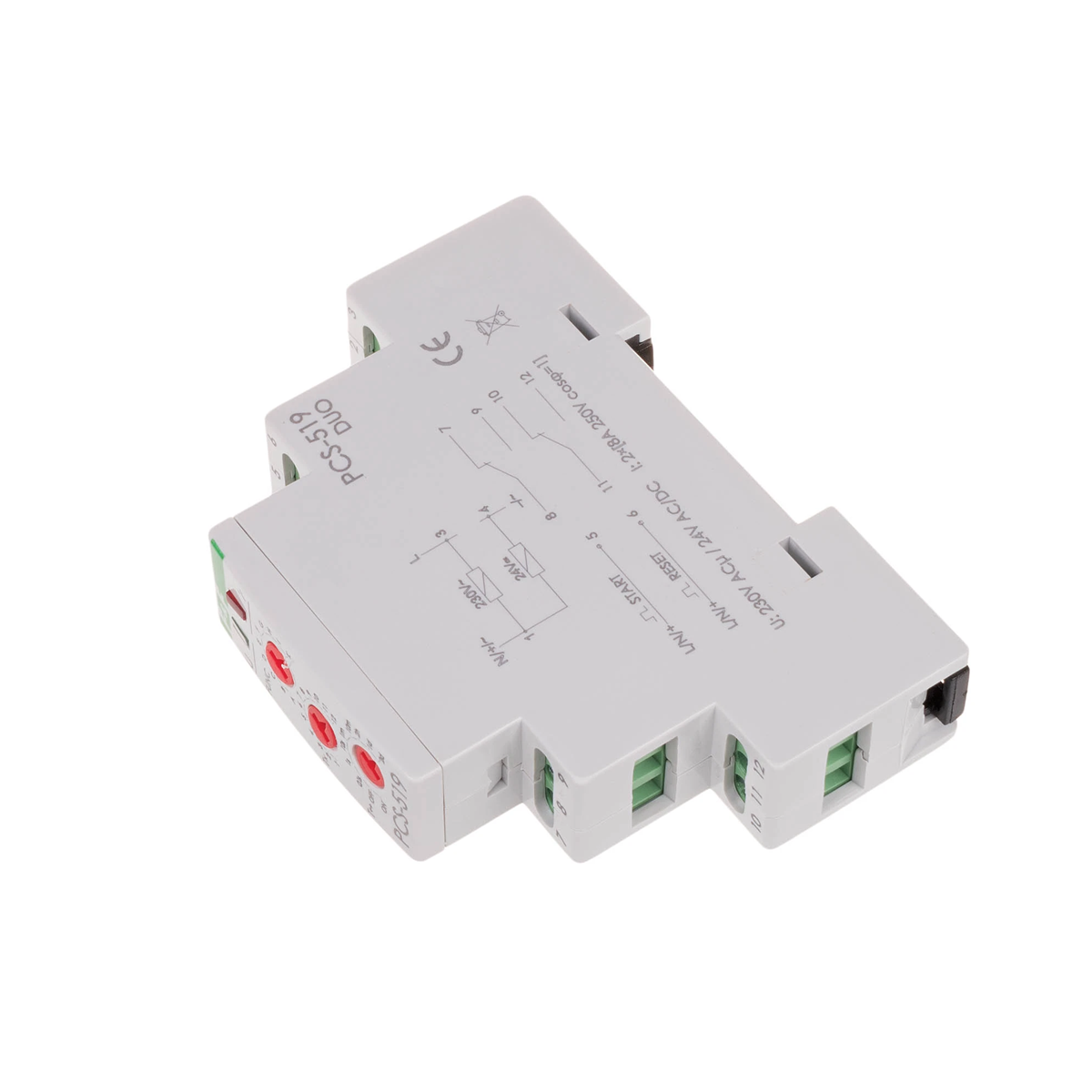

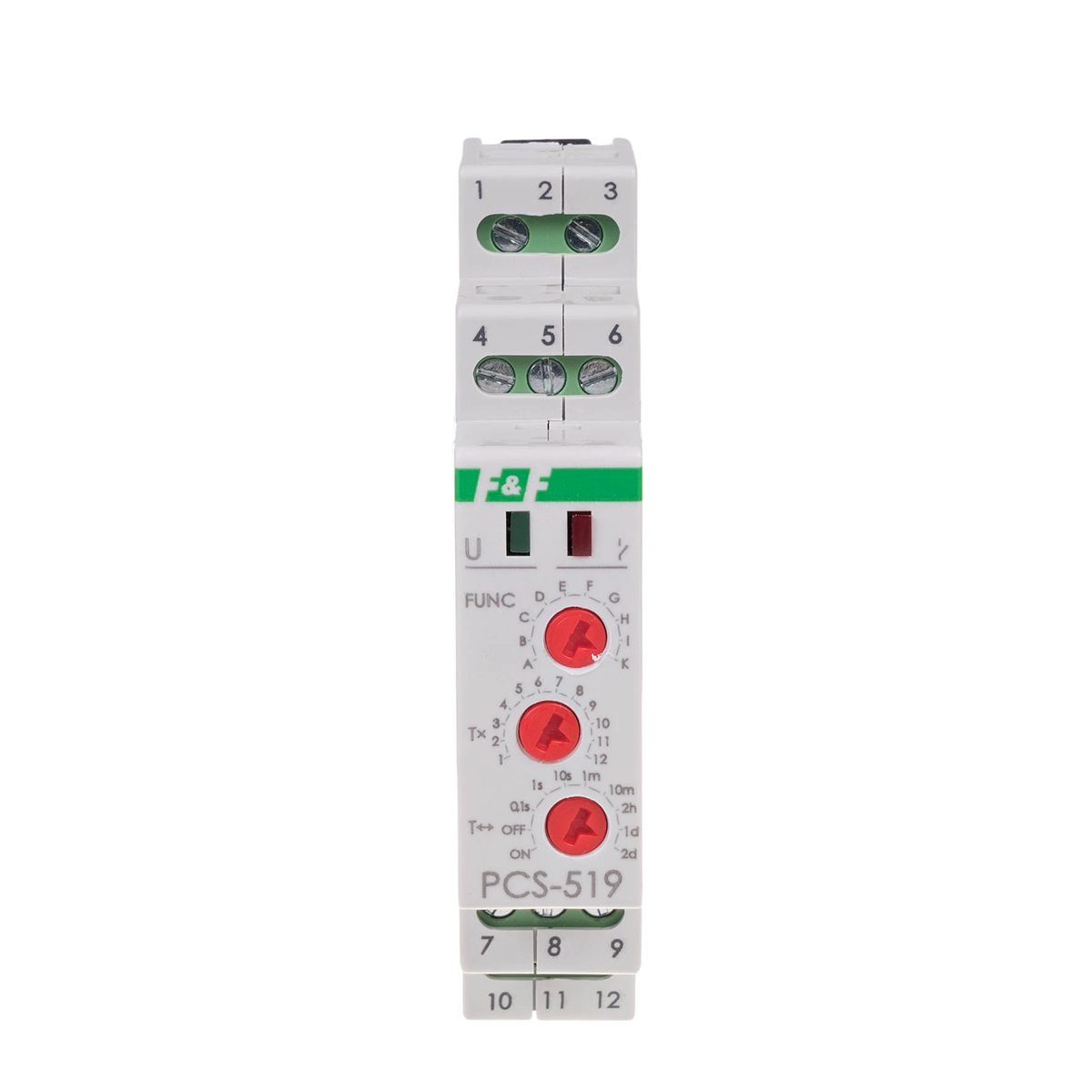

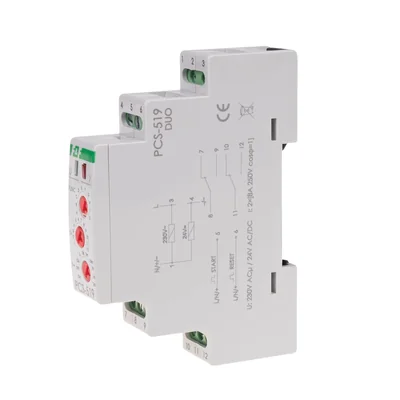

Time relay 10-functions 2P contacts Universal 24V or 230V PCS-519 DUO PCS-519DUO

local index:
APC003FIFQ
Catalog No:
PCS-519DUO
EAN code:
5908312593935
Manufacturer: F&F
Power [W]: 0.8
Installation: On the TH-35 rail
Rated voltage [V]: 230
Price:
39,11 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Purpose
Time relays are used for time control in industrial and home automation systems (e.g. ventilation, heating, lighting, signaling, etc.). Operation
The relay performs the selected operation function in accordance with the set time regime. The selection of a specific time range and the relay operation function consists in setting the appropriate combination of rotary code switches. Note!
* Applying the RESET voltage during the execution of the function results in:
- for the functions A, B, C, D, F, the operation mode is performed from the beginning.
- for the functions F, G, H , I return the relay to its initial state and wait for the START signal.
- for the K function, the relay contact is permanently switched on in position 11-12.
* Setting the rotary switch of the time range in the position:
* When the power supply is on, the system does not react to changing the time range settings.
* Operation with the newly set time range takes place after the power is turned off and on again.
* When the power supply is on, within the set time range, it is possible to smoothly adjust the time in time setting value range.

< td>Separated 2P
PCS-519 contact



PCS-519 contact 2P
separated

Technical data

  • Power [W]
    0.8
  • Rated voltage [V]
    230
  • Tripping delay [msec]
    <50
  • connection
    2.5mm screw terminals
  • Power indication
    LED green
  • Dimensions
    1 module (18mm)
  • Power [V]
    230/24
  • Package width [mm]
    20
  • Operating time setting range [s]
    0.1sec-24days
  • Installation
    On the TH-35 rail
  • DC rated voltage [V]
    24
  • load current [A]
    2x8
  • Contact status indication
    red LED
  • Working temperature [°C]
    -25-50
  • Working time setting range
    0.1sec-24days
  • Package height [mm]
    150
  • Package weight [kg]
    0.1
  • PKWIU
    26.52.24.0

Other technical data

  • Type of excitation
    Analogue with multi function
  • 1st interval unit
    Seconds/minutes
  • Number of changeover switches
    2
  • Supply voltage
    230 ... 24 V
  • Nominal switching current at 250 V AC
    8 A
  • Switch capacity fluorescent lamp DUO
    550 VA
  • Switch capacity fluorescent lamp inductive
    550 VA
  • Function
    Multi function
  • Mounting method
    DIN rail
  • Type of control voltage 1
    AC/DC
  • Voltage type (supply voltage)
    AC/DC
  • Switch capacity incandescent lamps
    1100 W
  • Switch capacity fluorescent lamp parallel
    300 VA

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,084
Width (m) 0,019
Length (m) 0,095
Depth (m) 0,070
