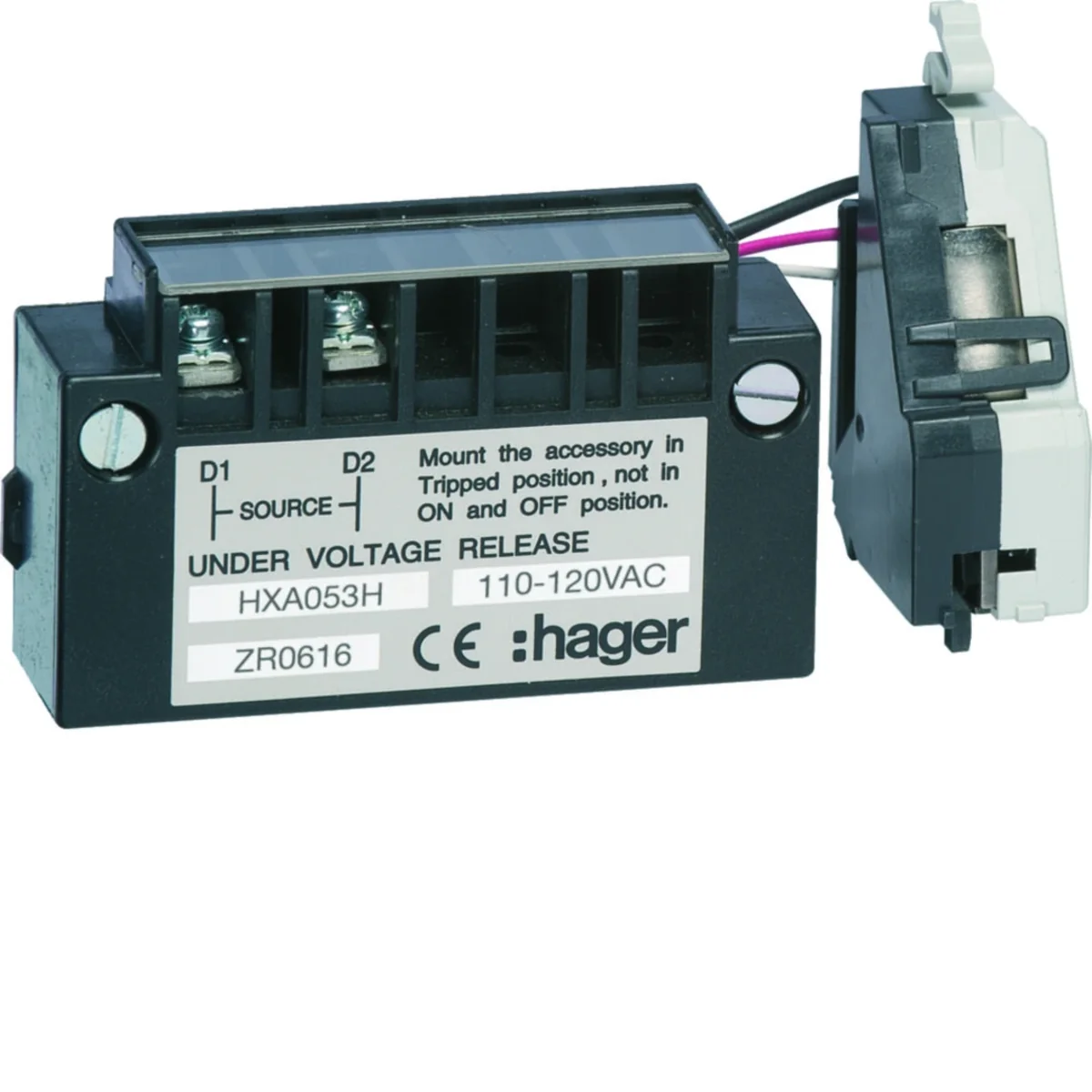

Time delay undervoltage release x160-x250 110VAC HXA053H

local index:
ALA164HAGE
Catalog No:
HXA053H
EAN code:
3250613346553
Manufacturer: HAGER
Maximum input power [VA]: 1.4
Level of security: IP4X
power loss [W]: 1.4
Price:
85,83 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Delayed undervoltage release:

  • size: x160-x250
  • rated operational voltage Ue (AC): 110V

Technical data

  • Maximum input power [VA]
    1.4
  • power loss [W]
    1.4
  • Rated switching voltage [V]
    110/120
  • Level of security
    IP4X
  • Connection type
    Quick Connect
  • PKWIU
    27.12.24.0

Other technical data

  • Rated control supply voltage AC 50 Hz
    110 ... 120 V
  • Rated control supply voltage DC
    0 ... 0 V
  • Type of electric connection
    Spring clamp connection
  • Number of contacts as normally closed contact
    0
  • Delayed
    Yes
  • Suitable for off-load switch
    Yes
  • Suitable for overload relay
    No
  • Rated control supply voltage AC 60 Hz
    110 ... 120 V
  • Voltage type for actuating
    AC
  • Number of contacts as normally open contact
    0
  • Number of contacts as change-over contact
    0
  • Suitable for power circuit breaker
    Yes
  • Suitable for motor safety switch
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 864 pcs.
Weight (kg) 0,108 0,150 4,968 119,232
Width (m) 0,060 0,080 0,323 0,800
Length (m) 0,055 0,065 0,219 1,106
Depth (m) 0,090 0,090 0,373 1,200
