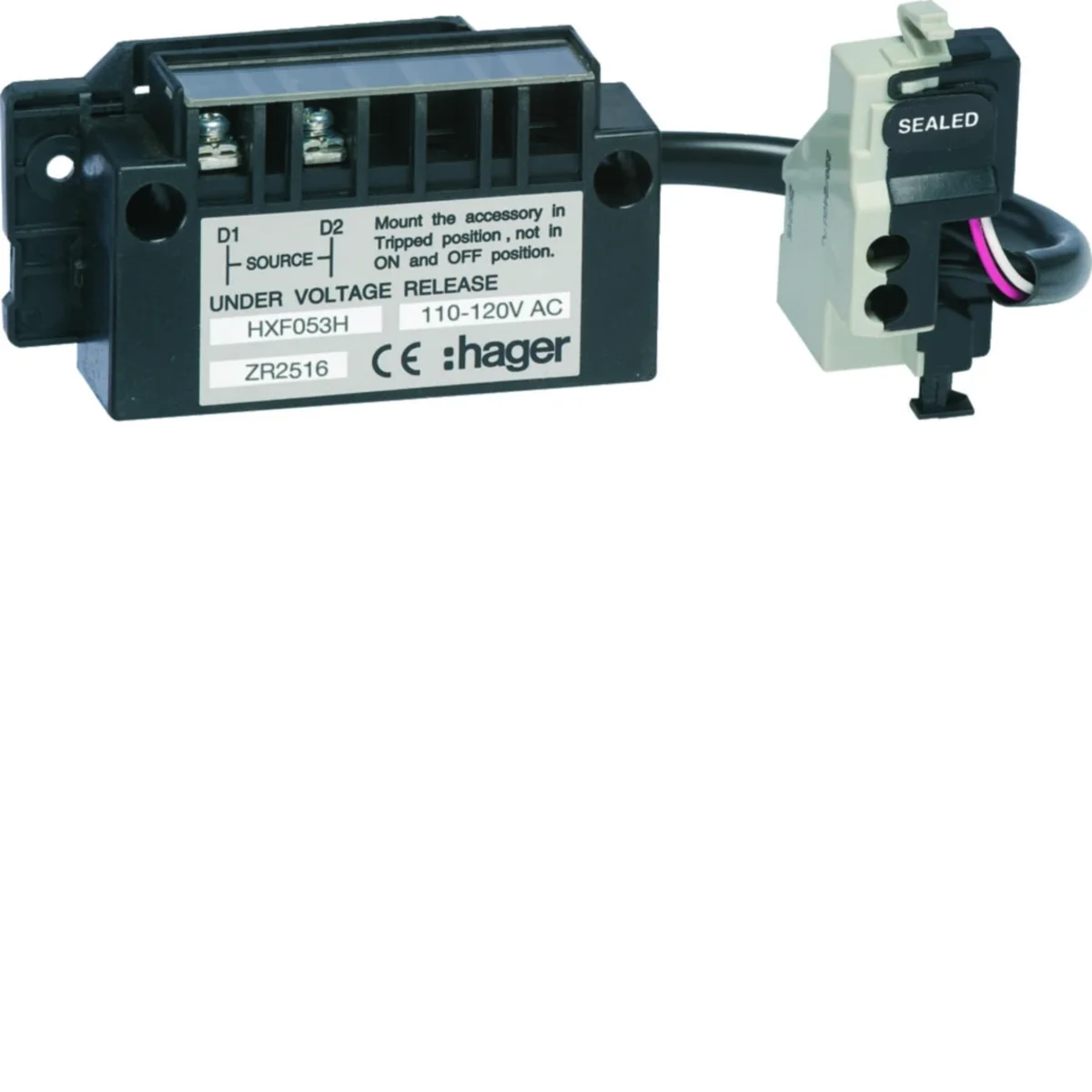

Time delay undervoltage release h800-h1600 4P 110-120VAC HXF053H
local index:
ALA199HAGE
Catalog No:
HXF053H
EAN code:
3250613152383
Price:
223,47 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Time delay undervoltage release:
- size: h800-h1600
- rated operational voltage Ue (AC): 110/120 V
- 4-pole
Technical data
-
Maximum input power [VA]1.6
-
power loss [W]1.6
-
Rated switching voltage [V]110/120
-
Level of securityIP4X
-
Connection typeWith a screw
-
PKWIU27.12.24.0
Other technical data
-
Rated control supply voltage AC 50 Hz110 ... 120 V
-
Rated control supply voltage DC0 ... 0 V
-
Type of electric connectionScrew connection
-
Number of contacts as normally closed contact0
-
DelayedYes
-
Suitable for off-load switchYes
-
Suitable for overload relayNo
-
Rated control supply voltage AC 60 Hz110 ... 120 V
-
Voltage type for actuatingAC
-
Number of contacts as normally open contact0
-
Number of contacts as change-over contact0
-
Suitable for power circuit breakerYes
-
Suitable for motor safety switchNo
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 36 pcs. | 864 pcs. |
| Weight (kg) | 0,108 | 0,136 | 5,275 | 117,504 |
| Width (m) | 0,060 | 0,080 | 0,323 | 0,800 |
| Length (m) | 0,055 | 0,064 | 0,216 | 1,014 |
| Depth (m) | 0,090 | 0,096 | 0,371 | 1,200 |
