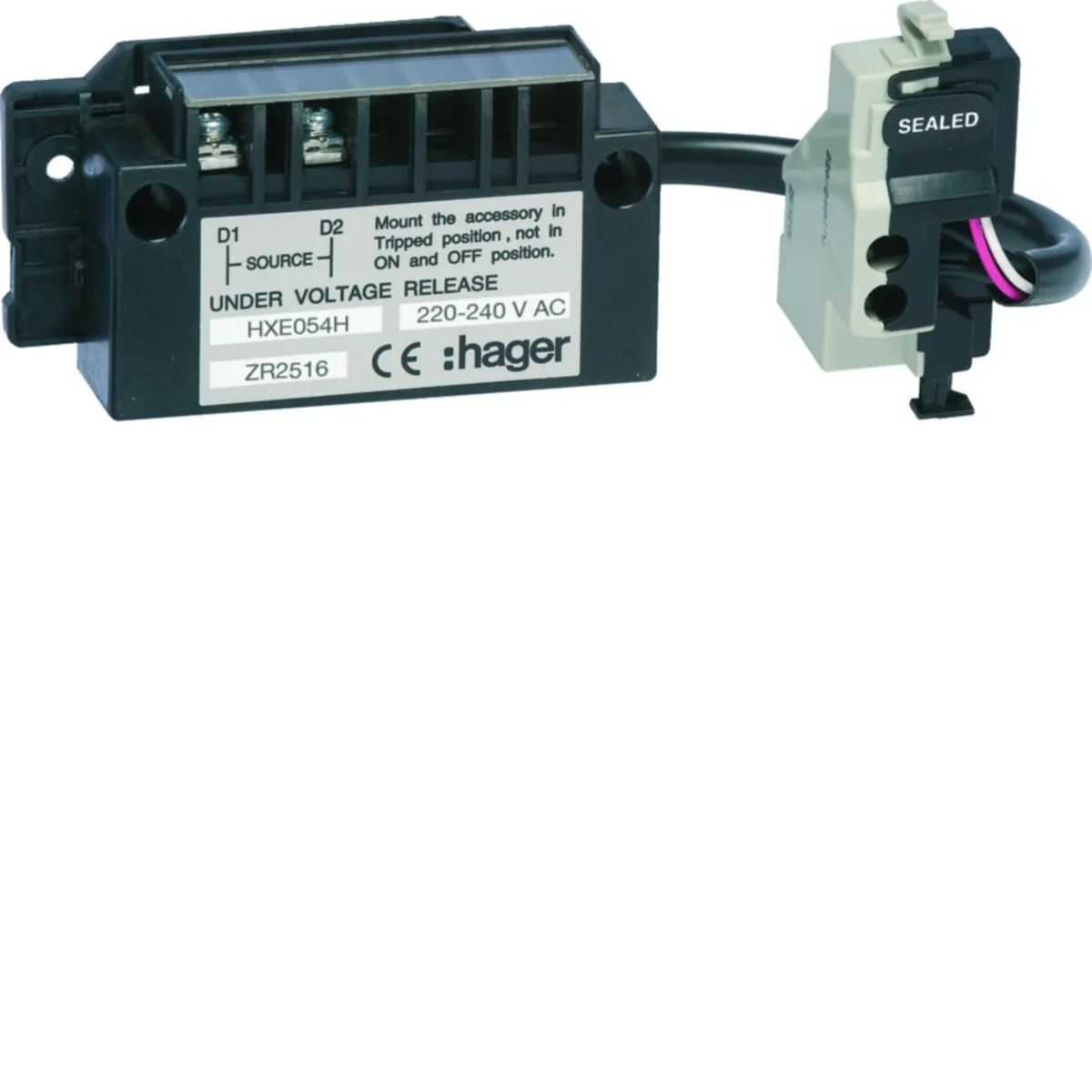

Time delay undervoltage release h800-h1600 3P 220-240VAC HXE054H

local index:
ALA184HAGE
Catalog No:
HXE054H
EAN code:
3250613152253
Manufacturer: HAGER
Maximum input power [VA]: 2.9
Level of security: IP4X
power loss [W]: 2.9
Price:
212,99 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Delayed undervoltage release:

  • size: h800-h1600
  • rated operational voltage Ue (AC): 220-240V
  • 3-pole

Technical data

  • Maximum input power [VA]
    2.9
  • power loss [W]
    2.9
  • Rated switching voltage [V]
    220/240
  • Level of security
    IP4X
  • Connection type
    With a screw
  • PKWIU
    27.12.24.0

Other technical data

  • Rated control supply voltage AC 50 Hz
    220 ... 240 V
  • Rated control supply voltage DC
    0 ... 0 V
  • Type of electric connection
    Screw connection
  • Number of contacts as normally closed contact
    0
  • Delayed
    Yes
  • Suitable for off-load switch
    Yes
  • Suitable for overload relay
    No
  • Rated control supply voltage AC 60 Hz
    220 ... 240 V
  • Voltage type for actuating
    AC
  • Number of contacts as normally open contact
    0
  • Number of contacts as change-over contact
    0
  • Suitable for power circuit breaker
    Yes
  • Suitable for motor safety switch
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 864 pcs.
Weight (kg) 0,108 0,140 5,420 153,080
Width (m) 0,060 0,080 0,315 0,800
Length (m) 0,055 0,065 0,215 1,050
Depth (m) 0,090 0,090 0,360 1,200
