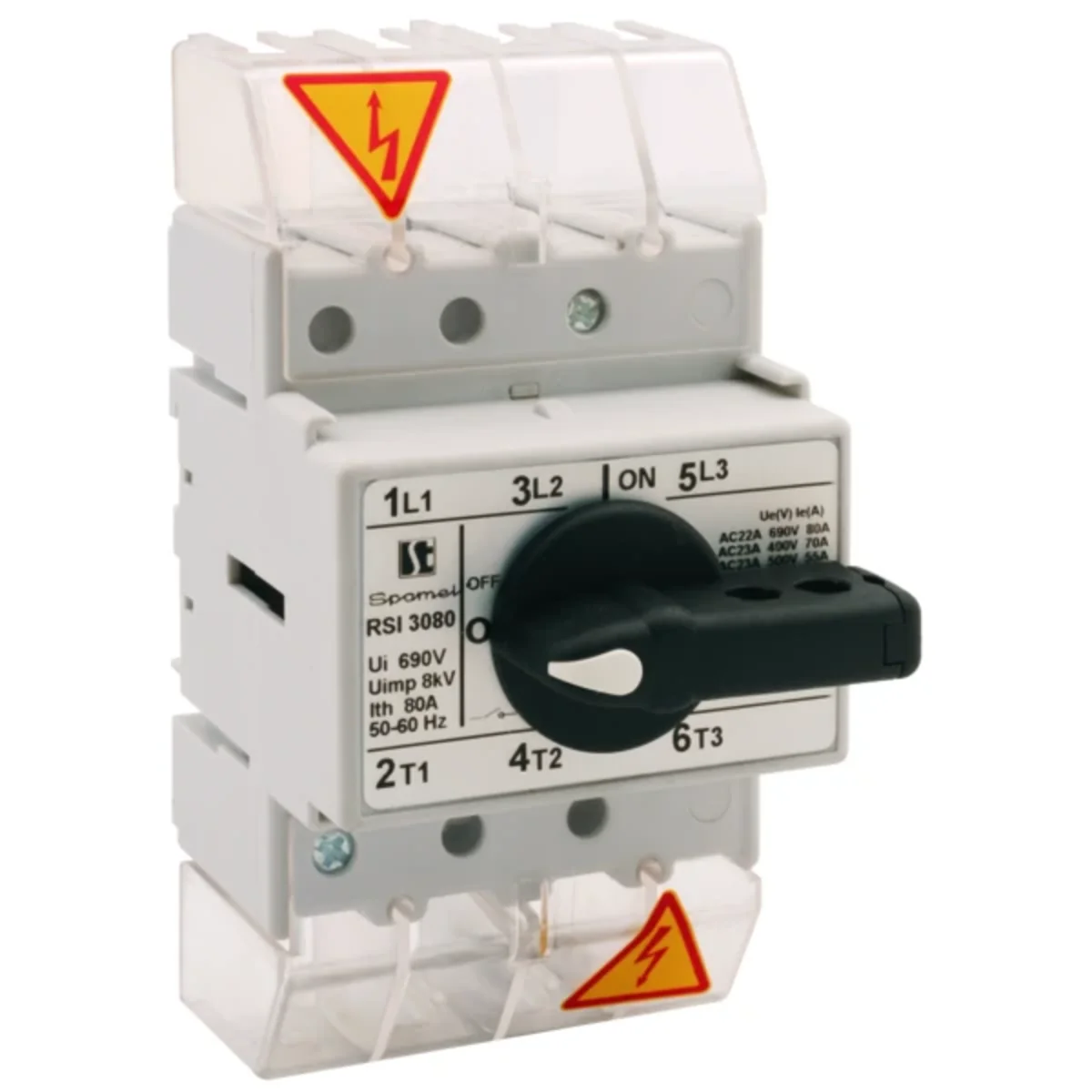

Three-pole switch disconnector 80A+N (non-switchable N pole) with a handle on the switch RSI-3080\W02

local index:
ALI002SPAM
Catalog No:
RSI-3080\W02
EAN code:
5907723023642
Manufacturer: SPAMEL
Continuous current [A]: 80
Price:
49,15 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

RSI compact switch disconnectors are designed for operation in circuits with a rated voltage of up to 690 V, in the AC-21A...AC-23A utilization categories and in DC circuits with a voltage of up to 220 V. The disconnectors can be installed in closed rooms (3 degree of pollution - industrial purpose), at the temperature from -40°C to +70°C.

Technical data

  • Continuous current [A]
    80

Other technical data

  • Version as main switch
    Yes
  • Version as safety switch
    No
  • Version as reversing switch
    No
  • Version as maintenance-/service switch
    No
  • Version as emergency stop installation
    Yes
  • Number of switches
    1
