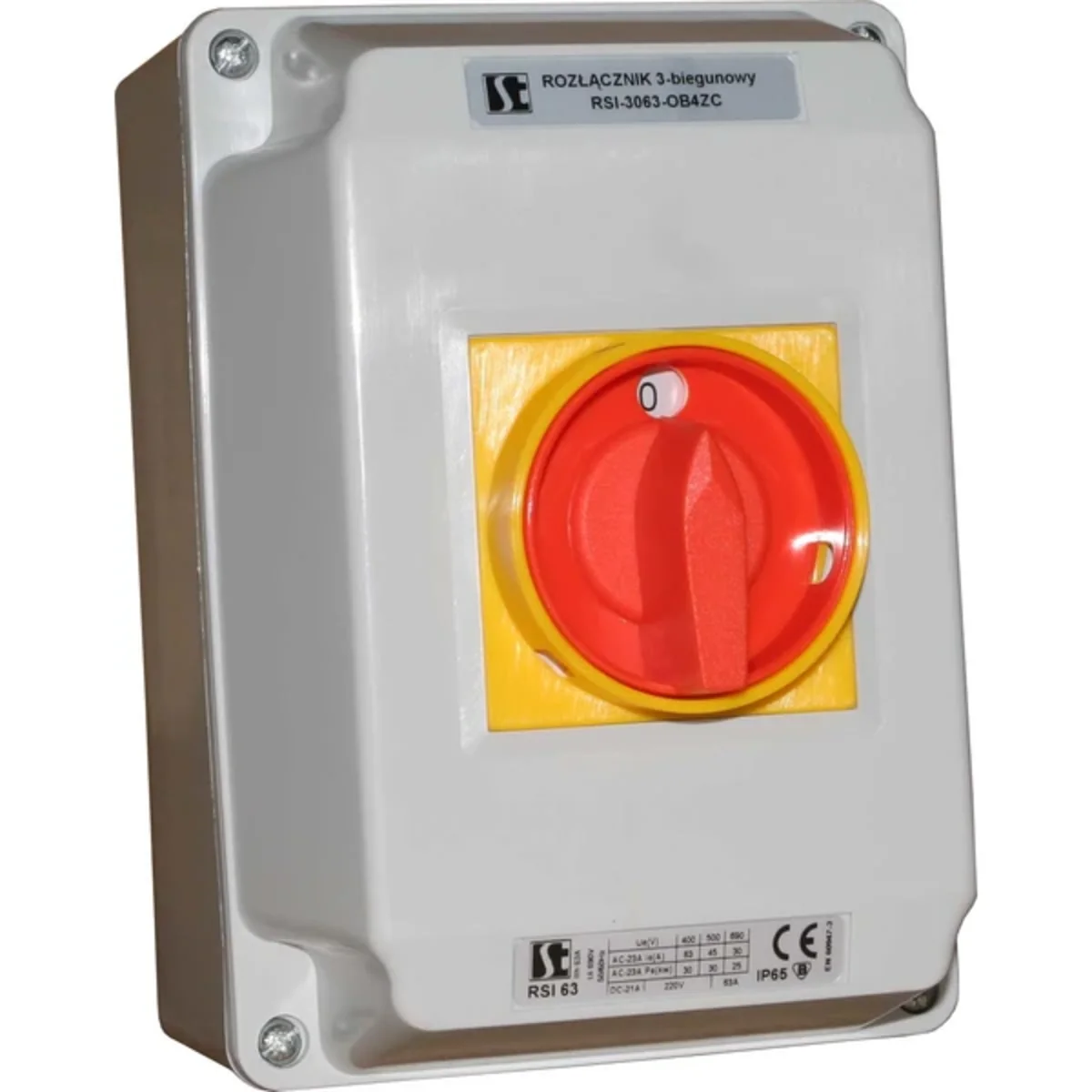

Three-pole switch disconnector 63A+N (non-switchable N pole) in a casing with a yellow-red lockable front RSI-3063N-OB4\ZC

local index:
ALI007SPAM
Catalog No:
RSI-3063N-OB4\ZC
EAN code:
5907723129450
Manufacturer: SPAMEL
Color: Red
Rated voltage [V]: 690
Continuous current [A]: 63
Price:
80,04 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Three-pole switch disconnector 63A+N (non-switchable N pole) in a casing with a yellow-red lockable front

Technical data

  • Color
    Red
  • Continuous current [A]
    63
  • Accurate color
    Red
  • Rated voltage [V]
    690
  • Level of security
    IP20

Other technical data

  • Jako rozłącznik kompaktowy
    Yes
  • Version as maintenance-/service switch
    Yes
  • Version as emergency stop installation
    Yes
  • Rated permanent current Iu
    63 A
  • Number of poles
    3
  • Number of auxiliary contacts as normally open contact
    0
  • Motor drive optional
    No
  • Voltage release optional
    No
  • Suitable for floor mounting
    Yes
  • Suitable for front mounting centre
    No
  • Suitable for intermediate mounting
    Yes
  • Interlockable
    No
  • Degree of protection (IP), front side
    IP20
  • Version as main switch
    Yes
  • Version as safety switch
    Yes
  • Max. rated operation voltage Ue AC
    690 V
  • Rated operation power at AC-23, 400 V
    30 kW
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Motor drive integrated
    No
  • Device construction
    Complete device in housing
  • Suitable for front mounting 4-hole
    No
  • Suitable for distribution board installation
    Yes
  • Type of control element
    Turn button
  • Type of electrical connection of main circuit
    Clamp bracket
