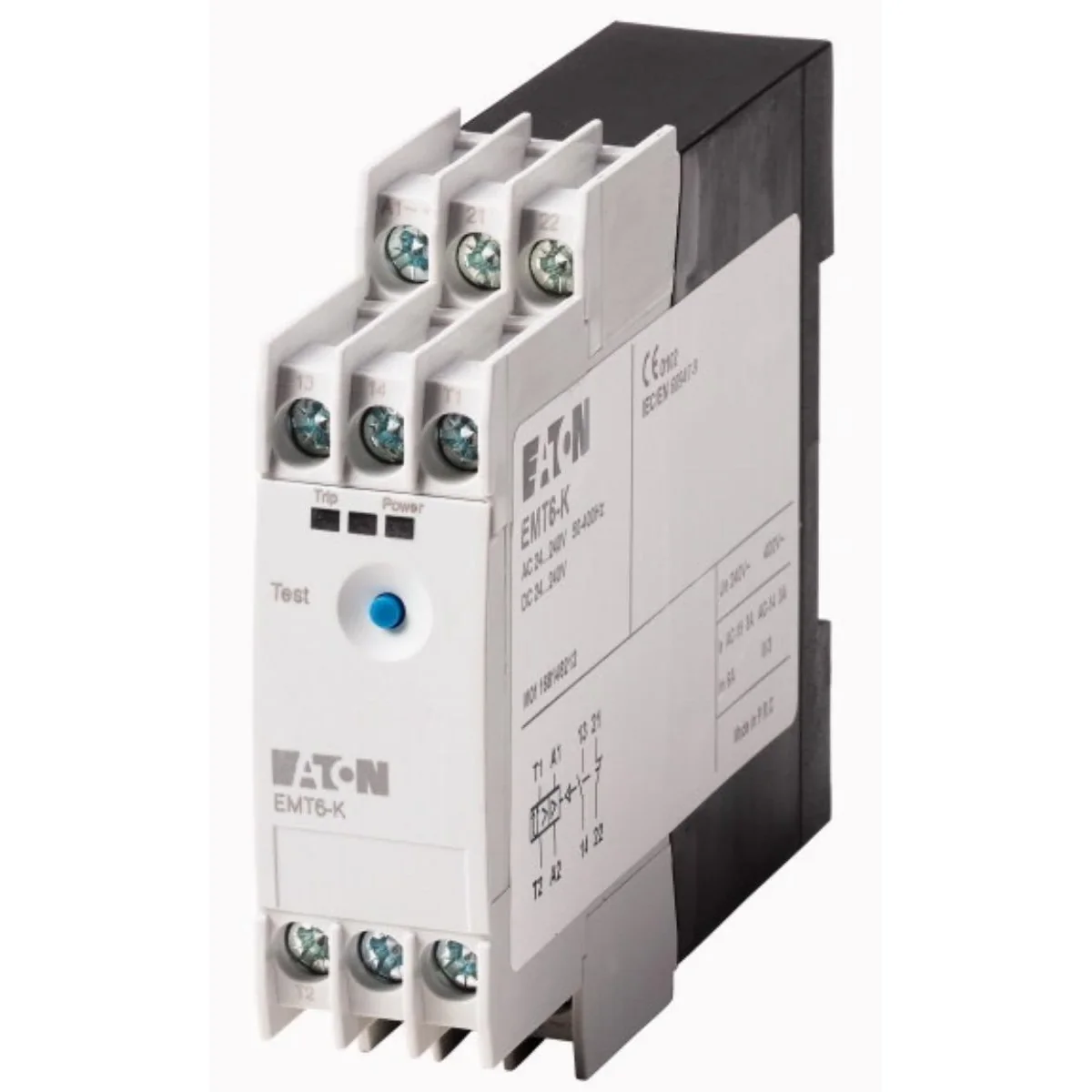

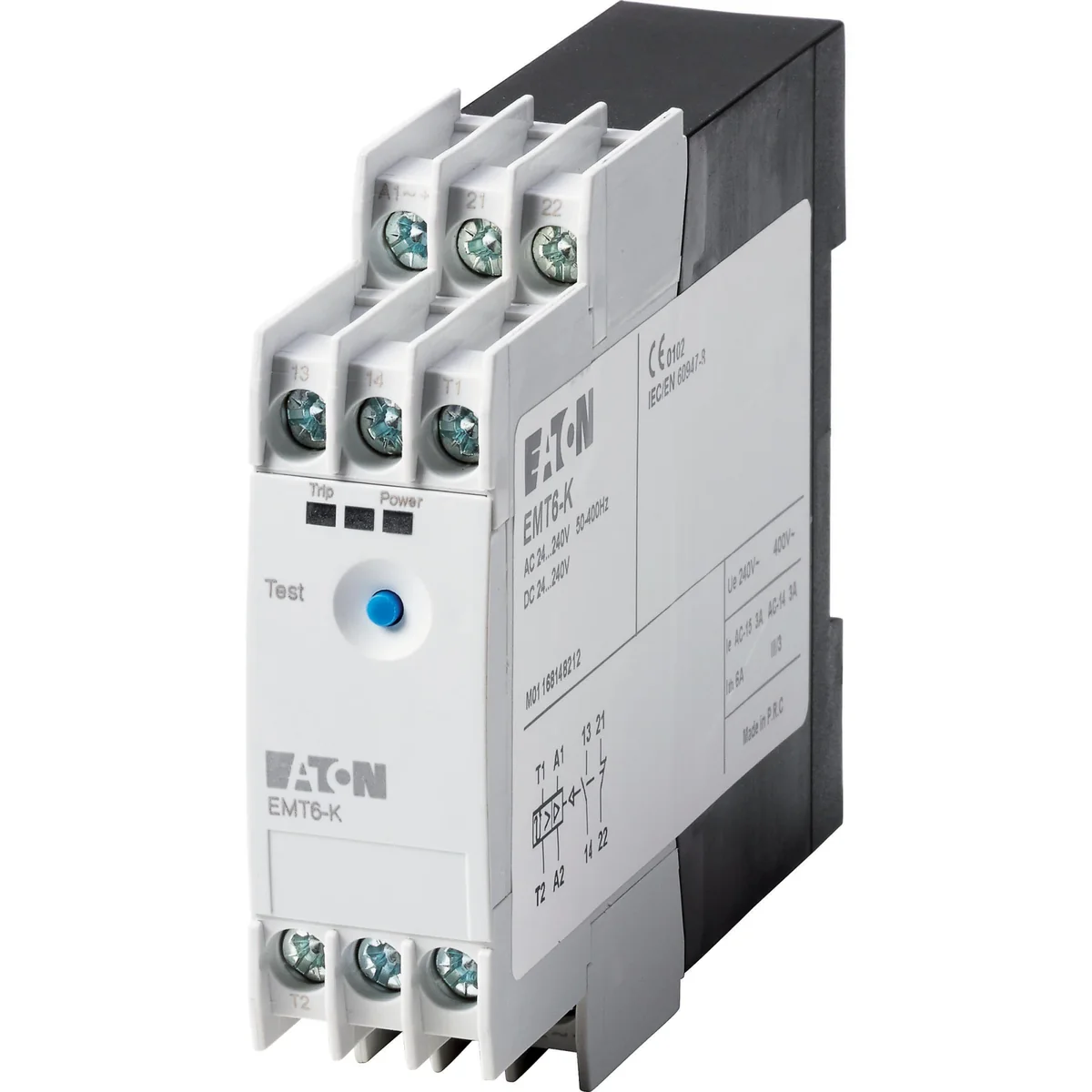

Thermistor machine protection, EMT6-K 269470

local index:
APN125MOEL
Catalog No:
269470
EAN code:
4015082694708
Manufacturer: EATON
Rated current [A]: 3
Price:
130,16 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Without restart lock
LED indicators: mains, error
Trigger on short-circuit of sensor wires

Technical data

  • Rated current [A]
    3

Other technical data

  • Type of electric connection
    Screw connection
  • Rated control supply voltage AC 60 Hz
    24 ... 240 V
  • Voltage type for actuating
    AC/DC
  • Number of measuring circuits
    1
  • External reset possible
    No
  • Number of contacts as normally open contact
    1
  • Temperature measuring range
    0 ... 0 °C
  • Width
    23 mm
  • Depth
    103 mm
  • Rated control supply voltage AC 50 Hz
    24 ... 240 V
  • Rated control supply voltage DC
    24 ... 240 V
  • With detachable clamps
    No
  • Error registration possible
    No
  • Number of contacts as normally closed contact
    1
  • Number of contacts as change-over contact
    0
  • Resistance measuring range
    750 ... 12000 Ω
  • Height
    83 mm

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,148
Volume (m3) 0,000
Width (m) 0,085
Length (m) 0,110
Depth (m) 0,025
