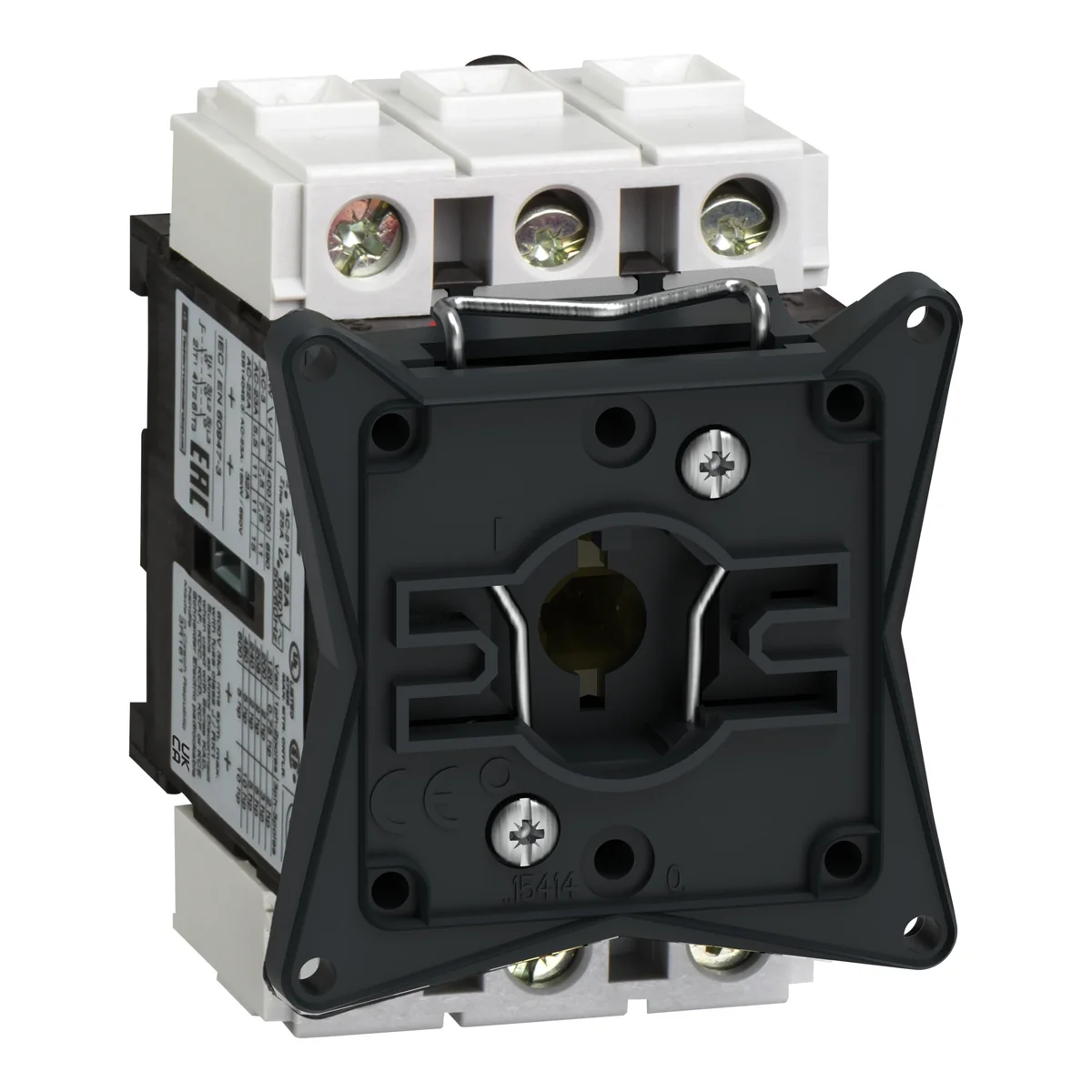

TeSys VARIO 40A 3P switch disconnector main module V2
local index:
ALA369SCHN
Catalog No:
V2
EAN code:
3389110551709
Manufacturer:
SCHNEIDER ELECTRIC
Number of poles: 3
Price:
53,03 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
TeSys VARIO 40A 3P switch disconnector main module
Technical data
-
Number of poles3
-
PKWIU27.12.21.0
Other technical data
-
Version as main switchNo
-
Version as safety switchNo
-
Version as reversing switchNo
-
Max. rated operation voltage Ue AC690 V
-
Rated permanent current Iu40 A
-
Rated permanent current at AC-21, 400 V40 A
-
Rated short-time withstand current lcw0.48 kA
-
Conditioned rated short-circuit current Iq10 kA
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedNo
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting 4-holeYes
-
Suitable for distribution board installationNo
-
InterlockableNo
-
Degree of protection (IP), front sideIP20
-
Version as maintenance-/service switchNo
-
Version as emergency stop installationNo
-
Number of switches1
-
Rated operating voltage0 ... 690 V
-
Rated permanent current at AC-23, 400 V29 A
-
Rated operation power at AC-3, 400 V11 kW
-
Rated operation power at AC-23, 400 V15 kW
-
Number of poles3
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalNo
-
Voltage release optionalNo
-
Suitable for floor mountingNo
-
Suitable for front mounting centreYes
-
Suitable for intermediate mountingNo
-
Type of electrical connection of main circuitScrew connection
