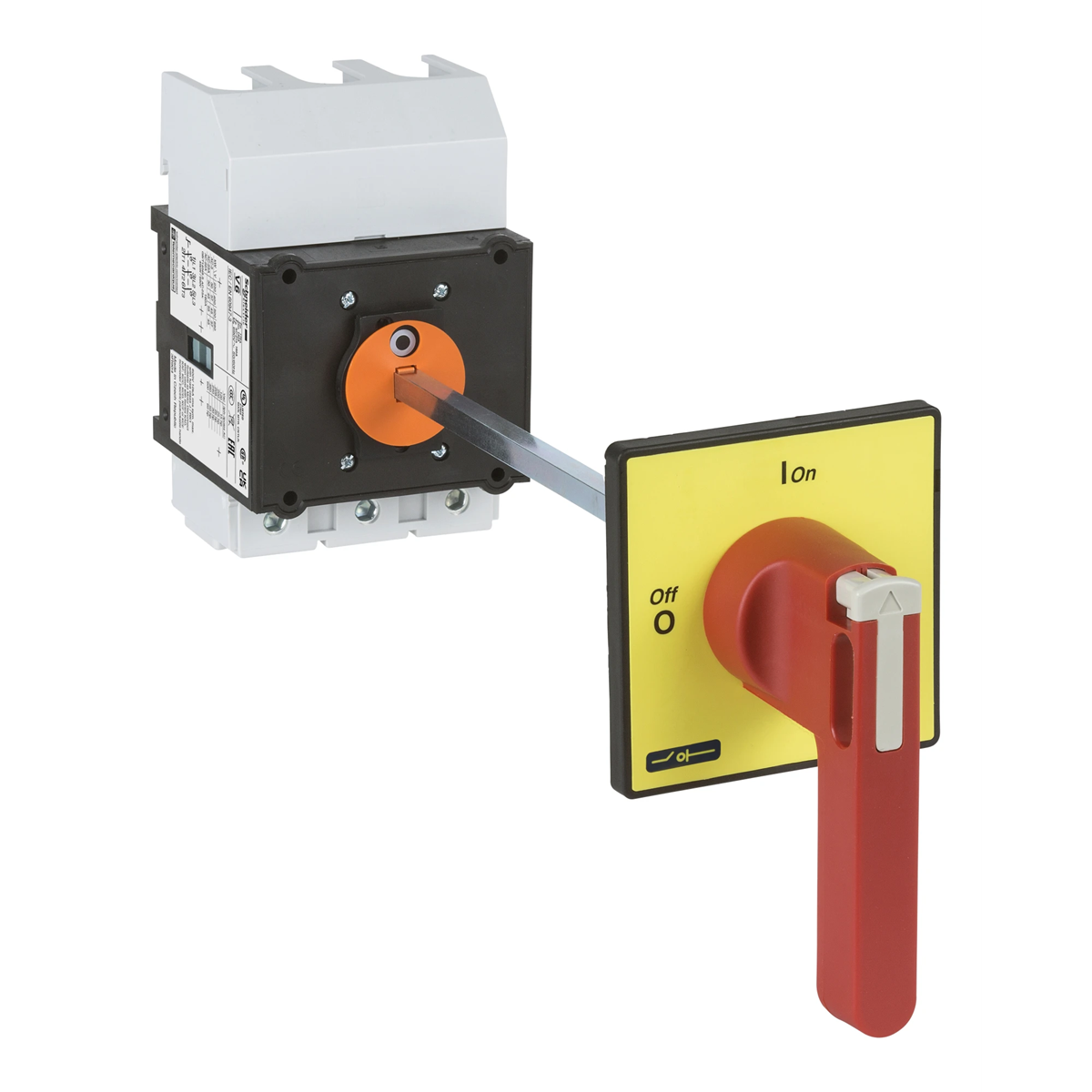

TeSys VARIO 125A wall-mounted main safety switch VCCF5

local index:
ALK012SCHN
Catalog No:
VCCF5
EAN code:
3389110804652
Manufacturer: SCHNEIDER ELECTRIC
Height [mm]: 125
Price:
278,98 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

TeSys VARIO 125A wall-mounted main safety switch

Technical data

  • Height [mm]
    125
  • PKWIU
    27.12.21.0

Other technical data

  • Version as main switch
    Yes
  • Version as safety switch
    No
  • Version as reversing switch
    No
  • Max. rated operation voltage Ue AC
    690 V
  • Rated permanent current Iu
    125 A
  • Rated permanent current at AC-21, 400 V
    125 A
  • Rated short-time withstand current lcw
    1.5 kA
  • Conditioned rated short-circuit current Iq
    10 kA
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Motor drive integrated
    No
  • Device construction
    Built-in device fixed built-in technique
  • Suitable for front mounting 4-hole
    Yes
  • Suitable for distribution board installation
    No
  • Colour control element
    Red
  • Interlockable
    Yes
  • Degree of protection (IP), front side
    IP65
  • Version as maintenance-/service switch
    No
  • Version as emergency stop installation
    Yes
  • Number of switches
    1
  • Rated operating voltage
    0 ... 690 V
  • Rated permanent current at AC-23, 400 V
    68.5 A
  • Rated operation power at AC-3, 400 V
    30 kW
  • Rated operation power at AC-23, 400 V
    37 kW
  • Number of poles
    3
  • Number of auxiliary contacts as normally open contact
    0
  • Motor drive optional
    No
  • Voltage release optional
    No
  • Suitable for floor mounting
    No
  • Suitable for front mounting centre
    No
  • Suitable for intermediate mounting
    No
  • Type of control element
    Door coupling rotary drive
  • Type of electrical connection of main circuit
    Screw connection
