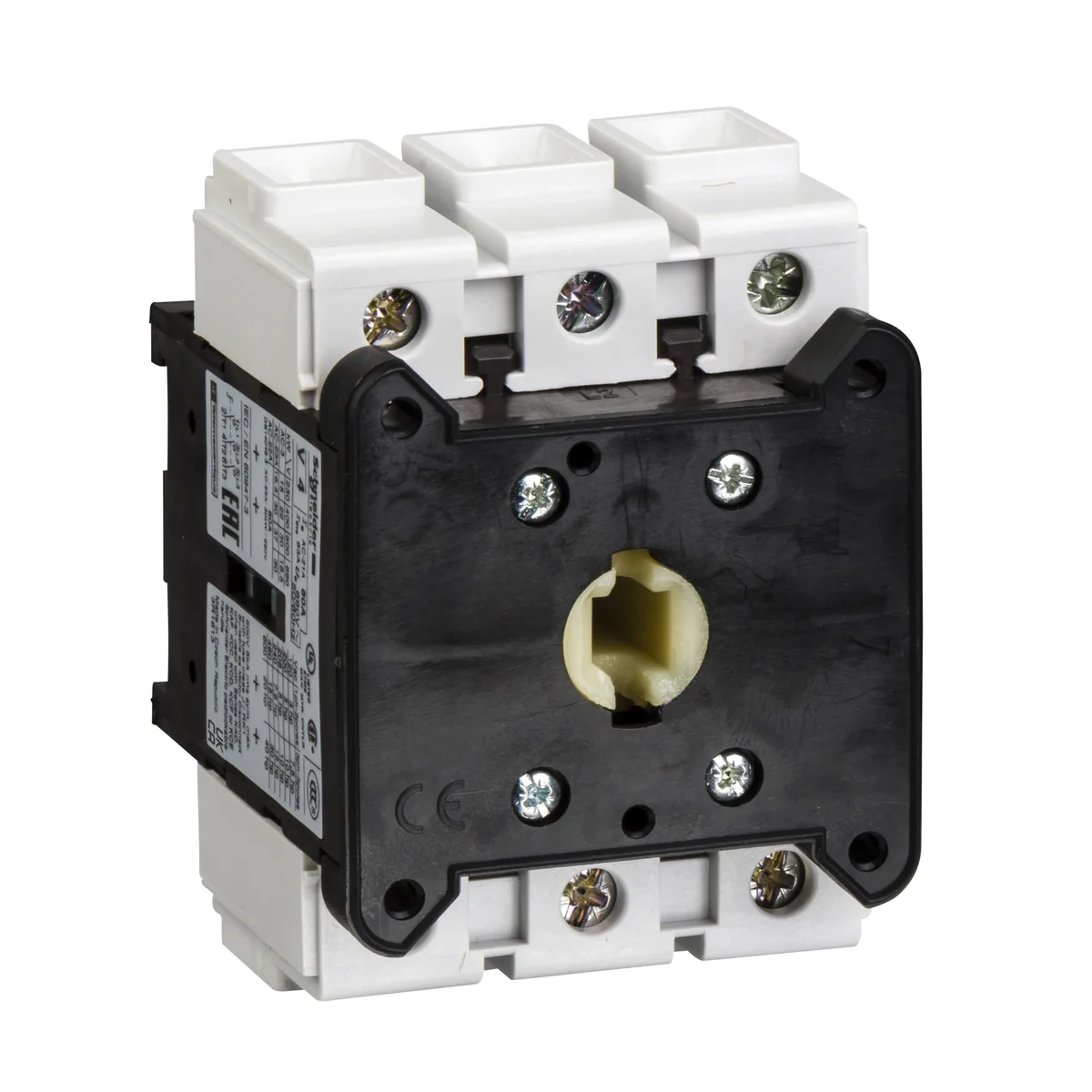

TeSys VARIO 125A 3P switch disconnector main module V5
local index:
ALA093SCHN
Catalog No:
V5
EAN code:
3389110551730
Click on the photo to enlarge
Manufacturer:
SCHNEIDER ELECTRIC
Number of poles:
3
See full description
Price:
204,30 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Product description
TeSys VARIO 125A 3P switch disconnector main module
Technical data
Number of poles
3
PKWIU
27.12.21.0
Other technical data
Version as main switch
No
Version as safety switch
No
Version as reversing switch
No
Max. rated operation voltage Ue AC
690 V
Rated permanent current Iu
125 A
Rated permanent current at AC-21, 400 V
125 A
Rated short-time withstand current lcw
1.5 kA
Conditioned rated short-circuit current Iq
10 kA
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive integrated
No
Device construction
Built-in device fixed built-in technique
Suitable for front mounting 4-hole
Yes
Suitable for distribution board installation
No
Interlockable
No
Degree of protection (IP), front side
IP20
Version as maintenance-/service switch
No
Version as emergency stop installation
No
Number of switches
1
Rated operating voltage
0 ... 690 V
Rated permanent current at AC-23, 400 V
68.5 A
Rated operation power at AC-3, 400 V
30 kW
Rated operation power at AC-23, 400 V
37 kW
Number of poles
3
Number of auxiliary contacts as normally open contact
0
Motor drive optional
No
Voltage release optional
No
Suitable for floor mounting
No
Suitable for front mounting centre
Yes
Suitable for intermediate mounting
No
Type of electrical connection of main circuit
Screw connection
