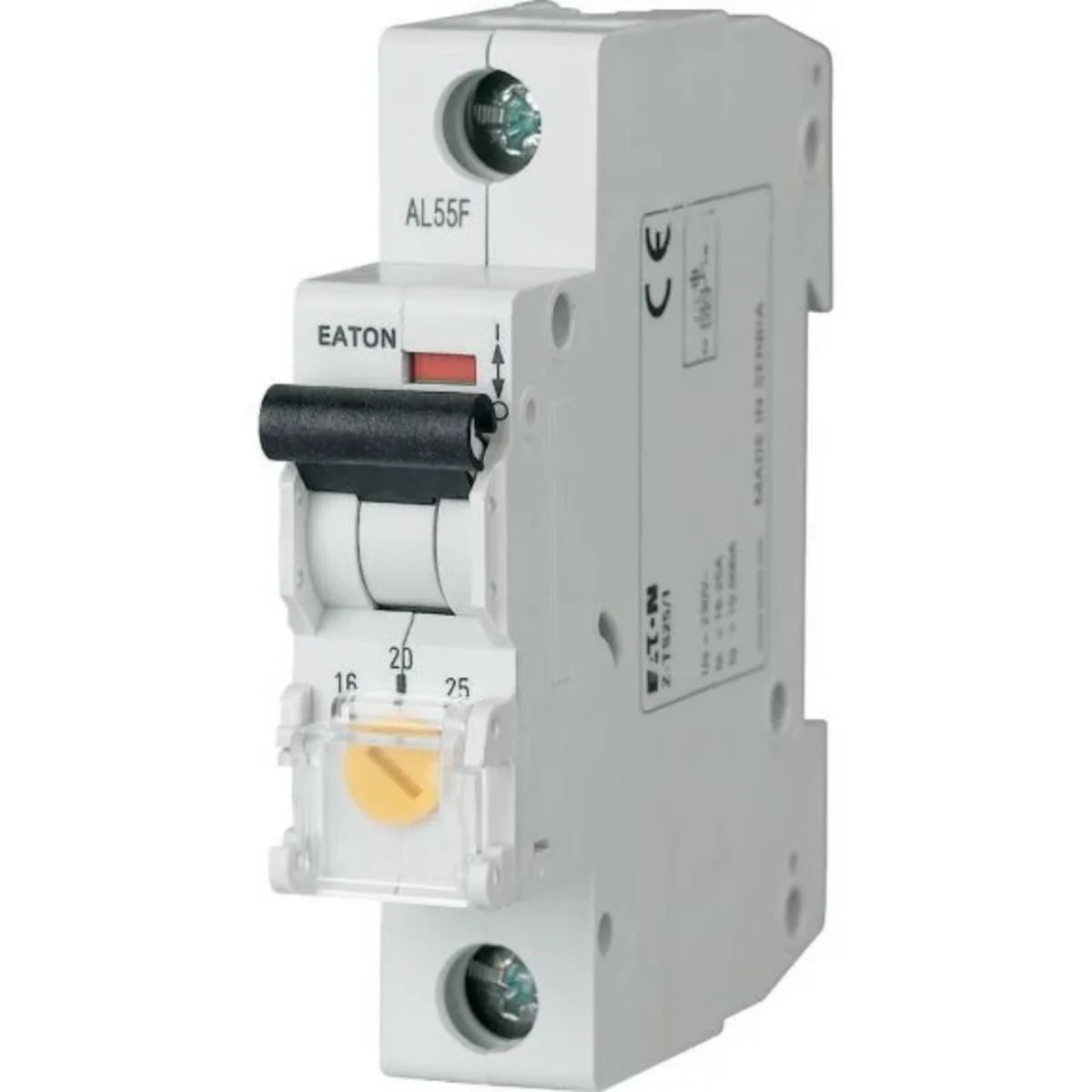

Tariff switch, Z-TS25/1 266852
local index:
API242MOEL
Catalog No:
266852
EAN code:
4015082668525
Manufacturer:
EATON
Rated current [A]: 25
Price:
25,82 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
2
)
Add to clipboard
Print
Ask about the product
Product description
Tariff switch, Z-TS25/1
Technical data
-
Rated current [A]25
Other technical data
-
Overload release current setting16 ... 25 A
-
With thermal overload protectionYes
-
Switch off techniqueMagnetic
-
Rated permanent current Iu0 A
-
Rated operation power at AC-3, 400 V0 kW
-
Type of control elementRocker lever
-
With integrated auxiliary switchNo
-
Number of poles1
-
Degree of protection (IP)IP20
-
Width18 mm
-
Adjustment range undelayed short-circuit release16 ... 25 A
-
Phase failure sensitiveNo
-
Rated operating voltage400 ... 400 V
-
Rated operation power at AC-3, 230 V0 kW
-
Type of electrical connection of main circuitScrew connection
-
Device constructionComplete device in housing
-
With integrated under voltage releaseNo
-
Rated short-circuit breaking capacity lcu at 400 V, AC0 kA
-
Height75 mm
-
Depth80 mm
Bulk packaging
| A kind of package | Skrzynia | Karton | Karton |
| Quantity | 1 pcs. | 2 pcs. | 120 pcs. |
| Weight (kg) | 0,122 | 0,244 | 14,640 |
| Volume (m3) | 0,000 | 0,000 | 0,016 |
| Width (m) | 0,020 | 0,086 | 0,385 |
| Length (m) | 0,082 | 0,037 | 0,180 |
| Depth (m) | 0,077 | 0,075 | 0,230 |
