Switch I-II down supply 2P 25A SFL225

Name: Switch I-II down supply 2P 25A
Brand: HAGER
SKU: ALI115HAGE
Price: 29.21 PLN

local index:

ALI115HAGE

Catalog No:

SFL225

EAN code:

3250615510822

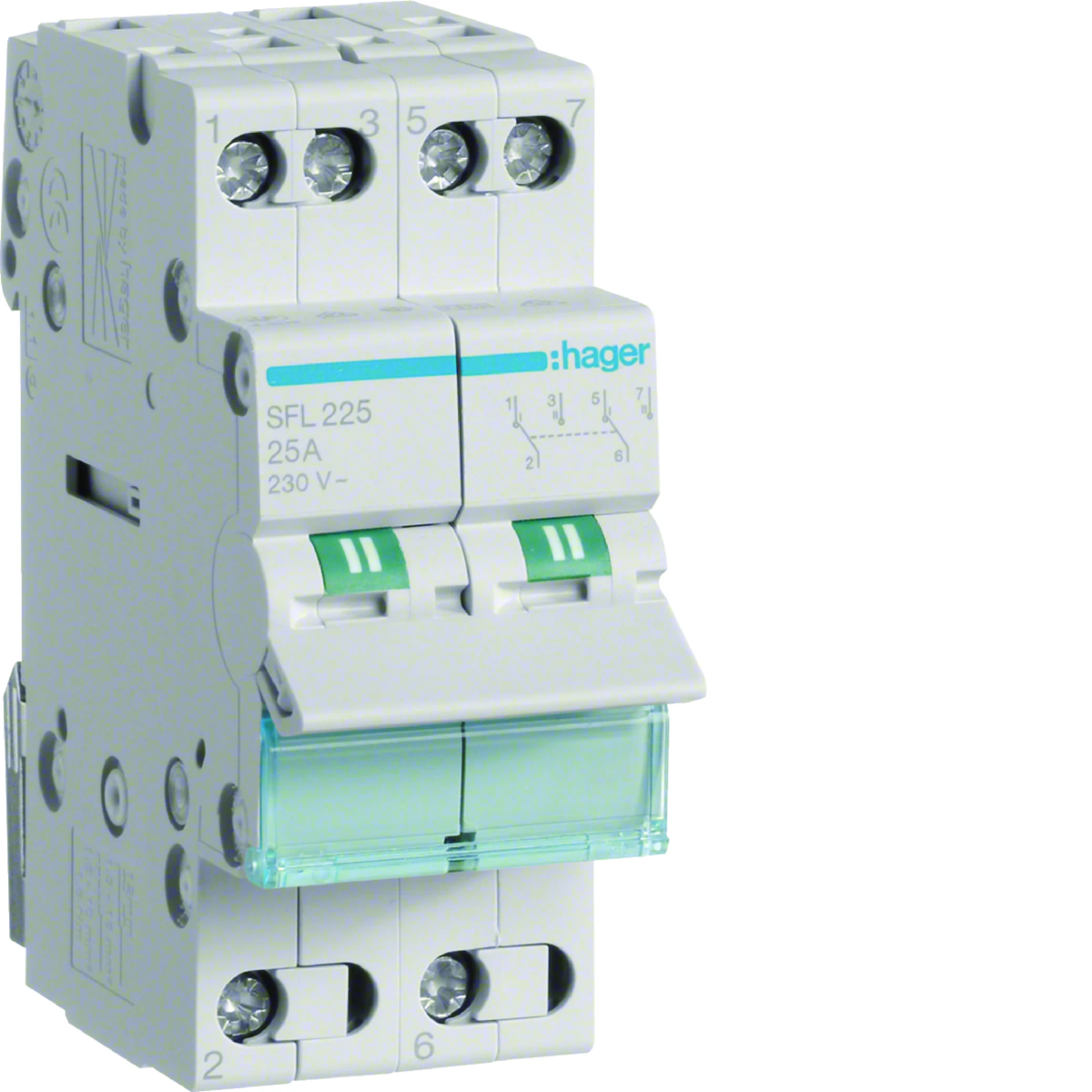

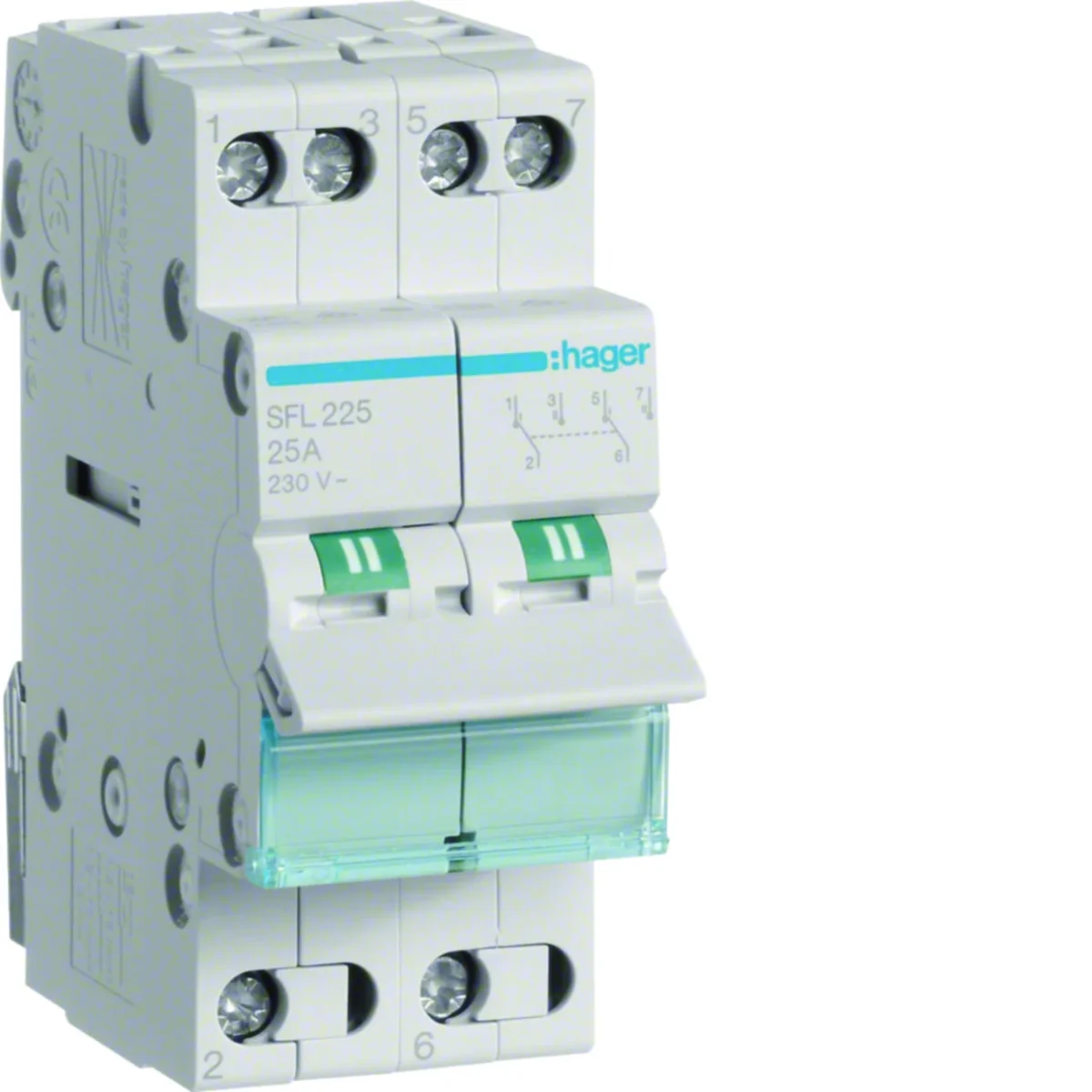

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 68

Number of modules: 2

Number of poles: 2

See full description

Price:

29,21 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

For switching all types of current circuits. Compliance with: PN-EN 60943-3 and PN-EN 60669-1. Characteristics: all switches have green/red fields on the drive lever for clear visualization of the switch position.
Technical data
Operating category AC-22A 230V/400V
Ie: 16A to 40A size 1.
Connection terminals: 16mm² - wire, 10mm² - cord
MZ2xx series shunt, undervoltage and overvoltage releases cannot be used.

Technical data

Depth [mm]

68
Number of poles

2
Rated current [A]

25
Height [mm]

83
PKWIU

27.33.11.0

Number of modules

2
Rated insulation voltage [V]

440
Width [mm]

35
Number of modules

2

Other technical data

Switching function

Two-way switch
Number of contacts as normally closed contact

0
Number of poles

2
Rated voltage

230 V
Rated switching capacity

0.529 kA
Voltage type

AC
Max. lamp power

0 W
Built-in depth

68 mm

Number of contacts as normally open contact

0
Number of contacts as change-over contact

2
Rated current

25 A
Min. rated voltage

230 V
Short-circuit breaking capacity (Icw)

0.375 kA
With signal lamp

No
Width in number of modular spacings

2
Degree of protection (IP)

IP20

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
Tax identification number

6460015532

Bulk packaging

A kind of package	Karton	Pakiet	Paleta	Karton	Pakiet	Paleta
Quantity	1 pcs.	60 pcs.	1440 pcs.	1 pcs.	60 pcs.	1440 pcs.
Weight (kg)	0,145	8,985	238,640	0,145	8,985	238,640
Width (m)	0,080	0,315	0,800	0,080	0,315	0,800
Length (m)	0,040	0,220	1,026	0,040	0,220	1,026
Depth (m)	0,100	0,365	1,200	0,100	0,365	1,200
