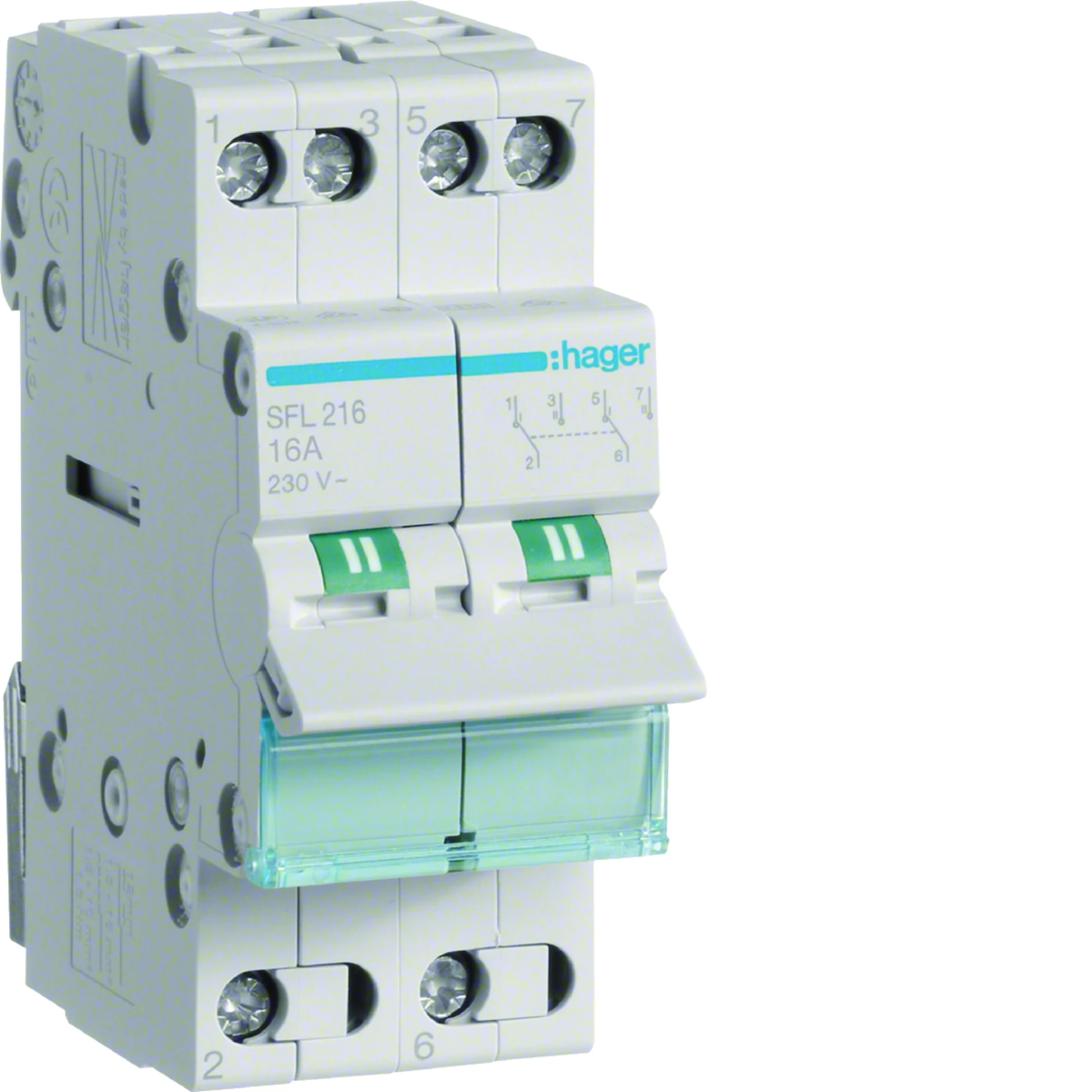

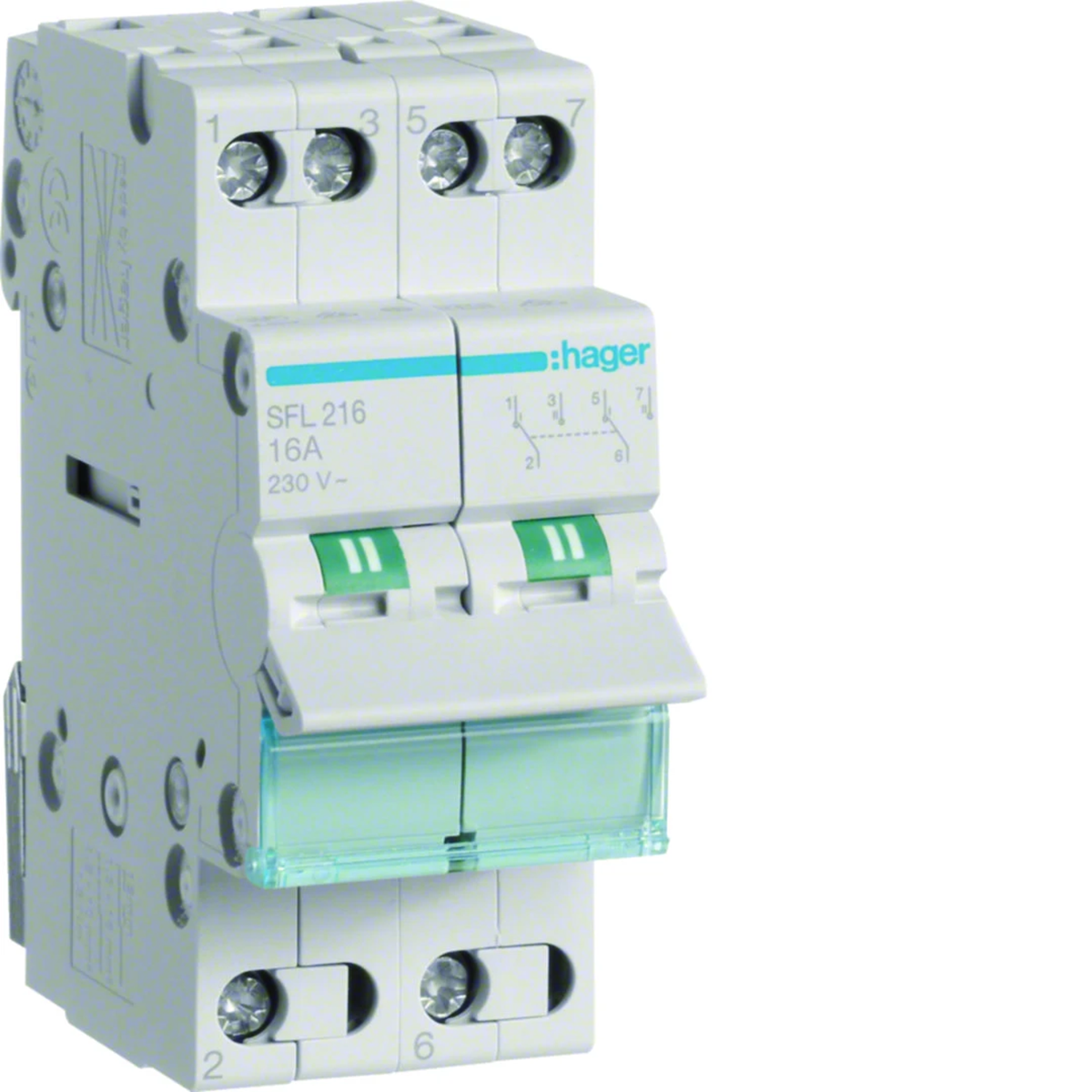

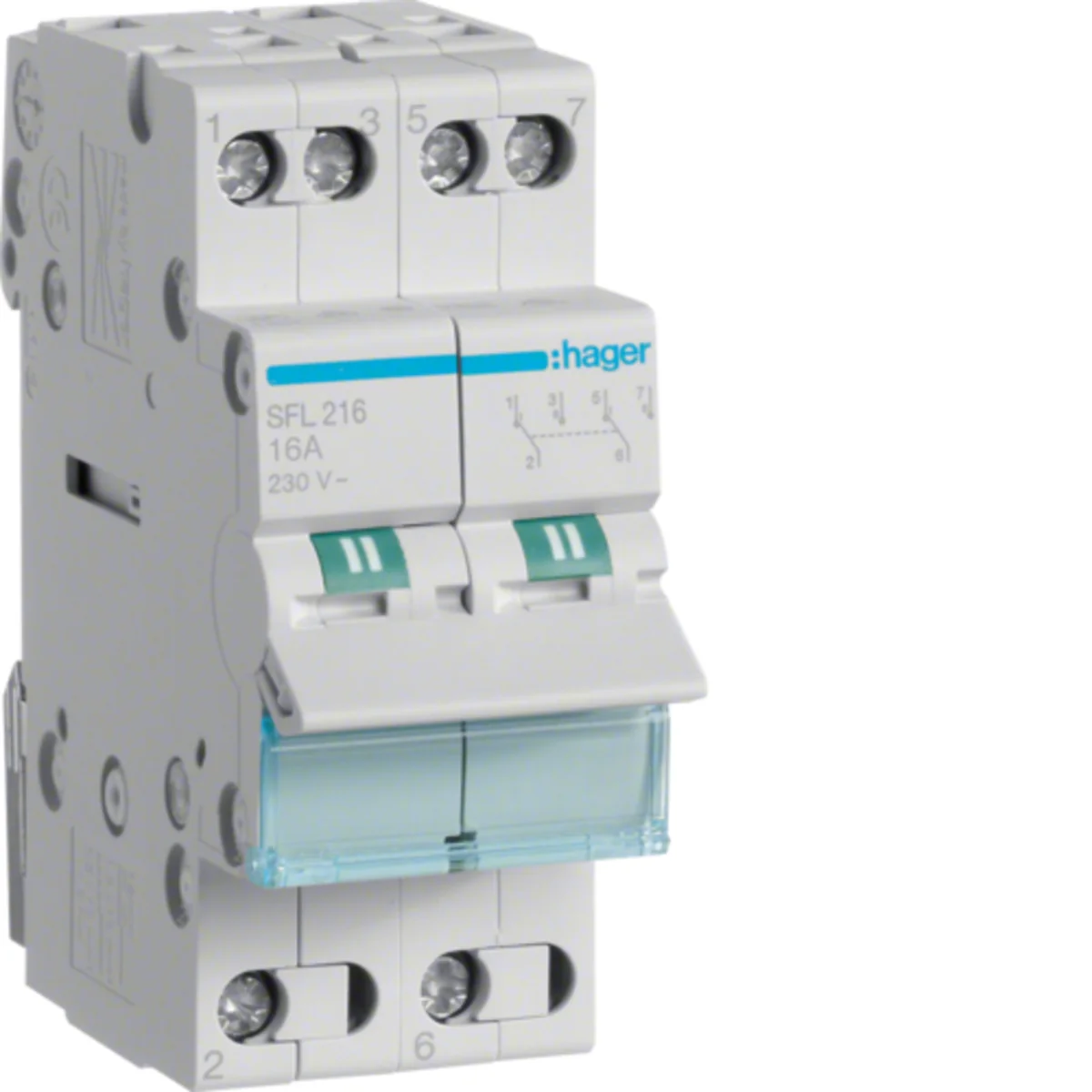

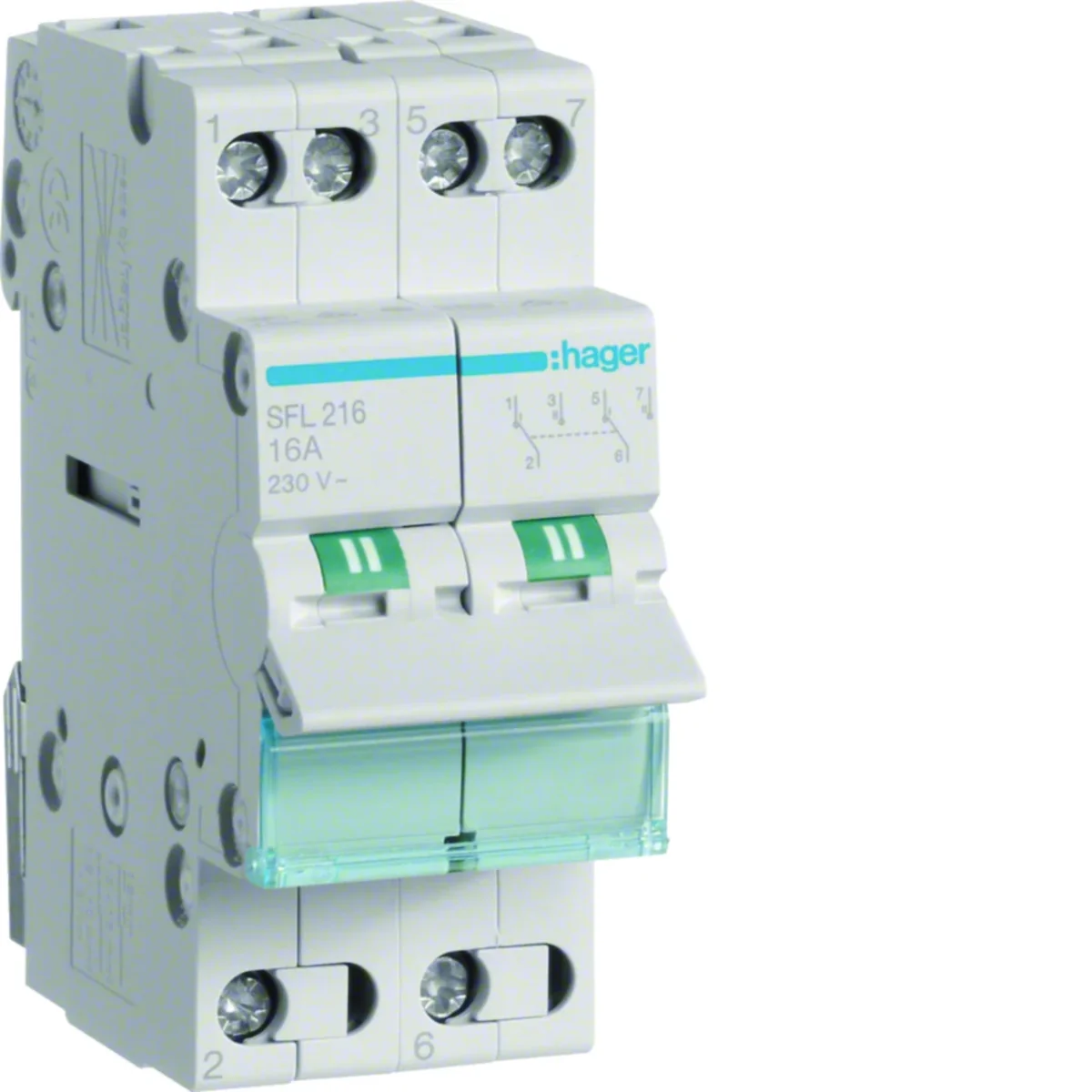

Switch I-II down supply 2P 16A SFL216

Name: Switch I-II down supply 2P 16A
Brand: HAGER
SKU: ALI037HAGE
Price: 31.35 PLN

local index:

ALI037HAGE

Catalog No:

SFL216

EAN code:

3250615510730

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 68

Number of modules: 2

Number of poles: 2

See full description

Price:

31,35 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

For switching all types of current circuits. Compliance with: PN-EN 60943-3 and PN-EN 60669-1. Characteristics: all switches have green/red fields on the drive lever for clear visualization of the switch position.
Technical data
Operating category AC-22A 230V/400V
Ie: 16A to 40A size 1.
Connection terminals: 16mm² - wire, 10mm² - cord
MZ2xx series shunt, undervoltage and overvoltage releases cannot be used.

Technical data

Depth [mm]

68
Number of poles

2
Rated voltage [V]

230
Rated current [A]

16
Width [mm]

35
Number of modules

2

Number of modules

2
Surge voltage [kV]

4000
Rated insulation voltage [V]

440
Power dissipation [W]

1
Height [mm]

83
PKWIU

27.33.11.0

Other technical data

Switching function

Two-way switch
Number of contacts as normally closed contact

0
Number of poles

2
Rated voltage

230 V
Rated switching capacity

0.338 kA
Voltage type

AC
Max. lamp power

0 W
Built-in depth

68 mm

Number of contacts as normally open contact

0
Number of contacts as change-over contact

2
Rated current

16 A
Min. rated voltage

230 V
Short-circuit breaking capacity (Icw)

0.24 kA
With signal lamp

No
Width in number of modular spacings

2
Degree of protection (IP)

IP20

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
Tax identification number

6460015532

Bulk packaging

A kind of package	Karton	Pakiet	Karton	Pakiet
Quantity	1 pcs.	60 pcs.	1 pcs.	60 pcs.
Weight (kg)	0,017	0,490	0,017	0,490
Width (m)	0,095	0,308	0,095	0,308
Length (m)	0,080	0,210	0,080	0,210
Depth (m)	0,040	0,357	0,040	0,357
