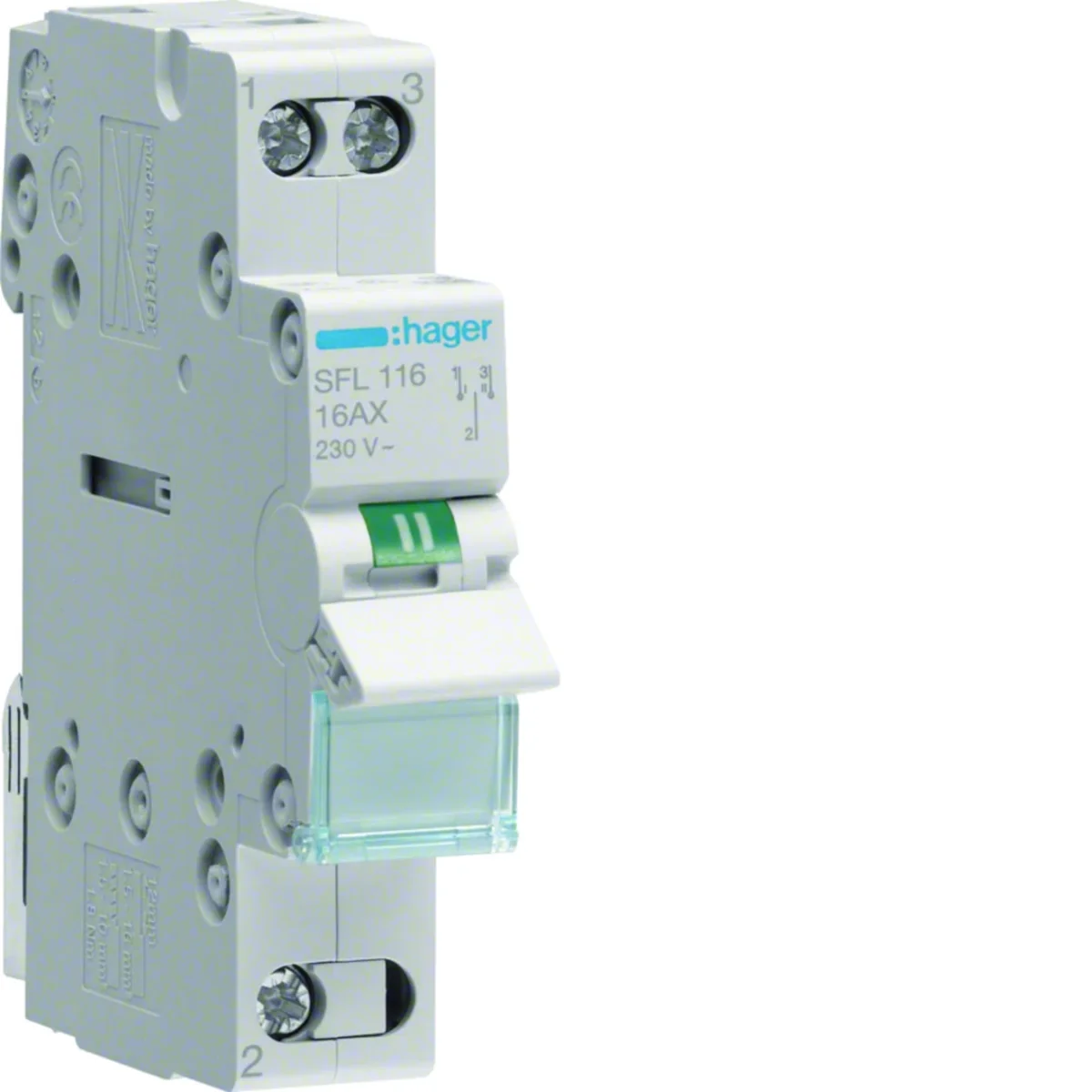

Switch I-II down supply 1P 16A SFL116

local index:
ALI063HAGE
Catalog No:
SFL116
EAN code:
3250615510716
Manufacturer: HAGER
Rated frequency [Hz]: 50/60
Depth [mm]: 68
Number of poles: 1
Price:
17,65 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Hager modular switch disconnectors and power switches are new devices with rated currents from 16 to 125 A, enabling easy and safe switching operations in low voltage switchgear. They have a number of amenities, such as an energy-saving LED signaling diode or the possibility of adding a pomonic contact. Simple operation and accuracy of operation are the features of digital control clocks. Clock programming can be prepared by dedicated software and transferred to the device using programming keys. Modern, energy-saving and even easier to install – is a new, full series of Hager installation contactors and relays, whose technical parameters meet the needs of modern electrotechnical installations.

For switching all types of current circuits. Compliance with: PN-EN 60943-3 and PN-EN 60669-1
All switches have green/red fields on the drive lever for clear visualization of the switch position.
Technical data:
AC operating category -22A
230V/400V
Ie: 16A to 40A size 1.
Connection terminals:
16mm² - wire
10 mm² - cable
It is not possible to use shunt, undervoltage and overvoltage releases of the MZ2xx series.

Technical data

  • Rated frequency [Hz]
    50/60
  • Number of poles
    1
  • Connection
    With a screw
  • Rated current [A]
    16
  • Width [mm]
    17.5
  • Mechanical durability (number of cycles)
    40000
  • Number of modules
    1
  • Depth [mm]
    68
  • Rated insulation voltage [V]
    440
  • Surge voltage [V]
    6000
  • power loss [W]
    0.4
  • Height [mm]
    83
  • Rated switching voltage [V]
    230
  • PKWIU
    27.33.11.0

Other technical data

  • Switching function
    Two-way switch
  • Number of contacts as normally closed contact
    0
  • Number of poles
    1
  • Rated voltage
    230 V
  • Rated switching capacity
    0.338 kA
  • Voltage type
    AC
  • Max. lamp power
    0 W
  • Built-in depth
    68 mm
  • Number of contacts as normally open contact
    0
  • Number of contacts as change-over contact
    1
  • Rated current
    16 A
  • Min. rated voltage
    230 V
  • Short-circuit breaking capacity (Icw)
    0.24 kA
  • With signal lamp
    No
  • Width in number of modular spacings
    1
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Karton Pakiet
Quantity 1 pcs. 1 pcs. 108 pcs.
Weight (kg) 0,066 0,013 0,542
Width (m) 0,018 0,022 0,308
Length (m) 0,083 0,080 0,210
Depth (m) 0,073 0,095 0,357
