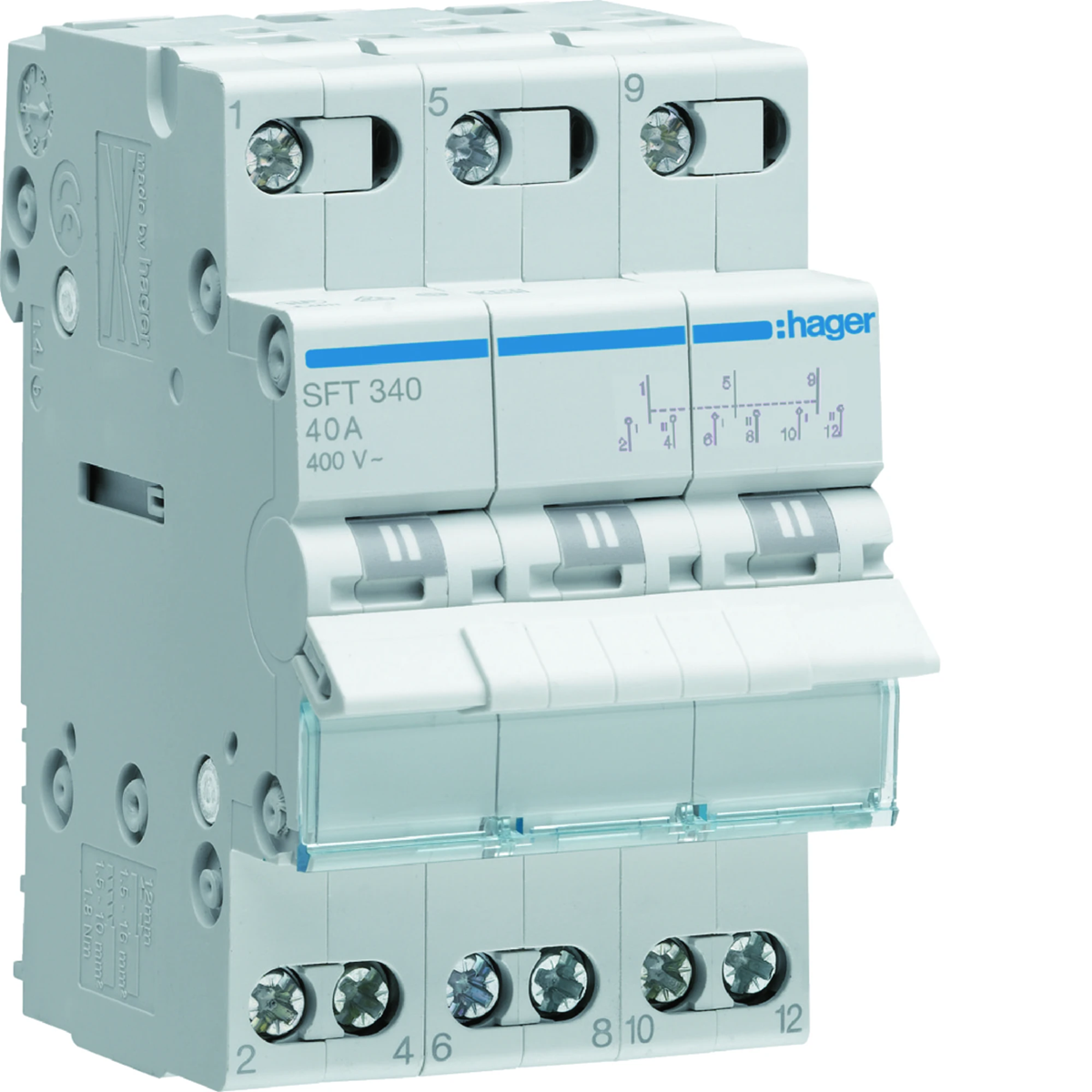

Switch I-0-II supply top 3P 40A SFT340
local index:
ALI176HAGE
Catalog No:
SFT340
EAN code:
3250615510938
Price:
36,86 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Switch I-0-II supply top 3P 40A
Technical data
-
Depth [mm]70
-
Number of poles3
-
Rated current [A]40
-
Width [mm]52.5
-
Number of modules3
-
Number of modules3
-
Rated insulation voltage [V]440
-
Power dissipation [W]6
-
Height [mm]83
-
PKWIU27.33.11.0
Other technical data
-
Switching functionTwo-way switch
-
Number of contacts as normally closed contact0
-
Number of poles3
-
Rated voltage400 V
-
Rated switching capacity0.846 kA
-
Voltage typeAC
-
Max. lamp power0 W
-
Built-in depth70 mm
-
Number of contacts as normally open contact0
-
Number of contacts as change-over contact3
-
Rated current40 A
-
Min. rated voltage400 V
-
Short-circuit breaking capacity (Icw)0.6 kA
-
With signal lampNo
-
Width in number of modular spacings3
-
Degree of protection (IP)IP20
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 48 pcs. | 1152 pcs. |
| Weight (kg) | 0,184 | 0,185 | 9,320 | 248,680 |
| Width (m) | 0,052 | 0,080 | 0,315 | 0,800 |
| Length (m) | 0,083 | 0,060 | 0,215 | 1,010 |
| Depth (m) | 0,075 | 0,095 | 0,365 | 1,200 |
