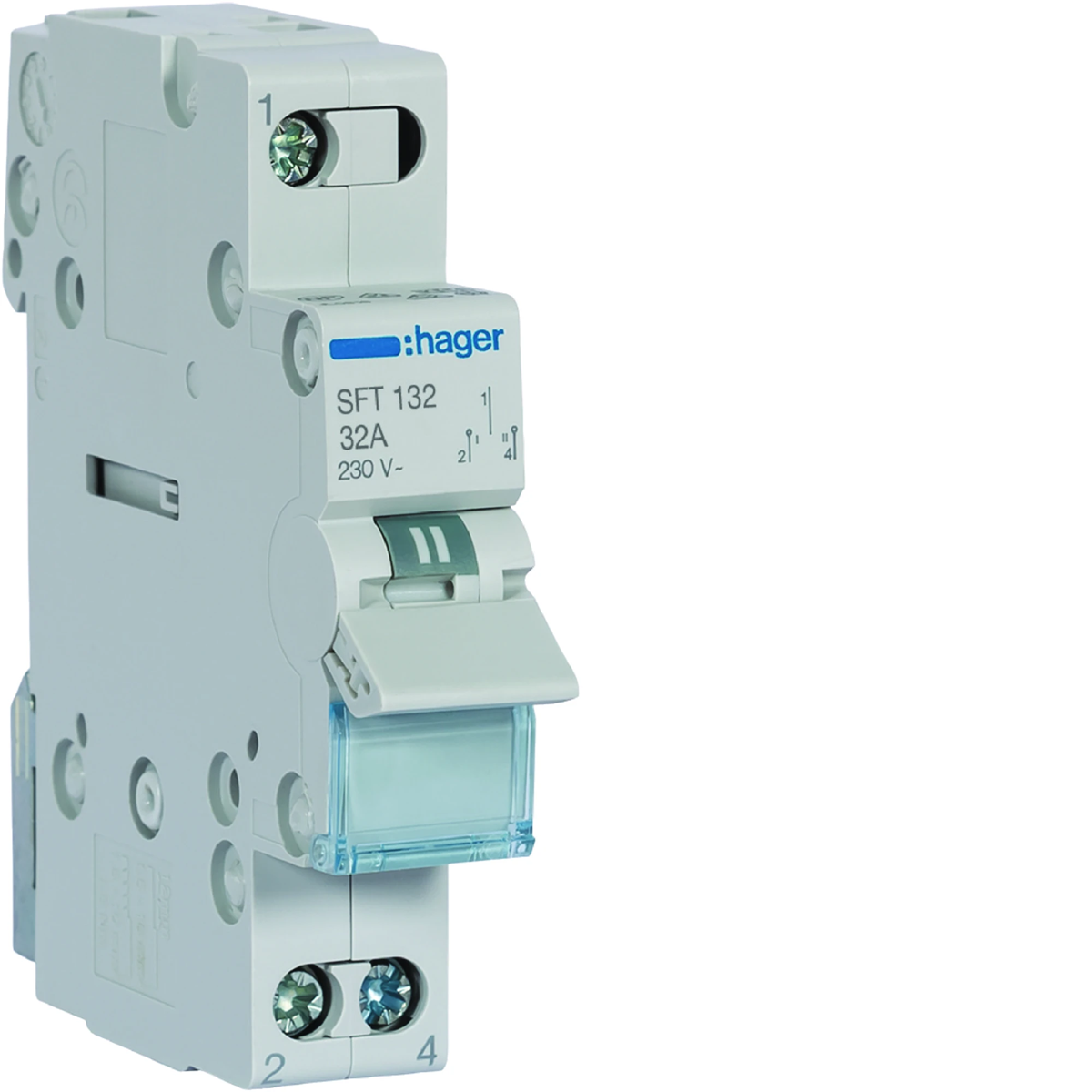

Name: Switch I-0-II supply top 1P 32A
Brand: HAGER
SKU: ALI054HAGE
Price: 17.75 PLN

Hager modular switch disconnectors and power switches are new devices with rated currents from 16 to 125 A, enabling easy and safe switching operations in low voltage switchgear. They have a number of amenities, such as an energy-saving LED signaling diode or the possibility of adding a pomonic contact. Simple operation and accuracy of operation are the features of digital control clocks. Clock programming can be prepared by dedicated software and transferred to the device using programming keys. Modern, energy-saving and even easier to install – is a new, full series of Hager installation contactors and relays, whose technical parameters meet the needs of modern electrotechnical installations.

For switching all types of current circuits. Compliance with: PN-EN 60943-3 and PN-EN 60669-1
All switches have green/red fields on the drive lever for clear visualization of the switch position.
Technical data:
AC operating category -22A
230V/400V
Ie: 16A to 40A size 1.
Connection terminals:
16mm² - wire
10 mm² - cable
It is not possible to use shunt, undervoltage and overvoltage releases of the MZ2xx series.

Rated frequency [Hz]

50/60
Number of poles

1
Connection

With a screw
Rated current [A]

32
Width [mm]

17.5
Mechanical durability (number of cycles)

40000
Number of modules

1

Depth [mm]

70
Rated insulation voltage [V]

440
Surge voltage [V]

6000
power loss [W]

1.5
Height [mm]

83
Rated switching voltage [V]

230
PKWIU

27.33.11.0

Other technical data

Switching function

Two-way switch
Number of contacts as normally closed contact

0
Number of poles

1
Rated voltage

230 V
Rated switching capacity

0.677 kA
Voltage type

AC
Max. lamp power

0 W
Built-in depth

70 mm

Number of contacts as normally open contact

0
Number of contacts as change-over contact

1
Rated current

32 A
Min. rated voltage

230 V
Short-circuit breaking capacity (Icw)

0.48 kA
With signal lamp

No
Width in number of modular spacings

1
Degree of protection (IP)

IP20

A kind of package		Karton	Pakiet
Quantity	1 pcs.	1 pcs.	108 pcs.
Weight (kg)	0,066	0,013	0,542
Width (m)	0,018	0,022	0,308
Length (m)	0,083	0,080	0,210
Depth (m)	0,075	0,095	0,357
