el12 Automation Circuit breakers, disconnectors Switches up to 160A Switch disconnector with signal lamp 2P 25A
Switch disconnector with signal lamp 2P 25A

Click on the photo to enlarge

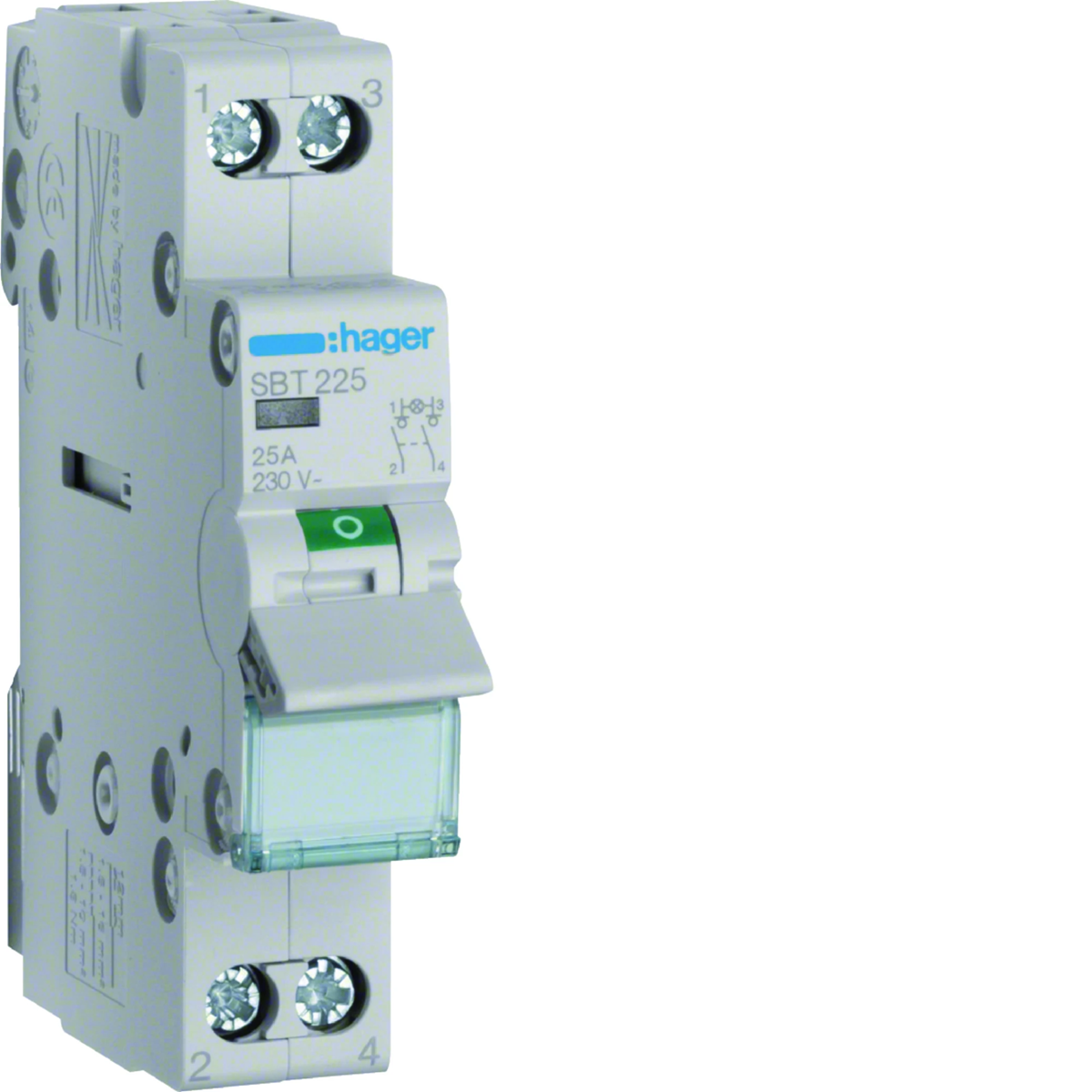

Switch disconnector with signal lamp 2P 25A
HAGER

Switch disconnector with signal lamp 2P 25A SBT225

local index:
ALI231HAGE
Catalog No:
SBT225
EAN code:
3250615511713
Price:
23,80 €
gross / pcs.
including VAT 23%
Availability:
up to 10 weeks (business days)
Delivery:
From 3,45 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

Modular switch disconnectorwith indicator light. Device group: SBT.

Print the product sheet Report an error

Technical data

  • Rated frequency [Hz]
    60
  • Number of poles
    2
  • Rated insulation voltage [V]
    440
  • Family
    SBT
  • power loss [W]
    1.8
  • Width [mm]
    17.5
  • Height [mm]
    83
  • Operating temperature range [°C]
    from -20 to 50
  • Number of modules
    1
  • storage temperature [°C]
    From -40 to 80
  • Wire cross-section (cord) [mm²]
    1.5 - 10
  • Depth [mm]
    68
  • Tightening torque [Nm]
    1.8
  • Rated current [A]
    25
  • Level of security
    IP20
  • Power loss per pole [W]
    0.9
  • Connection type
    With a screw
  • Mechanical durability (number of cycles)
    200000
  • Rated switching voltage [V]
    230
  • Number of NO contacts
    2
  • Rated surge voltage [V]
    4000
  • Conductor cross-section (wire) [mm²]
    1.5 - 16

Other technical data

  • Switching function
    Off switch with control lamp
  • Number of contacts as normally closed contact
    0
  • Number of poles
    2
  • Rated voltage
    230 V
  • Rated switching capacity
    0.529 kA
  • Voltage type
    AC
  • Colour calotte
    Other
  • Lamp socket
    Other
  • Width in number of modular spacings
    1
  • Degree of protection (IP)
    IP20
  • Number of contacts as normally open contact
    2
  • Number of contacts as change-over contact
    0
  • Rated current
    25 A
  • Min. rated voltage
    230 V
  • Short-circuit breaking capacity (Icw)
    0.375 kA
  • With signal lamp
    yes
  • Lamp type
    LED
  • Max. lamp power
    0 W
  • Built-in depth
    68 mm
