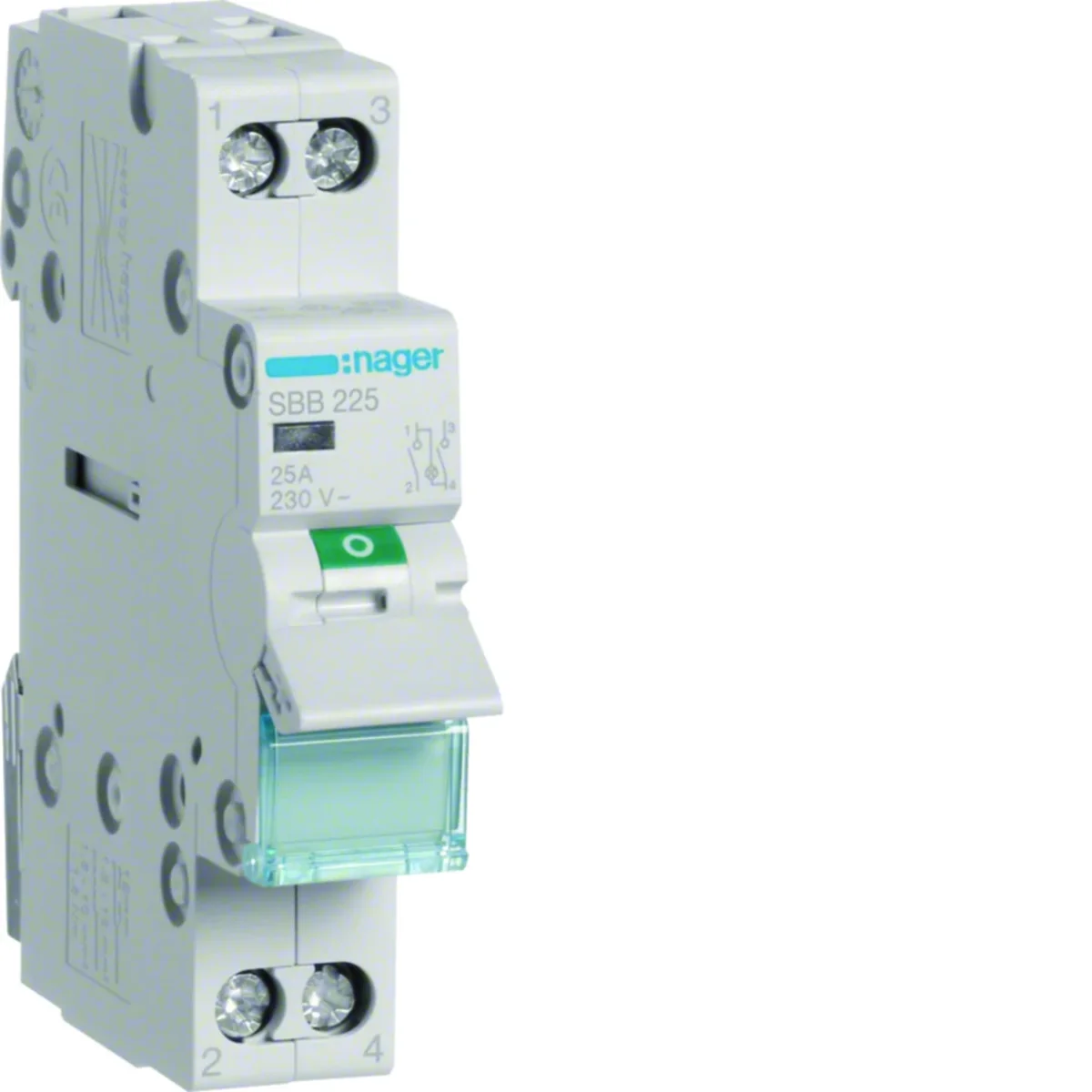

Switch disconnector with signal lamp 2P 25A SBB225

local index:
ALB154HAGE
Catalog No:
SBB225
EAN code:
3250615511737
Manufacturer: HAGER
Rated frequency [Hz]: 60
Depth [mm]: 68
Number of poles: 2
Price:
25,81 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Modular switch disconnectorwith indicator light. Device group: SBB.

Technical data

  • Rated frequency [Hz]
    60
  • Number of poles
    2
  • Rated insulation voltage [V]
    440
  • Family
    SBB
  • power loss [W]
    1.9
  • Width [mm]
    17.5
  • Height [mm]
    83
  • Operating temperature range [°C]
    from -20 to 50
  • Number of modules
    1
  • storage temperature [°C]
    From -40 to 80
  • Rated operational current [A]
    10
  • Conductor cross-section (wire) [mm²]
    1.5 - 16
  • Depth [mm]
    68
  • Tightening torque [Nm]
    1.8
  • Rated current [A]
    25
  • Level of security
    IP20
  • Power loss per pole [W]
    0.9
  • Connection type
    With a screw
  • Mechanical durability (number of cycles)
    200000
  • Rated switching voltage [V]
    230
  • Number of NO contacts
    2
  • Rated surge voltage [V]
    4000
  • Wire cross-section (cord) [mm²]
    1.5 - 10
  • PKWIU
    27.33.11.0

Other technical data

  • Switching function
    Off switch with control lamp
  • Number of contacts as normally closed contact
    0
  • Number of poles
    2
  • Rated voltage
    230 V
  • Rated switching capacity
    0.529 kA
  • Voltage type
    AC
  • Colour calotte
    Other
  • Lamp socket
    Other
  • Width in number of modular spacings
    1
  • Degree of protection (IP)
    IP20
  • Number of contacts as normally open contact
    2
  • Number of contacts as change-over contact
    0
  • Rated current
    25 A
  • Min. rated voltage
    230 V
  • Short-circuit breaking capacity (Icw)
    0.375 kA
  • With signal lamp
    Yes
  • Lamp type
    LED
  • Max. lamp power
    0 W
  • Built-in depth
    68 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 108 pcs. 2592 pcs.
Weight (kg) 0,066 0,080 9,140 242,360
Width (m) 0,018 0,080 0,315 0,800
Length (m) 0,083 0,023 0,215 1,010
Depth (m) 0,073 0,093 0,360 1,200
