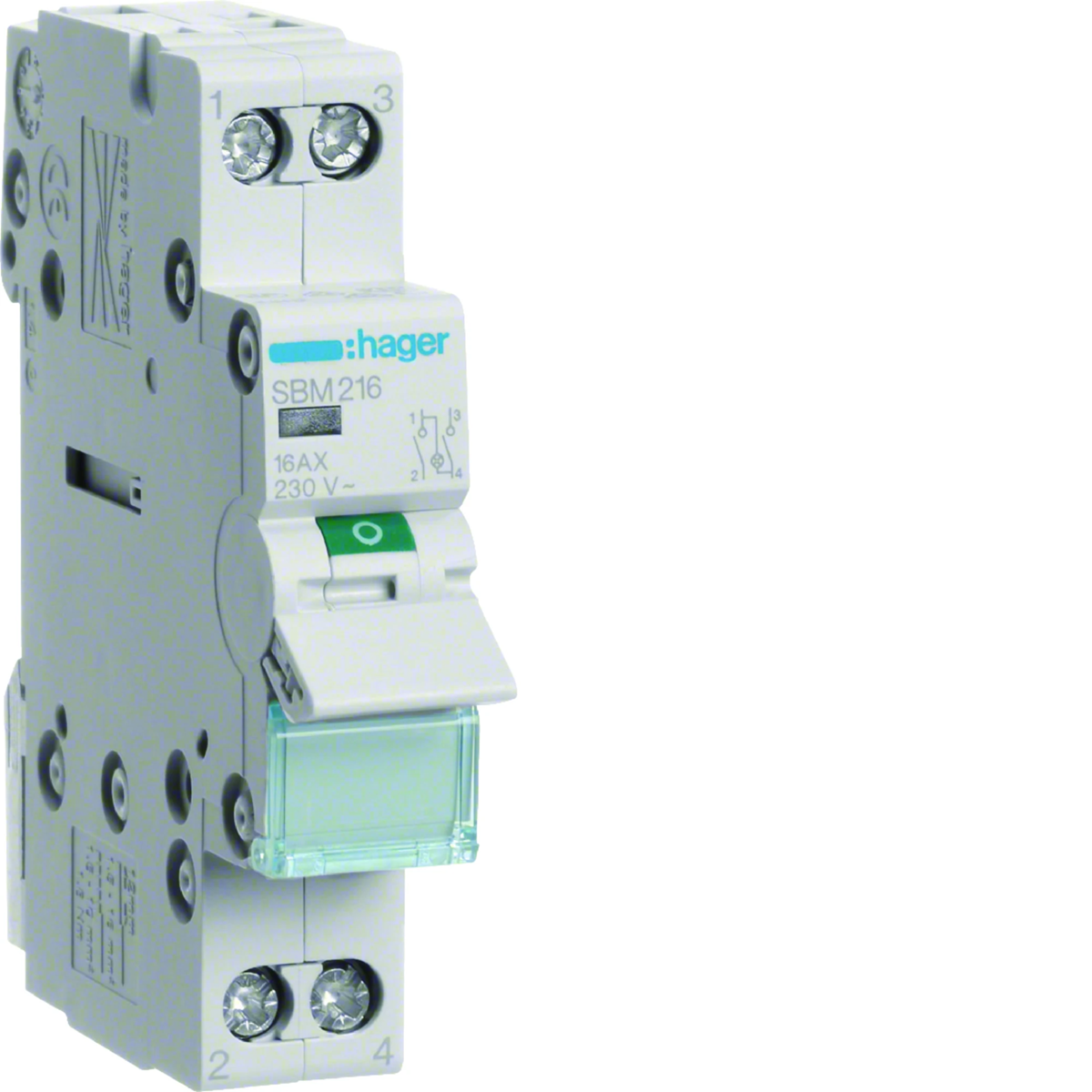

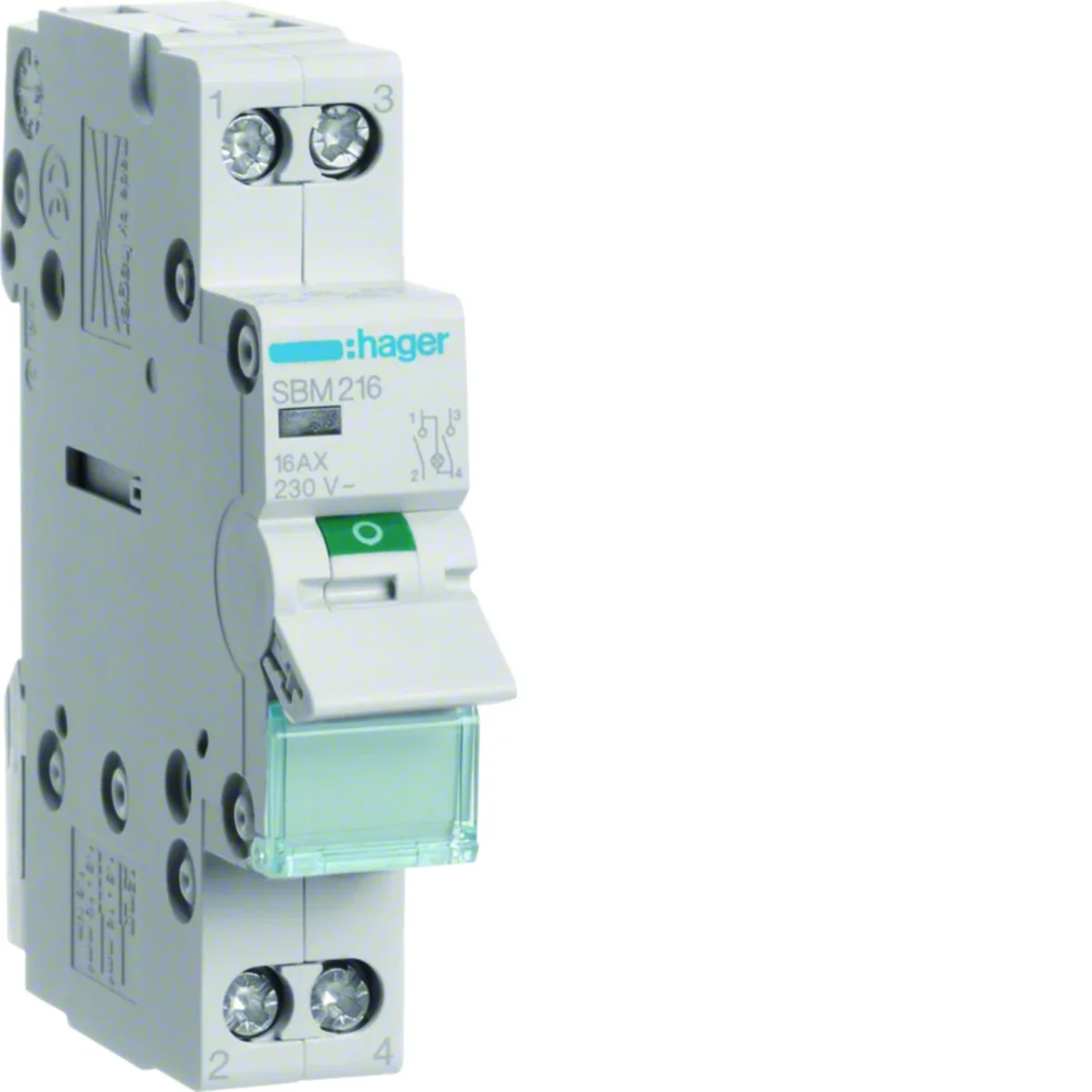

Switch disconnector with signal lamp 2P 16A SBM216
local index:
ALB156HAGE
Catalog No:
SBM216
EAN code:
3250615511751
Price:
17,22 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Modular switch disconnectorwith indicator light. Device group: SBM.
Technical data
-
Rated frequency [Hz]60
-
Number of poles2
-
Rated insulation voltage [V]440
-
FamilySBM
-
power loss [W]0.8
-
Width [mm]17.5
-
Height [mm]83
-
Operating temperature range [°C]from -20 to 50
-
Number of modules1
-
storage temperature [°C]From -40 to 80
-
Wire cross-section (cord) [mm²]1.5 - 10
-
PKWIU27.33.11.0
-
Depth [mm]68
-
Tightening torque [Nm]1.8
-
Rated current [A]16
-
Level of securityIP20
-
Power loss per pole [W]0.4
-
Connection typeWith a screw
-
Mechanical durability (number of cycles)200000
-
Rated switching voltage [V]230
-
Number of NO contacts2
-
Rated surge voltage [V]4000
-
Conductor cross-section (wire) [mm²]1.5 - 16
Other technical data
-
Switching functionOff switch with control lamp
-
Number of contacts as normally closed contact0
-
Number of poles2
-
Rated voltage230 V
-
Rated switching capacity0.338 kA
-
Voltage typeAC
-
Colour calotteOther
-
Lamp socketOther
-
Width in number of modular spacings1
-
Degree of protection (IP)IP20
-
Number of contacts as normally open contact2
-
Number of contacts as change-over contact0
-
Rated current16 A
-
Min. rated voltage230 V
-
Short-circuit breaking capacity (Icw)0.24 kA
-
With signal lampYes
-
Lamp typeLED
-
Max. lamp power0 W
-
Built-in depth68 mm
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | |
| Quantity | 1 pcs. | 1 pcs. | 108 pcs. |
| Weight (kg) | 0,001 | 0,013 | 0,542 |
| Width (m) | 0,001 | 0,022 | 0,308 |
| Length (m) | 0,001 | 0,080 | 0,210 |
| Depth (m) | 0,001 | 0,095 | 0,357 |
