Switch disconnector with fuses 4-pole NH2 630A HFD463

Name: Switch disconnector with fuses 4-pole NH2 630A
Brand: HAGER
SKU: ALB172HAGE
Price: 10345.21 PLN
Availability: BackOrder

Index local:

ALB172HAGE

Numéro de catalogue:

HFD463

Code EAN:

3250613130411

Switch disconnector with fuses 4-pole NH2 630A

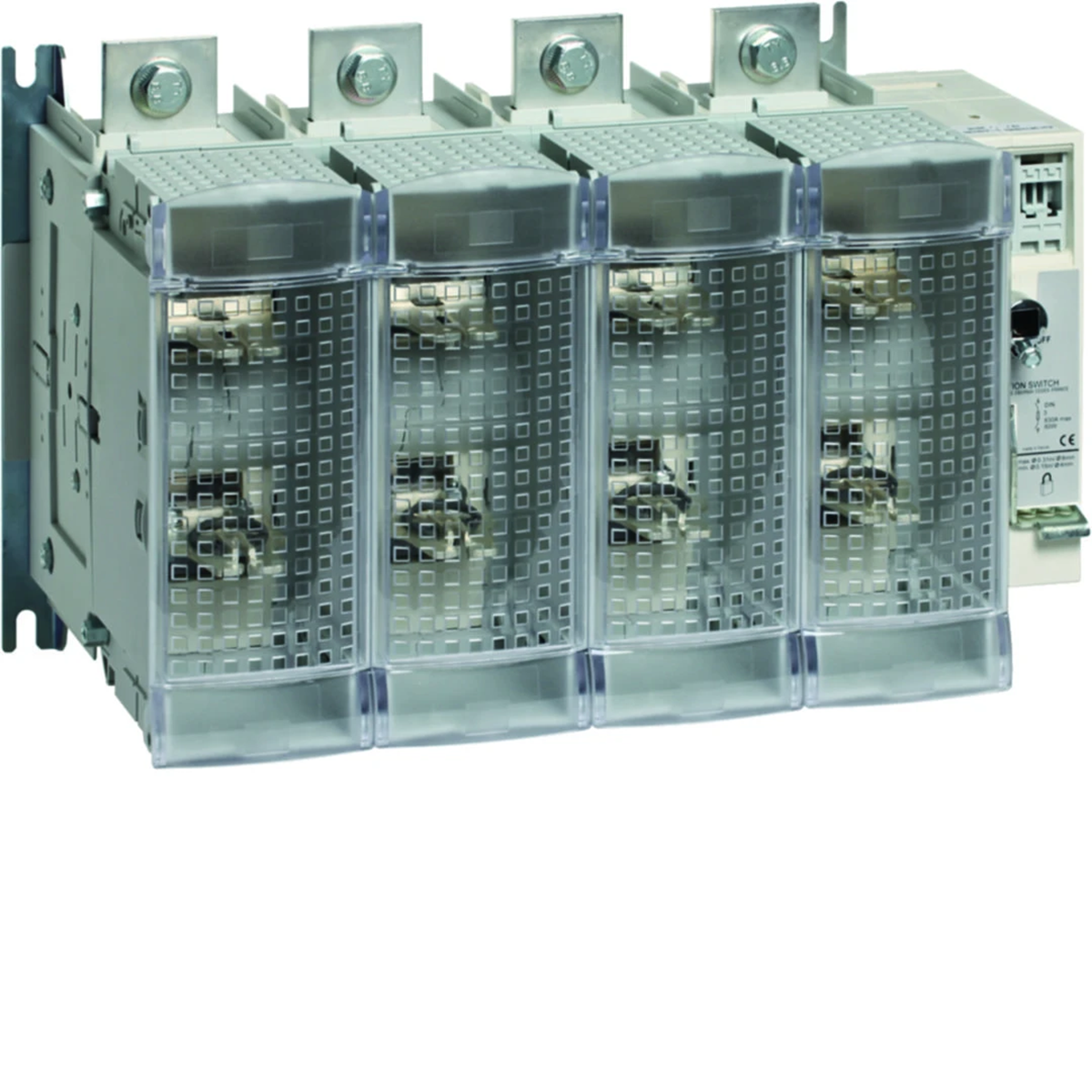

Cliquer sur la photo pour l'agrandir

Producteur: HAGER

Length [mm]: 250

Color: Gray

Number of poles: 4

Voir la description complète

Prix:

10 345,21 zł

gross / pcs.

(y compris la TVA 23%)

jusqu'à 10 semaines

Sur commande

Quantité pcs.

(plusieurs:

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac Fichiers à télécharger

Description du produit

Switch disconnector with fuses is a perfectly adapted device to meet the current requirements resulting from everyday electrical installation practice. Various connection options and a wide range of equipment allow for the implementation without much effort, even unusual solutions on the implemented facilities.

4-pole,
630A.

Données techniques

Length [mm]

250
Number of poles

4
Rated current [A]

630
power loss [W]

488
Width [mm]

458
Height [mm]

300
PKWIU

27.12.23.0

Color

Gray
Rated insulation voltage [V]

1000
Level of security

IP65
Power loss per pole [W]

122
Fuse link size

NH3
Rated switching voltage [V]

380/415

Autres données techniques

Version as main switch

Yes
Max. rated operation voltage Ue AC

415 V
Rated operation power at AC-23, 400 V

283 kW
Suitable for fuses

NH3
With error protection

No
Cable entry

Other
Suitable for busbar mounting

No
Position control element

Front side
Motor drive integrated

No
Degree of protection (IP), front side

IP00

Version as safety switch

No
Rated permanent current Iu

630 A
Conditioned rated short-circuit current Iq

100 kA
Number of poles

4
Type of electrical connection of main circuit

Cable clamp
Equipped with connectors

No
Type of control element

Door coupling rotary drive
Motor drive optional

No
Version as emergency stop installation

No

Détails du fabricant

Producteur

Hager Electro S.A.S.
Adresse

FR 67215 Obernai 123 boulevard d’Europe Francja
E-mail

wsparcie.klienta@hager.com

Emballage en vrac

Une sorte de paquet	Karton	Paleta
Quantité	1 pcs.	8 pcs.
poids (kg)	20,565	187,520
Largeur (m)	0,400	0,800
Longueur (m)	0,440	1,050
Profondeur (m)	0,530	1,200
