Switch disconnector with fuses 4-pole NH2 400A HFD440

Name: Switch disconnector with fuses 4-pole NH2 400A
Brand: HAGER
SKU: ALB171HAGE
Price: 1296.73 PLN

local index:

ALB171HAGE

Catalog No:

HFD440

EAN code:

3250613130398

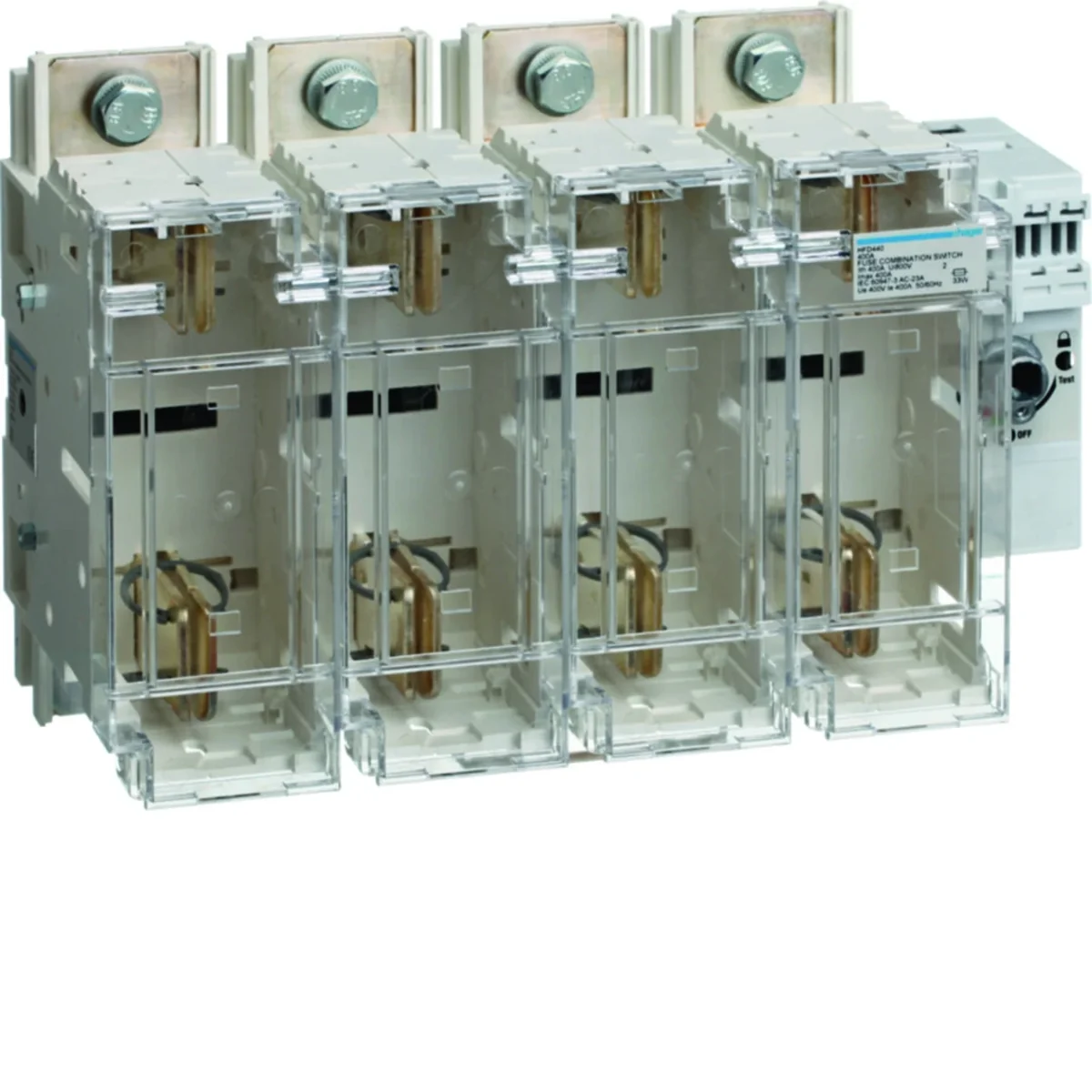

Switch disconnector with fuses 4-pole NH2 400A

Click on the photo to enlarge

Manufacturer: HAGER

Length [mm]: 180

Color: Gray

Number of poles: 4

See full description

Price:

1296,73 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Switch disconnector with fuses is a perfectly adapted device to meet the current requirements resulting from everyday electrical installation practice. Various connection options and a wide range of equipment allow for the implementation without much effort, even unusual solutions on the implemented facilities.

4-pole,
400A.

Technical data

Length [mm]

180
Number of poles

4
Rated current [A]

400
power loss [W]

229.6
Width [mm]

325
Height [mm]

240
PKWIU

27.12.23.0

Color

Gray
Rated insulation voltage [V]

800
Level of security

IP55
Power loss per pole [W]

57.4
Fuse link size

NH2
Rated switching voltage [V]

380/415

Other technical data

Version as main switch

Yes
Max. rated operation voltage Ue AC

415 V
Rated operation power at AC-23, 400 V

180 kW
Suitable for fuses

NH2
With error protection

Yes
Suitable for floor mounting

Yes
Suitable for busbar mounting

Yes
Position control element

Front side
Motor drive integrated

Yes
Degree of protection (IP), front side

IP55

Version as safety switch

Yes
Rated permanent current Iu

400 A
Conditioned rated short-circuit current Iq

100 kA
Number of poles

4
Type of electrical connection of main circuit

Screw connection
Suitable for front mounting

Yes
Type of control element

Door coupling rotary drive
Motor drive optional

Yes
Version as emergency stop installation

Yes

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	1 pcs.	24 pcs.
Weight (kg)	5,700	6,260	6,260	173,240
Width (m)	0,316	0,235	0,235	0,800
Length (m)	0,204	0,220	0,220	1,150
Depth (m)	0,149	0,360	0,360	1,200
