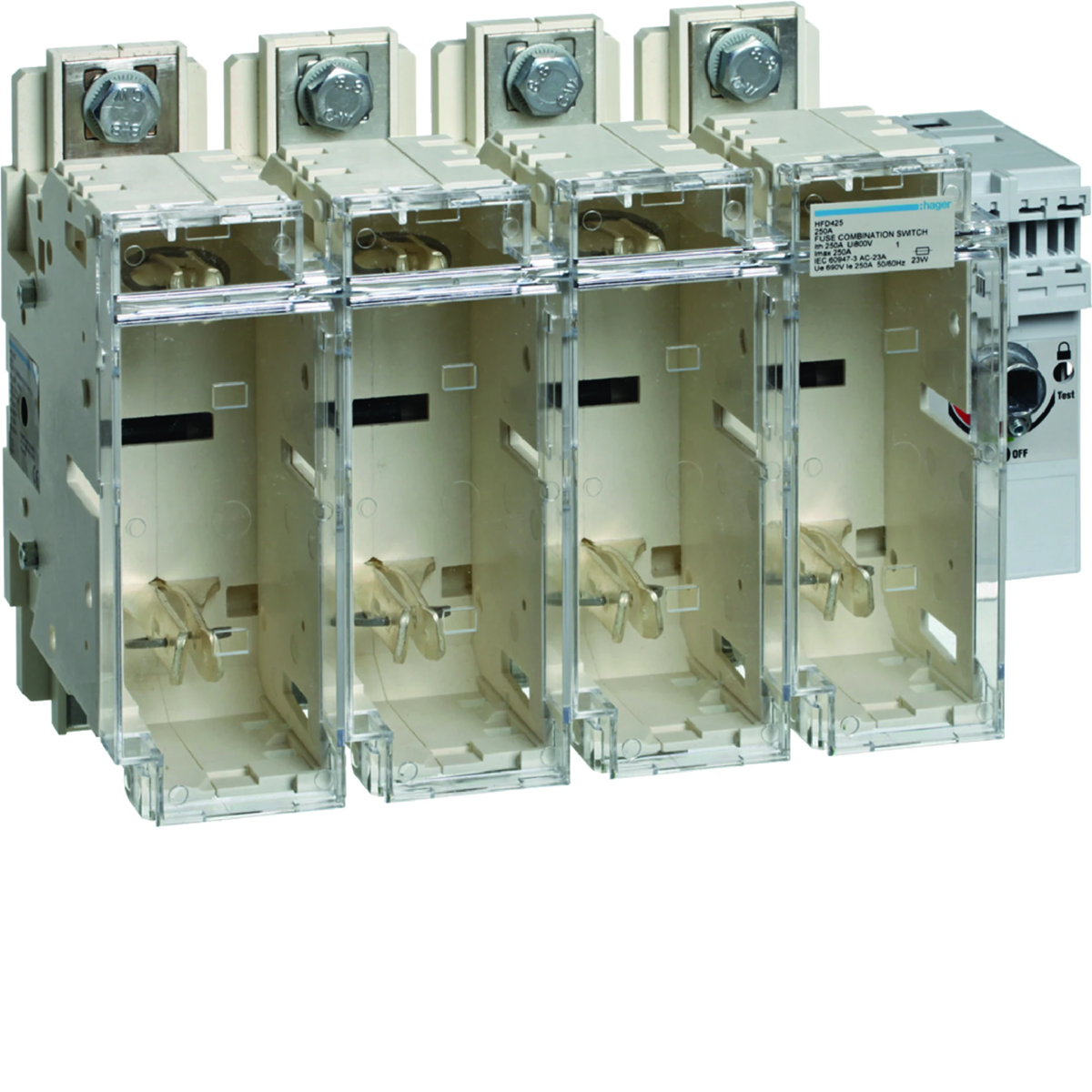

Switch disconnector with fuses 4-pole NH1 250A HFD425

local index:
ALB170HAGE
Catalog No:
HFD425
EAN code:
3250613130374
Manufacturer: HAGER
Length [mm]: 146
Color: Gray
Number of poles: 4
Price:
893,21 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Switch disconnector with fuses is a perfectly adapted device to meet the current requirements resulting from everyday electrical installation practice. Various connection options and a wide range of equipment allow for the implementation without much effort, even unusual solutions on the implemented facilities.

  • 4-pole,
  • 250A.

Technical data

  • Length [mm]
    146
  • Number of poles
    4
  • Rated current [A]
    250
  • power loss [W]
    164.4
  • Width [mm]
    294
  • Height [mm]
    195
  • PKWIU
    27.12.23.0
  • Color
    Gray
  • Rated insulation voltage [V]
    750
  • Level of security
    IP55
  • Power loss per pole [W]
    41.1
  • Fuse link size
    NH1
  • Rated switching voltage [V]
    380/415

Other technical data

  • Version as main switch
    Yes
  • Max. rated operation voltage Ue AC
    415 V
  • Rated operation power at AC-23, 400 V
    112 kW
  • Suitable for fuses
    NH1
  • With error protection
    Yes
  • Suitable for floor mounting
    Yes
  • Suitable for busbar mounting
    Yes
  • Position control element
    Front side
  • Motor drive integrated
    Yes
  • Degree of protection (IP), front side
    IP55
  • Version as safety switch
    Yes
  • Rated permanent current Iu
    250 A
  • Conditioned rated short-circuit current Iq
    100 kA
  • Number of poles
    4
  • Type of electrical connection of main circuit
    Screw connection
  • Suitable for front mounting
    Yes
  • Type of control element
    Door coupling rotary drive
  • Motor drive optional
    Yes
  • Version as emergency stop installation
    Yes

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 24 pcs.
Weight (kg) 4,400 4,520 130,600
Width (m) 0,294 0,210 0,800
Length (m) 0,146 0,195 0,735
Depth (m) 0,345 0,335 1,200
