Switch disconnector with fuses 4-pole NH000 63A HFD406

Name: Switch disconnector with fuses 4-pole NH000 63A
Brand: HAGER
SKU: ALB167HAGE
Price: 1277.92 PLN
Availability: BackOrder

Index local:

ALB167HAGE

Numéro de catalogue:

HFD406

Code EAN:

3250613130312

Switch disconnector with fuses 4-pole NH000 63A

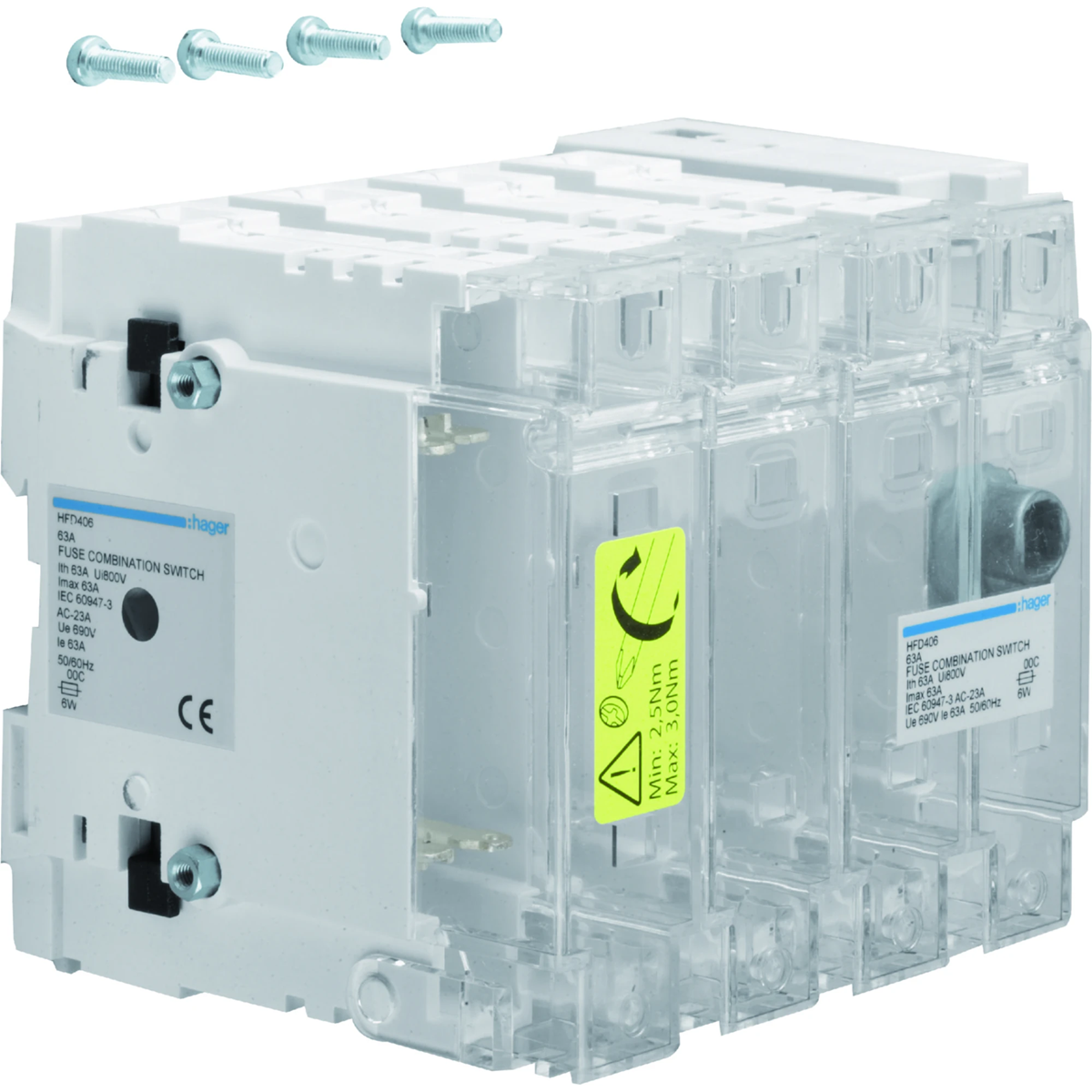

Cliquer sur la photo pour l'agrandir

Producteur: HAGER

Length [mm]: 116.5

Color: Gray

Number of poles: 4

Voir la description complète

Prix:

1 277,92 zł

gross / pcs.

(y compris la TVA 23%)

jusqu'à 10 semaines

Sur commande

Quantité pcs.

(plusieurs:

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac Fichiers à télécharger

Description du produit

Switch disconnector with fuses is a perfectly adapted device to meet the current requirements resulting from everyday electrical installation practice. Various connection options and a wide range of equipment allow for the implementation without much effort, even unusual solutions on the implemented facilities.

4-pole,
63A.

Données techniques

Length [mm]

116.5
Number of poles

4
Rated current [A]

63
power loss [W]

33.6
Width [mm]

168
Height [mm]

118
PKWIU

27.12.23.0

Color

Gray
Rated insulation voltage [V]

750
Level of security

IP55
Power loss per pole [W]

8.4
Fuse link size

NH000
Rated switching voltage [V]

380/415

Autres données techniques

Version as main switch

Yes
Max. rated operation voltage Ue AC

415 V
Rated operation power at AC-23, 400 V

28 kW
Suitable for fuses

NH000
With error protection

Yes
Suitable for floor mounting

Yes
Suitable for busbar mounting

Yes
Position control element

Front side
Motor drive integrated

Yes
Degree of protection (IP), front side

IP55

Version as safety switch

Yes
Rated permanent current Iu

63 A
Conditioned rated short-circuit current Iq

100 kA
Number of poles

4
Type of electrical connection of main circuit

Screw connection
Suitable for front mounting

Yes
Type of control element

Door coupling rotary drive
Motor drive optional

Yes
Version as emergency stop installation

Yes
