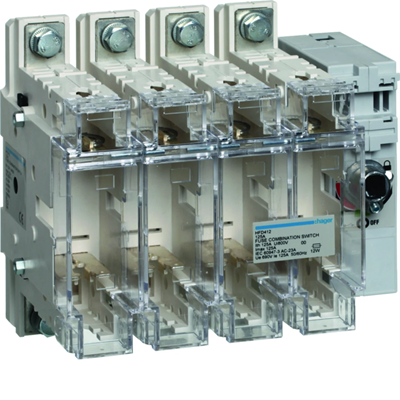

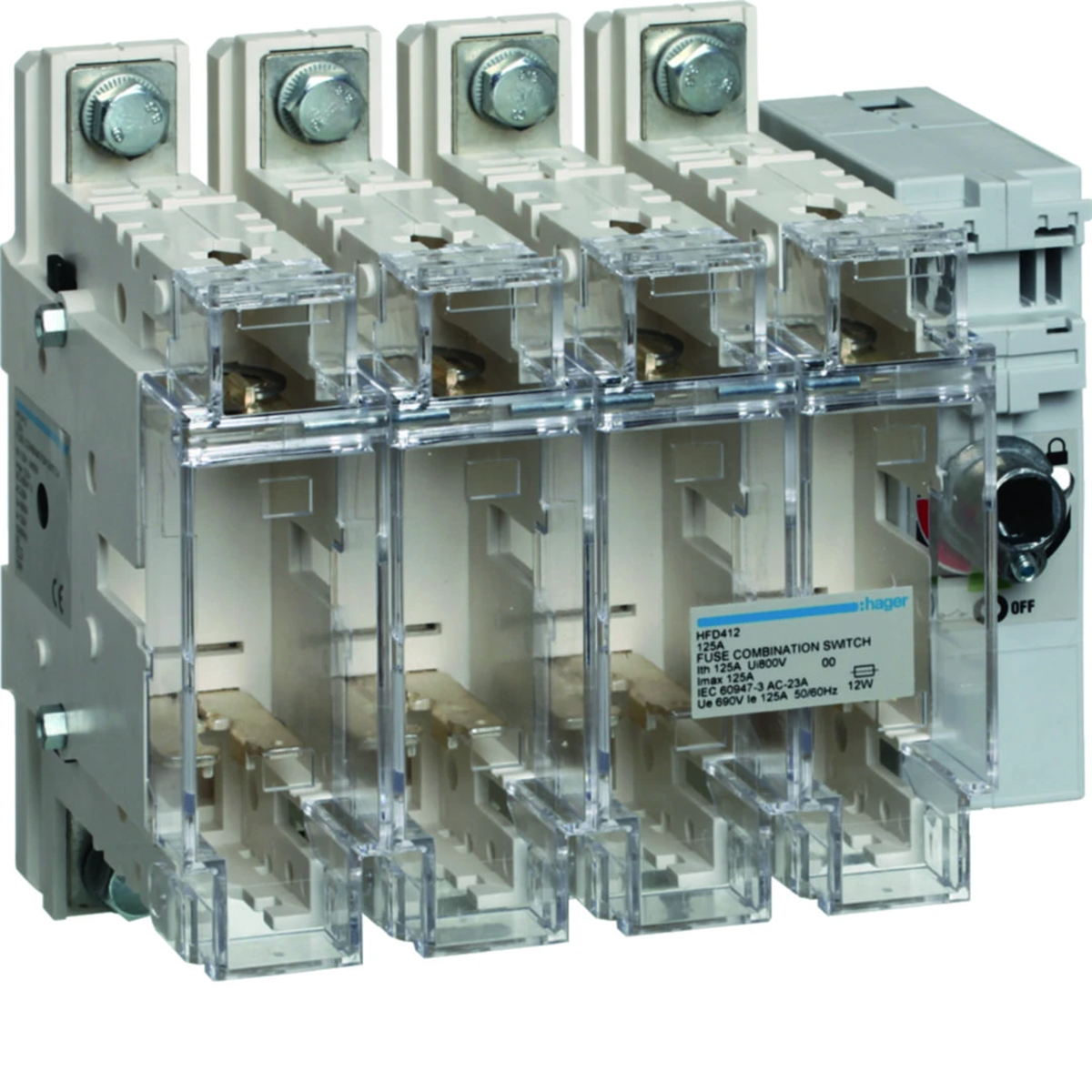

Name: Switch disconnector with fuses 4-pole NH00 125A
Brand: HAGER
SKU: ALB168HAGE
Price: 374.88 PLN

Switch disconnector with fuses is a perfectly adapted device to meet the current requirements resulting from everyday electrical installation practice. Various connection options and a wide range of equipment allow for the implementation without much effort, even unusual solutions on the implemented facilities.

4-pole,
125A.

Length [mm]

126.5
Number of poles

4
Rated current [A]

125
power loss [W]

81.2
Width [mm]

184
Height [mm]

162
PKWIU

27.12.23.0

Color

Gray
Rated insulation voltage [V]

750
Level of security

IP55
Power loss per pole [W]

20.3
Fuse link size

NH00
Rated switching voltage [V]

380/415

Other technical data

Version as main switch

Yes
Max. rated operation voltage Ue AC

415 V
Rated operation power at AC-23, 400 V

56 kW
Suitable for fuses

NH00
With error protection

Yes
Suitable for floor mounting

Yes
Suitable for busbar mounting

Yes
Position control element

Front side
Motor drive integrated

Yes
Degree of protection (IP), front side

IP55

Version as safety switch

Yes
Rated permanent current Iu

125 A
Conditioned rated short-circuit current Iq

100 kA
Number of poles

4
Type of electrical connection of main circuit

Screw connection
Suitable for front mounting

Yes
Type of control element

Door coupling rotary drive
Motor drive optional

Yes
Version as emergency stop installation

Yes

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	2 pcs.	48 pcs.
Weight (kg)	0,045	2,285	4,960	142,040
Width (m)	0,184	0,170	0,315	0,800
Length (m)	0,116	0,160	0,215	1,034
Depth (m)	0,268	0,215	0,360	1,200
