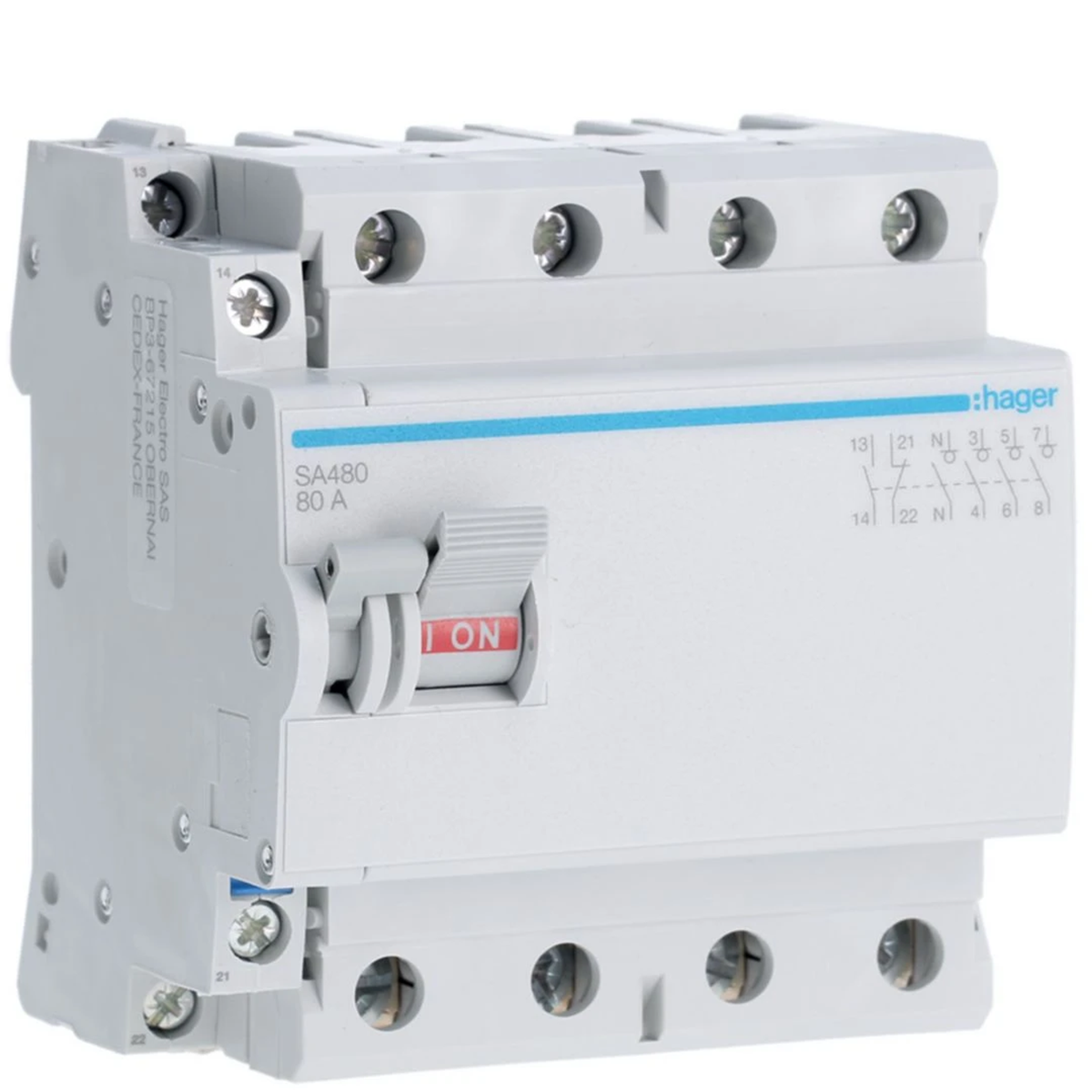

Switch disconnector with auxiliary contacts, 4-pole 80A SA480

local index:
ALB017HAGE
Catalog No:
SA480
EAN code:
3250615514806
Manufacturer: HAGER
Depth [mm]: 68
Number of modules: 4.5
Number of poles: 4
Price:
145,57 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 22 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Modular switch disconnectors with tripping capability. Switch disconnectors equipped with CA 1NO+1NC auxiliary contacts for connection of contact position signalling. Additional SD signaling contacts, triggers or a locking mechanism can be added as additional equipment.

Technical data

  • Depth [mm]
    68
  • Number of poles
    4
  • Rated current [A]
    80
  • Height [mm]
    83
  • PKWIU
    27.12.22.0
  • Number of modules
    4.5
  • Rated voltage [V]
    230
  • Width [mm]
    79
  • Number of modules
    4.5

Other technical data

  • Switching function
    Off switch
  • Number of contacts as normally closed contact
    1
  • Number of poles
    4
  • Rated voltage
    415 V
  • Voltage type
    AC
  • Max. lamp power
    0 W
  • Built-in depth
    68 mm
  • Number of contacts as normally open contact
    5
  • Number of contacts as change-over contact
    0
  • Rated current
    80 A
  • Min. rated voltage
    230 V
  • With signal lamp
    No
  • Width in number of modular spacings
    4.5
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 24 pcs. 576 pcs.
Weight (kg) 0,374 0,375 9,500 251,000
Width (m) 0,082 0,085 0,315 0,800
Length (m) 0,097 0,095 0,210 1,006
Depth (m) 0,099 0,100 0,360 1,200
