Switch disconnector with auxiliary contact, 2-pole, 63A SA263

Name: Switch disconnector with auxiliary contact, 2-pole, 63A
Brand: HAGER
SKU: ALB048HAGE
Price: 95.10 PLN

local index:

ALB048HAGE

Catalog No:

SA263

EAN code:

3250615512635

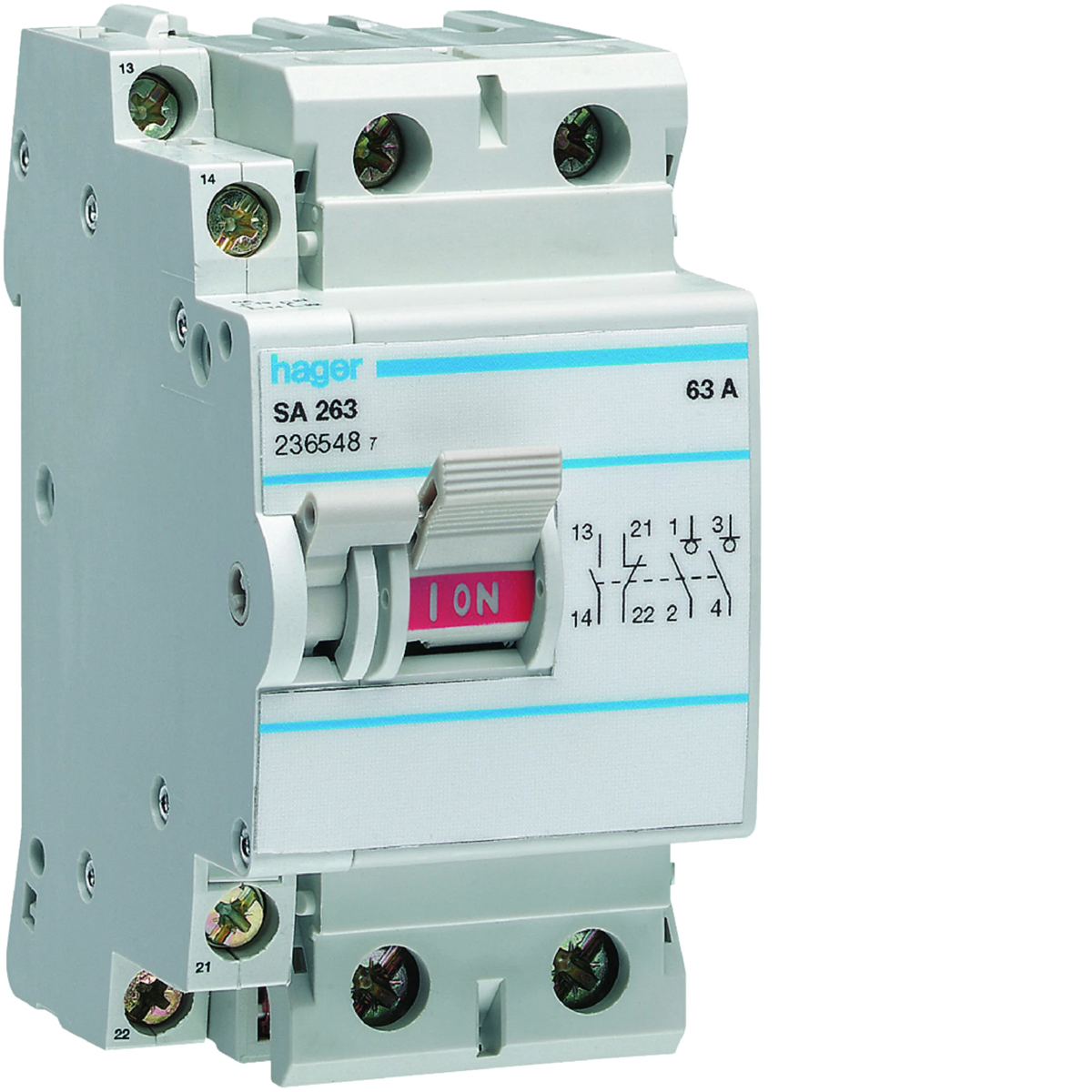

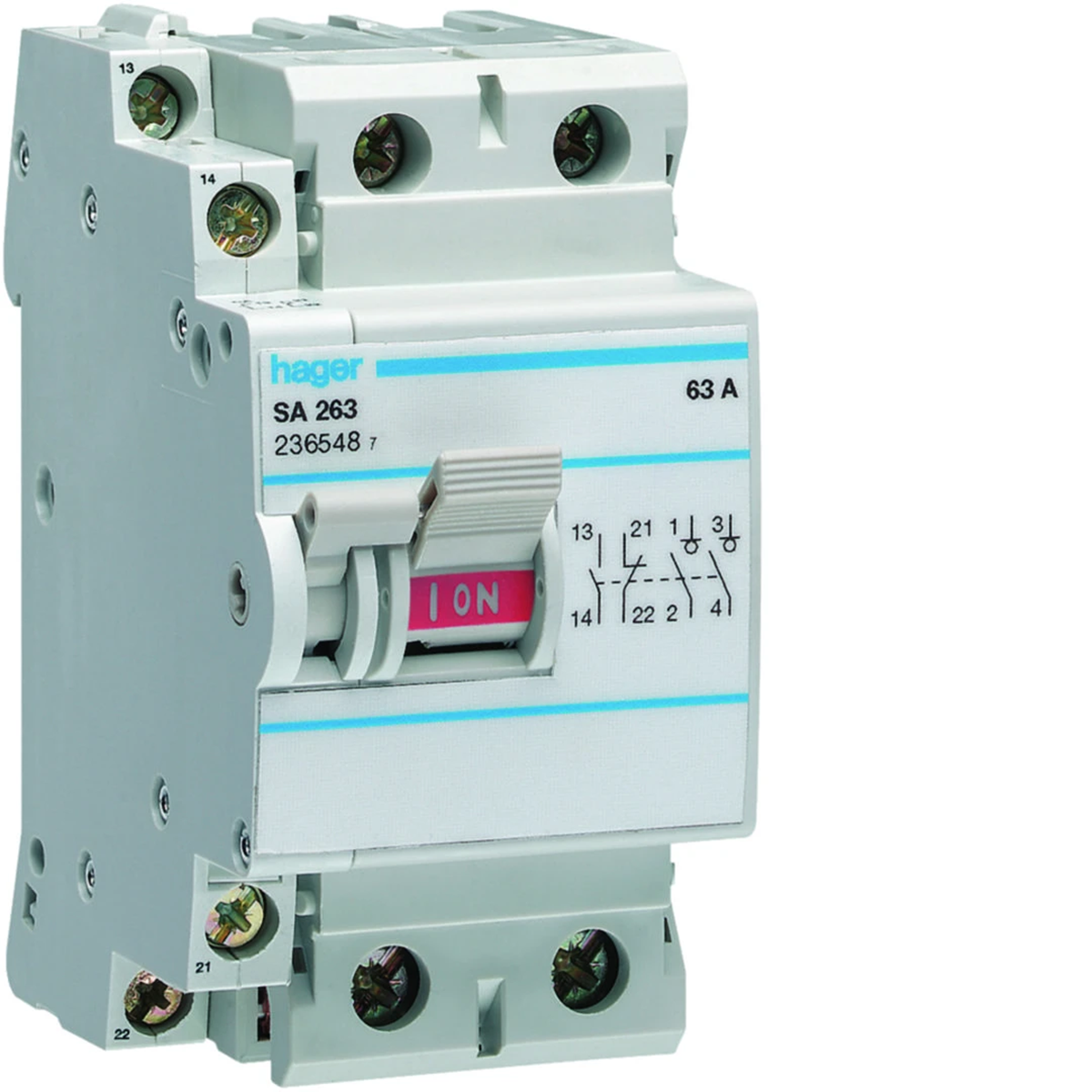

Switch disconnector with auxiliary contact, 2-pole, 63A

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 68

Number of poles: 2

Tightening torque [Nm]: 2.7

See full description

Price:

95,10 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Remote breaking
Switch disconnectors equipped with auxiliary contacts CA 1NO+1NC for connection of contact position signalling. Additional SD signaling contacts, triggers or a locking mechanism can be added as additional equipment.
Connection:
Switch main contacts:
• 16 mm² - stranded
• 25 mm² - wire
Switch disconnector auxiliary contacts:
• 0.5 to 4 mm² - stranded
• 1 to 6 mm² - wire
Compliance with the standards: PN-EN 60947-2 and PN-EN 60947-3
Connection category: AC-23A

Technical data

Depth [mm]

68
Tightening torque [Nm]

2.7
power loss [W]

7.14
Working temperature [°C]

-25 to 40
Connection type

With a screw
AC rated voltage [V]

230

Number of poles

2
Rated current [A]

63
Width [mm]

44
Height [mm]

83
Number of modules

2.5
PKWIU

27.12.22.0

Other technical data

Switching function

Off switch
Number of contacts as normally closed contact

1
Number of poles

2
Rated voltage

230 V
Voltage type

AC
Max. lamp power

0 W
Built-in depth

68 mm

Number of contacts as normally open contact

3
Number of contacts as change-over contact

0
Rated current

63 A
Min. rated voltage

230 V
With signal lamp

No
Width in number of modular spacings

2.5
Degree of protection (IP)

IP20

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	48 pcs.	1152 pcs.
Weight (kg)	0,215	0,230	11,370	295,880
Width (m)	0,044	0,080	0,315	0,800
Length (m)	0,087	0,060	0,210	1,118
Depth (m)	0,072	0,095	0,360	1,200
