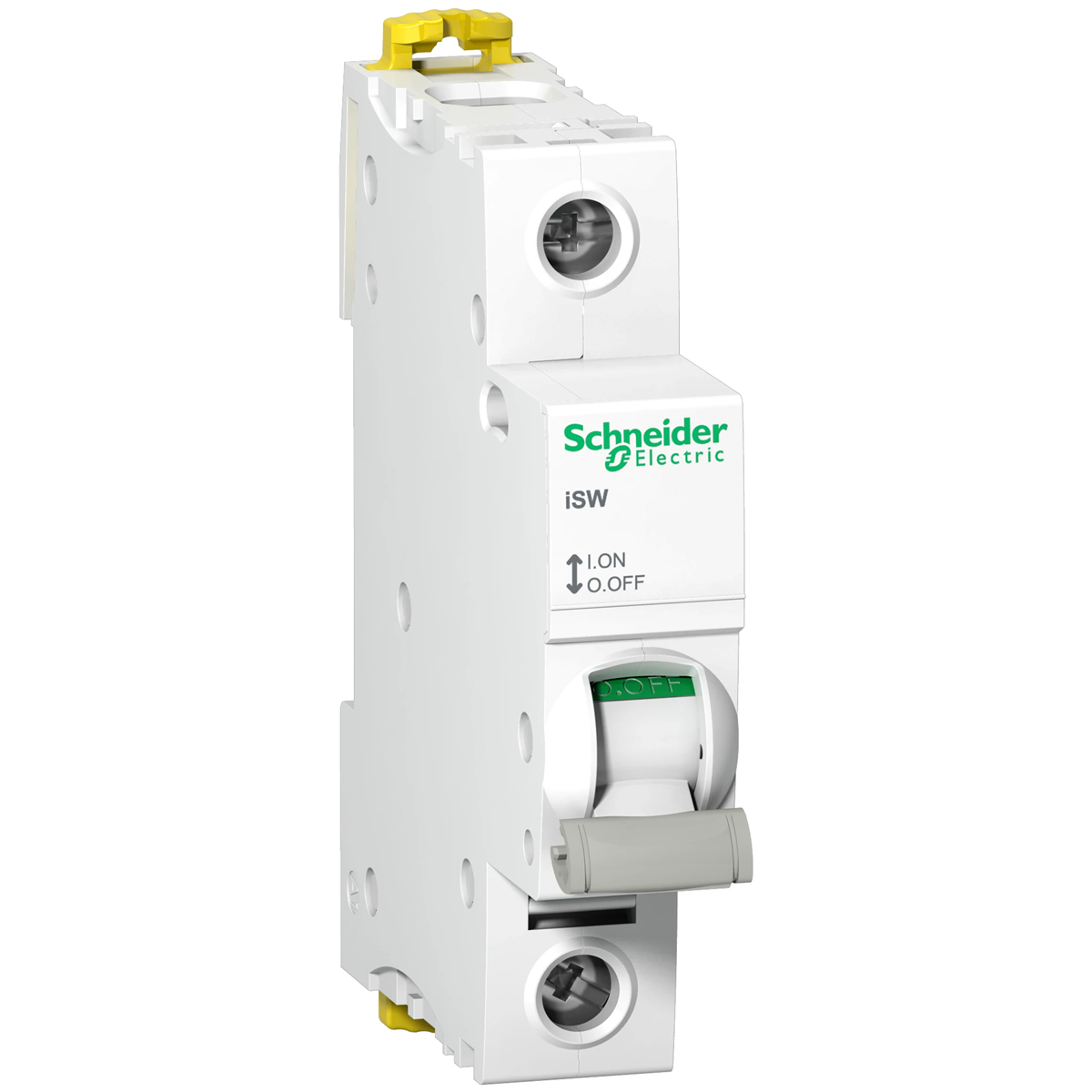

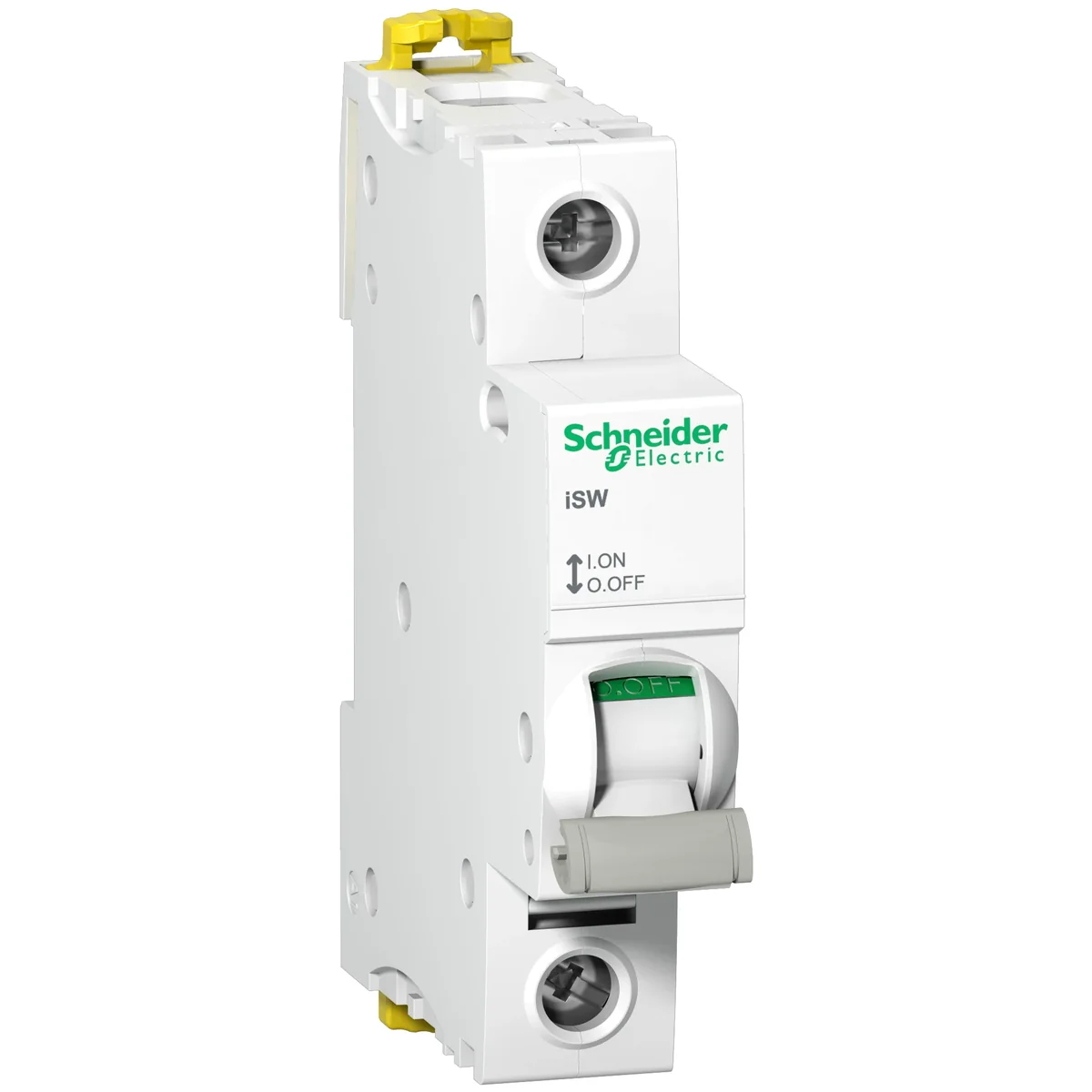

Switch disconnector iSW-40-1 40A 1-pole A9S65140

local index:
ALI038SCHN
Catalog No:
A9S65140
EAN code:
3606480531040
Price:
9,37 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Switch disconnector iSW-40-1 40A 1-pole

Technical data

  • Color
    White
  • PKWIU
    27.33.13.0

Other technical data

  • Switching function
    Off switch
  • Number of contacts as normally closed contact
    0
  • Number of poles
    1
  • Rated voltage
    240 V
  • Rated switching capacity
    5 kA
  • Voltage type
    AC
  • Colour calotte
    Grey
  • Built-in depth
    75.5 mm
  • Number of contacts as normally open contact
    1
  • Number of contacts as change-over contact
    0
  • Rated current
    40 A
  • Min. rated voltage
    240 V
  • Short-circuit breaking capacity (Icw)
    1.26 kA
  • With signal lamp
    No
  • Width in number of modular spacings
    1
  • Degree of protection (IP)
    IP20
