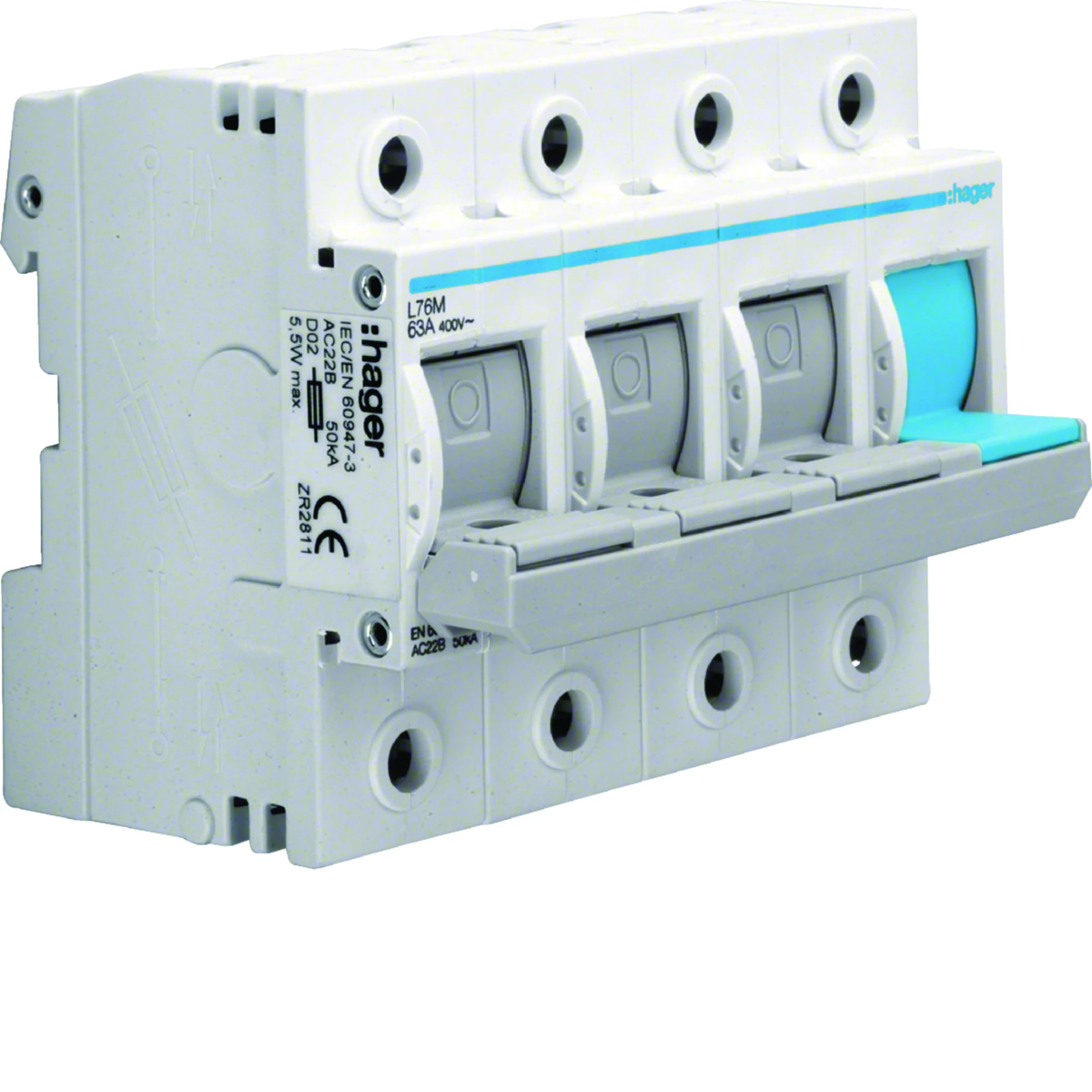

Switch disconnector Fuse D02 3P+N 63A L76M
local index:
ALB030HAGE
Catalog No:
L76M
EAN code:
3250610740859
Price:
118,60 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
D02 modular fuse switch disconnectors • standards: DIN VDE 0660 part 107, EN 60947-3
• rated current 63A
• rated voltage
- AC 400 V
- DC 1-pole 110V, 2-pole 220V
• short-circuit withstand current Icm 50kA - AC22B
• fuse blown indication (blinking LED)
• mounting on TS35 rail
• circuit N disconnectable, equipped with a jumper
• rated current 63A
• rated voltage
- AC 400 V
- DC 1-pole 110V, 2-pole 220V
• short-circuit withstand current Icm 50kA - AC22B
• fuse blown indication (blinking LED)
• mounting on TS35 rail
• circuit N disconnectable, equipped with a jumper
Technical data
-
Energy lost in cables [W]19.8
-
Number of modules6
-
Rated voltage [V]440
-
Power dissipation [W]5.6
-
Height [mm]85
-
PKWIU27.12.23.0
-
Depth [mm]70
-
Number of poles4
-
Rated current [A]63
-
Width [mm]108
-
Number of modules6
Other technical data
-
Number of poles4
-
Rated voltage400 V
-
Construction sizeD02
-
Rated current63 A
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 3 pcs. | 18 pcs. | 432 pcs. |
| Weight (kg) | 0,479 | 1,445 | 9,040 | 241,960 |
| Width (m) | 0,108 | 0,100 | 0,315 | 0,800 |
| Length (m) | 0,085 | 0,090 | 0,215 | 1,050 |
| Depth (m) | 0,044 | 0,335 | 0,360 | 1,200 |
