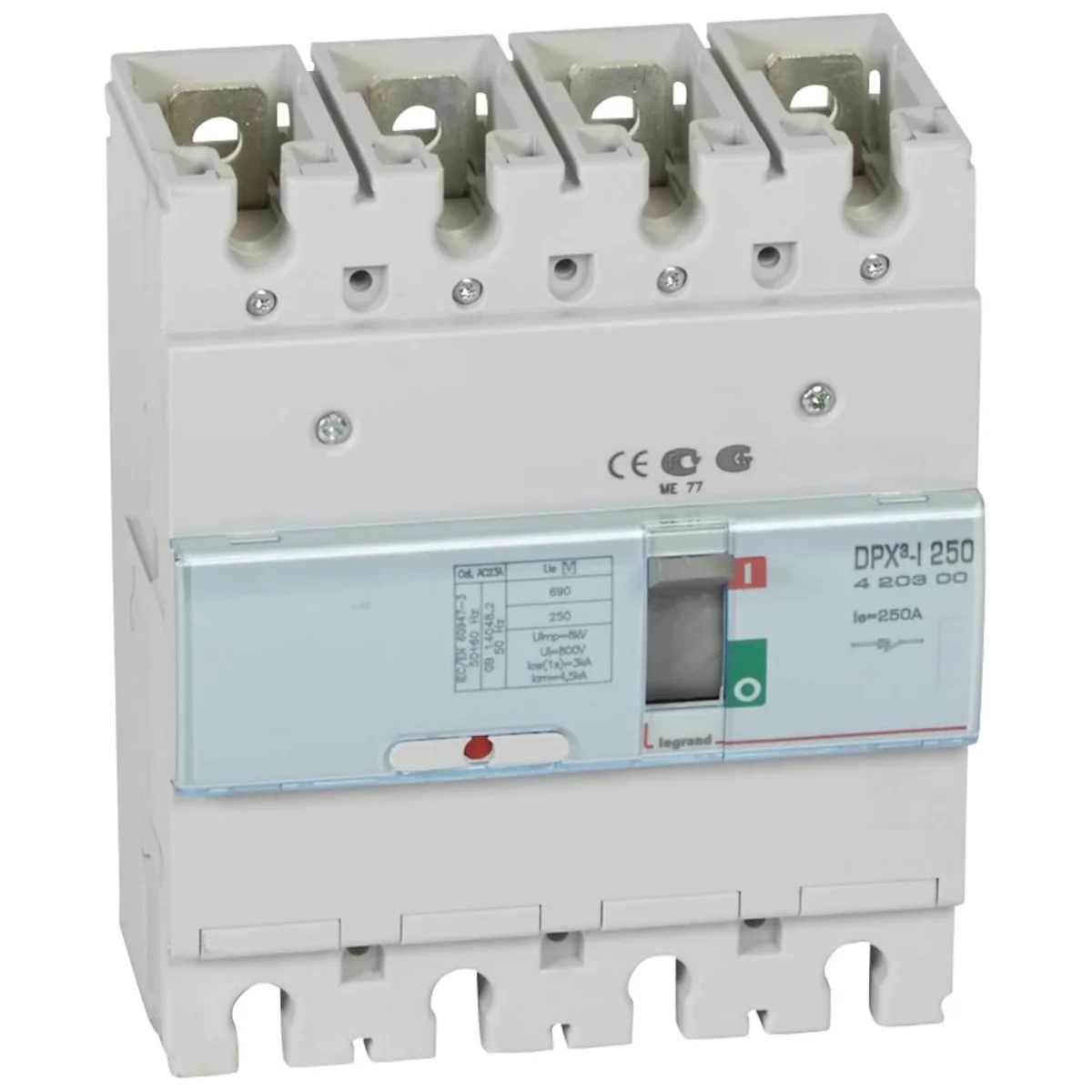

Switch disconnector DPX3-I 250 4P 250A 420300

Index local:

ALP013LEGR

Numéro de catalogue:

420300

Code EAN:

3245064203005

Cliquer sur la photo pour l'agrandir

Producteur: LEGRAND

Rated current [A]: 250

Voir la description complète

1 445

zł

gross / pcs. (y compris la TVA 23%)

Dostępne jusqu'à 2 semaines

Sur commande

Choisissez votre grossiste

Sélectionner

Quantité pcs. (plusieurs: 1 )

Description du produit Données techniques Détails du fabricant Emballage en vrac Fichiers à télécharger

Description du produit

Operating current: from 125 to 1600 A
For disconnecting current circuits under load and providing an insulation gap in low voltage installations
They can cooperate with a residual current block or DPX residual current relays
Mounting on a DIN rail. For DPX3 250 and larger with board reference 421 072 (DPX3-I 160) and 421 071 (DPX3 250)
Suitable for installation of DPX3 accessories
Compliant with IEC 60947-3
Usage category AC 23 A
Connection identical to the corresponding DPX3

Disconnector DPX3-I 250
Number of poles: 4
Rated current: 250 A

Données techniques

Rated current [A]

250

PKWIU

27.12.22.0

Autres données techniques

Version as main switch

Yes
Version as safety switch

Yes
Version as reversing switch

No
Rated operating voltage

220 ... 690 V
Rated permanent current at AC-21, 400 V

250 A
Rated operation power at AC-23, 400 V

100 kW
Number of poles

4
Number of auxiliary contacts as normally open contact

1
Motor drive optional

Yes
Voltage release optional

Yes
Suitable for floor mounting

Yes
Suitable for front mounting centre

No
Suitable for intermediate mounting

No
Type of control element

Toggle
Type of electrical connection of main circuit

Screw connection

Version as maintenance-/service switch

Yes
Version as emergency stop installation

Yes
Max. rated operation voltage Ue AC

690 V
Rated permanent current Iu

250 A
Rated short-time withstand current lcw

1.7 kA
Conditioned rated short-circuit current Iq

1.7 kA
Number of auxiliary contacts as normally closed contact

1
Number of auxiliary contacts as change-over contact

1
Motor drive integrated

No
Device construction

Built-in device fixed built-in technique
Suitable for front mounting 4-hole

No
Suitable for distribution board installation

Yes
Colour control element

Grey
Interlockable

Yes
Degree of protection (IP), front side

IP30

Détails du fabricant

Producteur

Legrand Polska Sp. z o.o.
Adresse

57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
E-mail

info@legrand.com.pl

Emballage en vrac

Une sorte de paquet	CT	PF
Quantité	1 pcs.	37 pcs.
poids (kg)	2,596	96,052
Volume (m3)	0,004	0,312
Largeur (m)	0,155	1,200
Longueur (m)	0,120	0,260
Profondeur (m)	0,205	1,000
