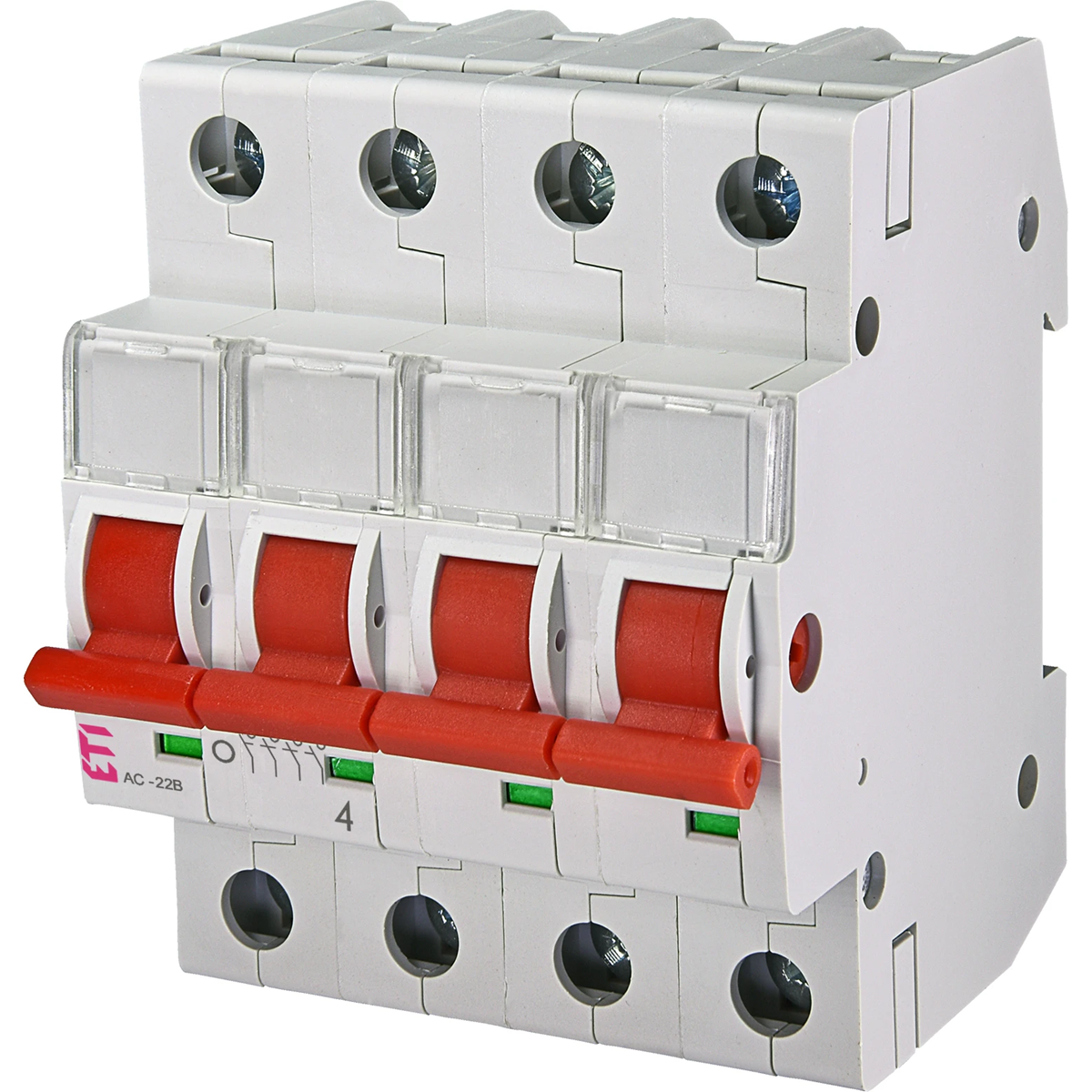

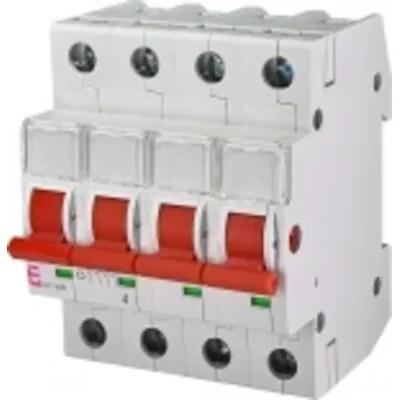

Switch disconnector 63A SV 463 002423414

local index:
ALI055ETIP
Catalog No:
002423414
EAN code:
3838895406419
Manufacturer: ETI POLAM
Work category: AC-23B
Number of poles: 4
Rated voltage [V]: 400
Price:
23,00 €
gross / pcs.
(including VAT 23%)
63,89 € gross/kg.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Application - SV switch disconnectors are used as main switches in residential and industrial switchboards, and as individual switches in power installations. They have no built-in overcurrent devices. SV switch-disconnectors can be sealed both in the ON and OFF positions.

Advantages:
→ SV switch disconnectors have a robust and simple design and therefore operate reliably,
→ are equipped with a double disconnection mechanism and a place for attaching a label with the number of the circuit in which they work.

Technical data

  • Work category
    AC-23B
  • Rated voltage [V]
    400
  • Type
    SV 463
  • PKWIU
    27.12.23.0
  • Number of poles
    4
  • Rated current [A]
    63
  • Weight [g]
    360

Other technical data

  • Version as main switch
    Yes
  • Version as safety switch
    Yes
  • Max. rated operation voltage Ue AC
    400 V
  • Conditioned rated short-circuit current Iq
    4 kA
  • Motor drive optional
    No
  • Device construction
    Built-in device fixed built-in technique
  • Type of control element
    Rocker lever
  • Type of electrical connection of main circuit
    Frame clamp
  • Version as maintenance-/service switch
    Yes
  • Version as emergency stop installation
    Yes
  • Rated permanent current Iu
    63 A
  • Number of poles
    4
  • Motor drive integrated
    No
  • Suitable for distribution board installation
    Yes
  • Interlockable
    No
  • Degree of protection (IP), front side
    IP20

Bulk packaging

A kind of package Pudełko Pudełko
Quantity 3 pcs. 27 pcs.
Weight (kg) 1,000 -
Volume (m3) 0,002 -
Width (m) 0,092 -
Length (m) 0,220 -
Depth (m) 0,078 -
