Switch disconnector 125A six-pole+N (non-switchable) with yellow-red handle on switch RSI-6125N\W03

local index:
ALI015SPAM
Catalog No:
RSI-6125N\W03
EAN code:
5907723010420

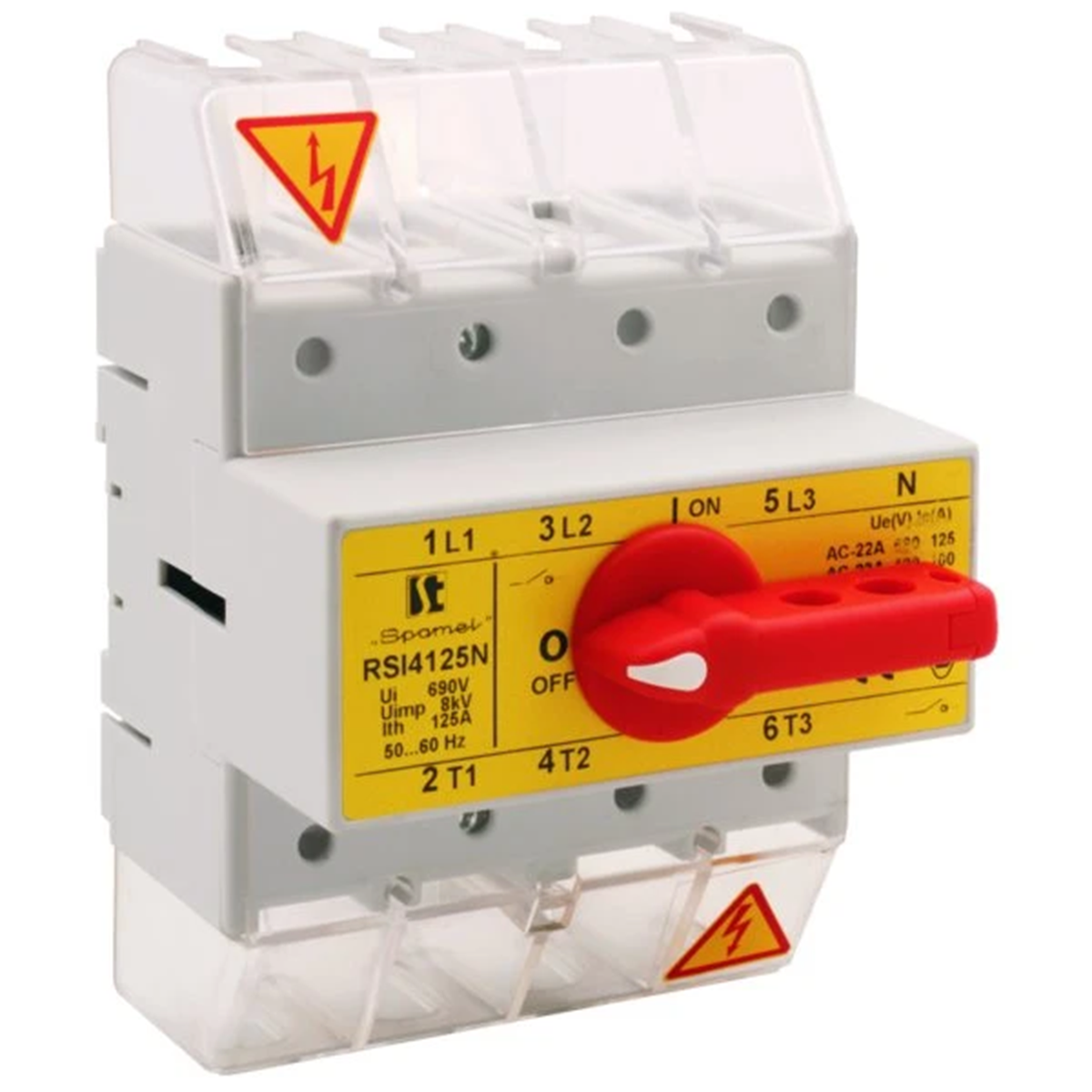

Switch disconnector 125A six-pole+N (non-switchable) with yellow-red handle on switch
Switch disconnector 125A six-pole+N (non-switchable) with yellow-red handle on switch

Click on the photo to enlarge

Manufacturer: SPAMEL
Continuous current [A]: 125
Level of security: IP20
See full description
Price:
132,96 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Product description Technical data

Product description

RSI compact switch disconnectors are designed for operation in circuits with a rated voltage of up to 690 V, in the AC-21A...AC-23A utilization categories and in DC circuits with a voltage of up to 220 V. The disconnectors can be installed in closed rooms (3 degree of pollution - industrial purpose), at the temperature from -40°C to +70°C.

Technical data

  • Continuous current [A]
    125
  • Level of security
    IP20

Other technical data

  • Version as main switch
    Yes
  • Version as safety switch
    No
  • Version as reversing switch
    No
  • Max. rated operation voltage Ue AC
    690 V
  • Rated operation power at AC-23, 400 V
    30 kW
  • Number of poles
    6
  • Number of auxiliary contacts as normally open contact
    0
  • Motor drive optional
    No
  • Voltage release optional
    No
  • Suitable for floor mounting
    Yes
  • Suitable for front mounting centre
    No
  • Suitable for intermediate mounting
    No
  • Interlockable
    No
  • Degree of protection (IP), front side
    IP20
  • Version as maintenance-/service switch
    No
  • Version as emergency stop installation
    Yes
  • Number of switches
    1
  • Rated permanent current Iu
    125 A
  • Conditioned rated short-circuit current Iq
    7.5 kA
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Motor drive integrated
    No
  • Device construction
    Built-in device fixed built-in technique
  • Suitable for front mounting 4-hole
    No
  • Suitable for distribution board installation
    No
  • Type of control element
    Turn button
  • Type of electrical connection of main circuit
    Screw connection
See more >>
