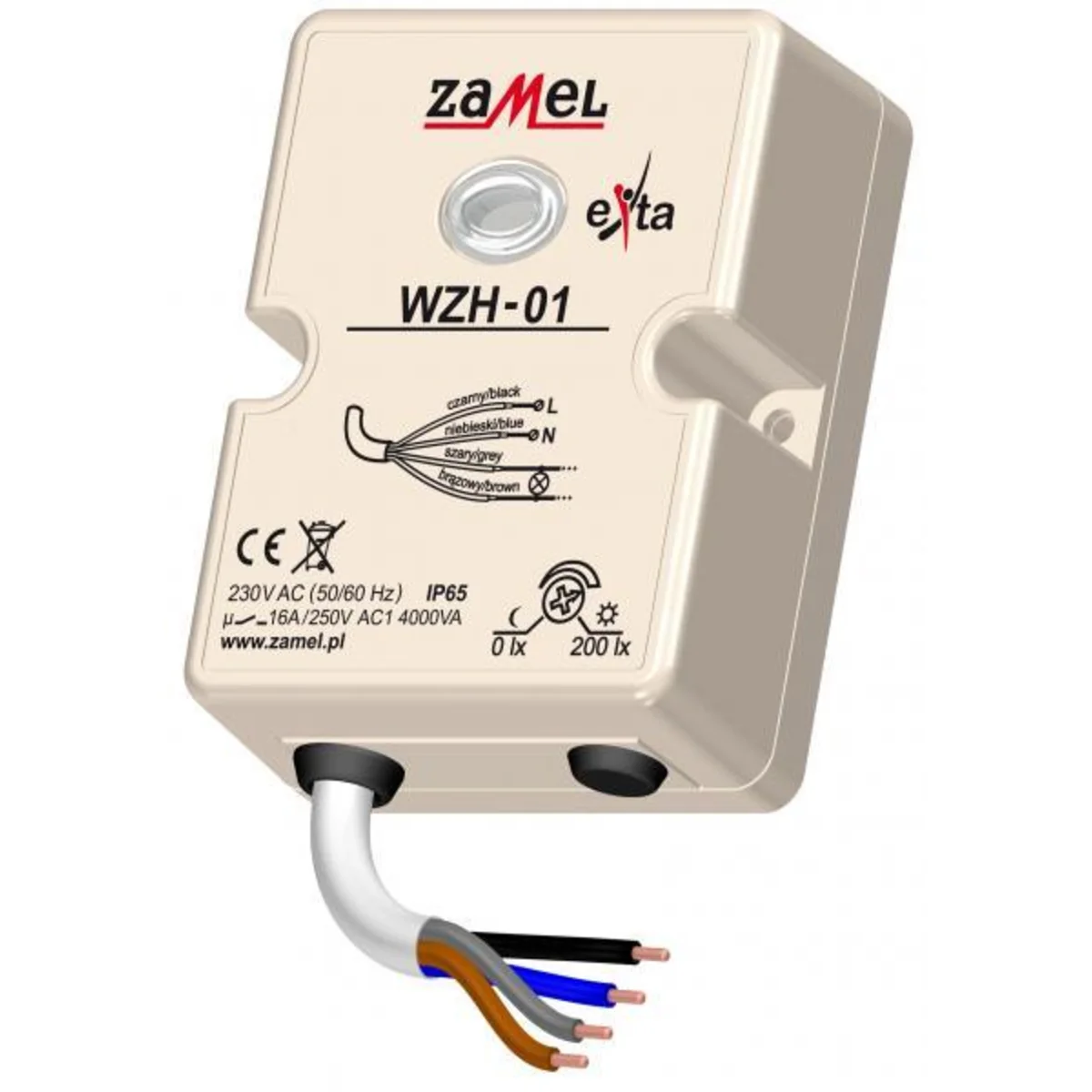

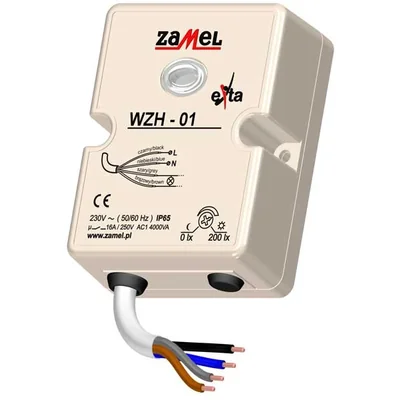

Surface-mounted twilight switch with probe 230V AC IP65 TYPE: wzh-01 EXT10000140-WPL

Indice locale:
APF001ZAME
Numero di catalogo:
EXT10000140-WPL
Codice EAN:
5903669021766
Produttore: ZAMEL
Length [mm]: 27
Maximum relay power [VA]: 4000
Rated voltage [V]: 230
75
53
zł
gross / pezzi  (inclusa IVA 23%)
Disponibilità
Dostępne fino a 2 settimane
Su ordinazione
Twoja hurtowinia
Dostępność w oddziale
Scegliete il vostro grossista
Selezionare
Quantità pezzi (multiplo: 1 )
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

The device is used to control lighting or other energy receivers depending on the lighting intensity - it turns on the lighting at dusk and turns off at dawn. The activation threshold can be smoothly set by the user. The device is resistant to short-term lighting impulses, which guarantees operational reliability. Hermetic housing ensures safe operation of the device in unfavorable weather conditions (IP65).

Dati tecnici

  • Length [mm]
    27
  • Rated voltage [V]
    230
  • Family
    EXTA
  • Contact
    1NO
  • Type
    Circuit breakers
  • PKWIU
    27.12.40.0
  • Maximum relay power [VA]
    4000
  • Relay current [A]
    16
  • Level of security
    IP65
  • Width [mm]
    56
  • Height [mm]
    69

Dettagli del produttore

  • Produttore
    ZAMEL Sp. z o.o.
  • Indirizzo
    43-200 Pszczyna Zielona 27 Polska
