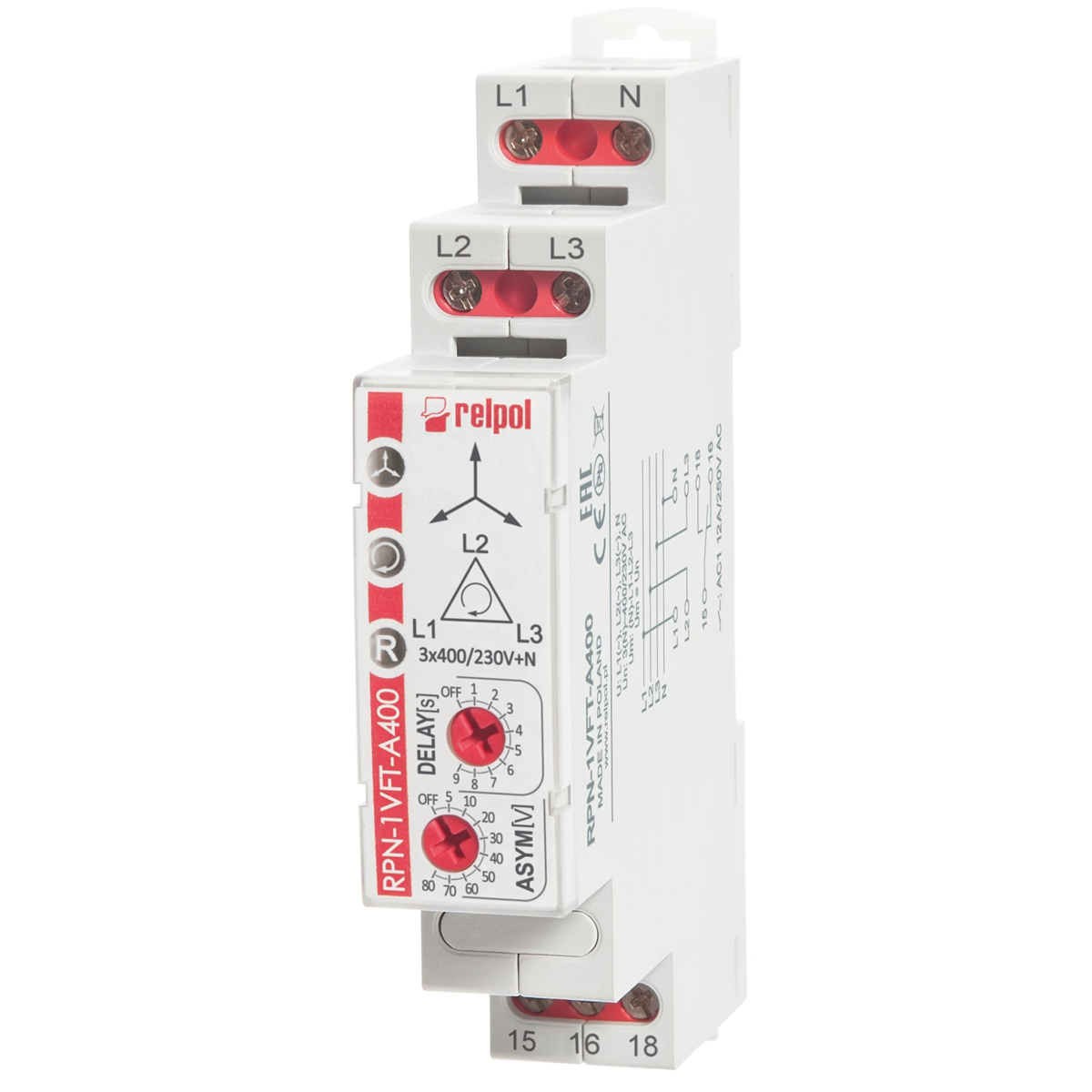

Supervisory relay 400V AC 1P AgSnO2 12A / 250V AC 864374

local index:
APL004RELP
Catalog No:
864374
EAN code:
5900005262821
Manufacturer: RELPOL
Color: Gray
Installation: On the TH-35 rail
Width [mm]: 17.5
Price:
30,82 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Relay for monitoring AC voltage in a 3-phase network 3 (N) - 400/230 V.

  • Supply voltage = supervised voltage. Overload capacity ≥1.2Un. Output - 1 changeover contact. Rated voltage 3(N) ̴400/230V AC 50/60 Hz. Relay performing the following functions: LOST D - phase loss supervision, ASYM D - asymmetry supervision, SEQ D - phase sequence supervision. Adjustable contact delay up to 9s. Asymmetry ranges - smooth setting 5...80V AC.
  • Technical data

    • Color
      Gray
    • Width [mm]
      17.5
    • Terminal type
      screw terminals
    • Installation
      On the TH-35 rail
    • Height [mm]
      90
