STV D02 63A 3p+N switch disconnector 002271005

local index:
ALI002ETIP
Catalog No:
002271005
EAN code:
5904722906860
Manufacturer: ETI POLAM
Neutral pole N: disconnectable
Number of poles: 4
DC rated voltage [V]: 110
Price:
95,98 €
gross / pcs.
(including VAT 23%)
201,64 € gross/kg.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

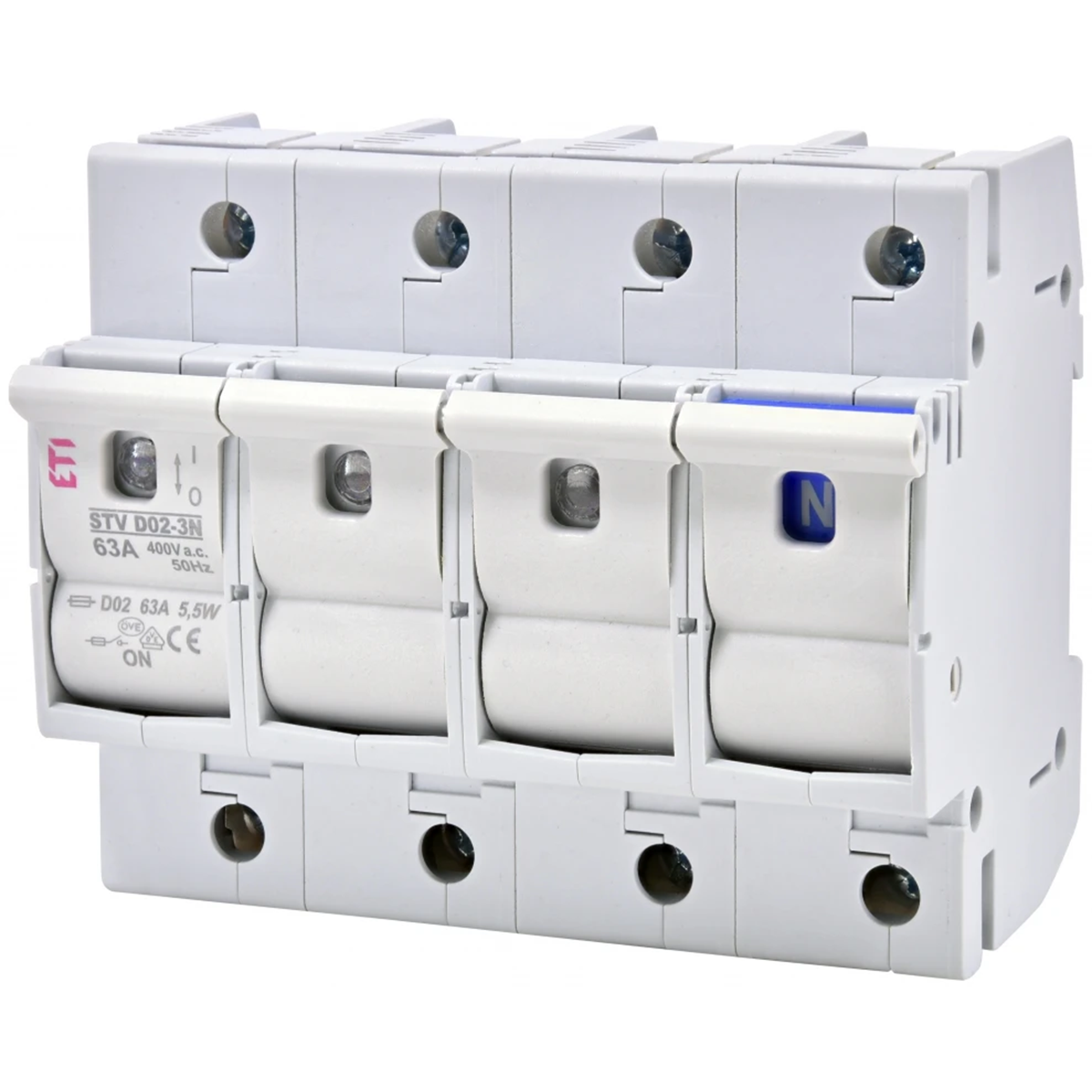

The STV D02 fuse switch disconnector is a device with a replaceable fuse-link
that protects electrical installations. It allows you to use (similarly to the VL
D01 disconnector) operational advantages of the D0 fuse system. Principles of operation of the STV D02 disconnector - In order to replace a burnt-out fuse-link, pull the disconnector's lever down (which will disconnect the circuit), then pull out the drawer and take out the burnt-out fuse-link. After pulling out the drawer with the fuse link, we get a visible insulating break in the circuit. In this way, the disconnector can perform the function of the main protection (for example: pre-meter) and the main circuit breaker.
Advantages:
→ allows you to replace a blown fuse-link
without the risk of touching
live parts,
→ there is no need to use a fuse head;
proper contact of the fuse-link is ensured
by an appropriate system of spring terminals
→ possibility of connecting power supply both “from above“ like
and “from below”
→ sealable in on and off position róalso
without fuse-link inserted,
→ operating categories: AC 22B, AC 23B (35A), DC 22B,
→ Rated short-circuit capacity [kA]: 50,
→ 1-pole version, 2p, 3p, 1p+N, 3p+N,
→ rated current depending on inserts from 2 to 63A,
→ the use of a disconnector with a insert enables selective cooperation with overcurrent circuit breakers.

Technical data

  • Neutral pole N
    disconnectable
  • DC rated voltage [V]
    110
  • Clamp type
    Bushing - possibility of stacking. connection rails
  • Working temperature [°C]
    from -25 to +50
  • Mechanical strength
    8500 shifts
  • Insulation voltage [V]
    500
  • PKWIU
    27.12.23.0
  • Number of poles
    4
  • Rated current [A]
    63
  • Width [mm]
    107
  • Weight [g]
    476
  • Rated short-circuit capacity [kA]
    50
  • AC rated voltage [V]
    230/400

Other technical data

  • Number of poles
    4
  • Rated voltage
    400 V
  • Construction size
    D02
  • Rated current
    63 A
