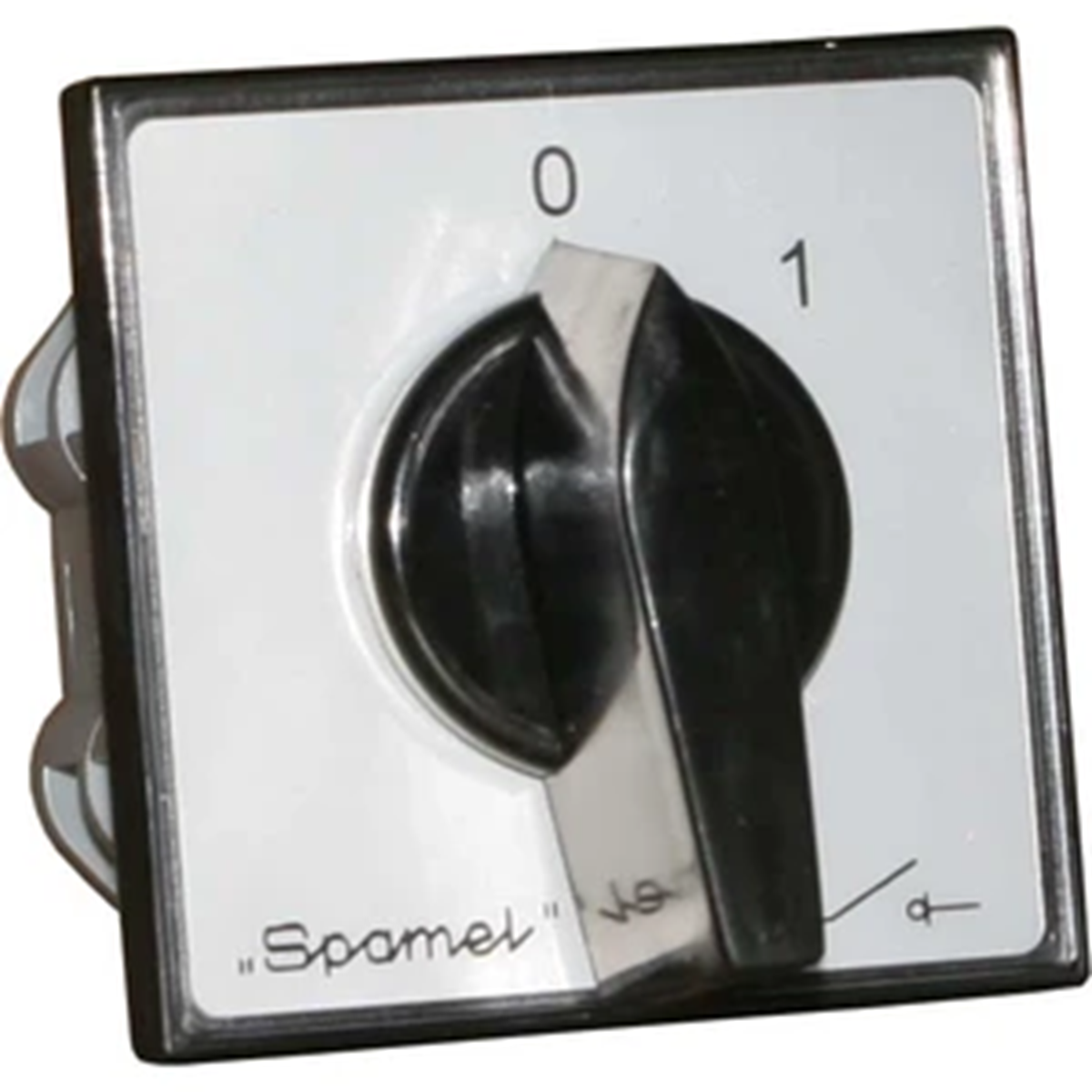

Spamel cam switch, switch disconnector 0-1 25A single pole, lockable ŁK25R-2.8211\P08

local index:
ALK030SPAM
Catalog No:
ŁK25R-2.8211\P08
EAN code:
5907723003989
Manufacturer: SPAMEL
Color: Red
Rated insulation voltage [V]: 690
Continuous current [A]: 25
Price:
28,70 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Spamel cam switch, switch disconnector 0-1 25A single pole, lockable. Cam switches are electric rotary multi-circuit switches adapted to switch on and off currents. Cam switches are used in the circuits of low voltage electrical installations, especially as circuit breakers, disconnectors, switches and control switches. Cam switches can be installed indoors (pollution degree 3 - industrial use) at -40...+70°C.

Technical data

  • Color
    Red
  • Continuous current [A]
    25
  • Rated insulation voltage [V]
    690
  • Accurate color
    Red

Other technical data

  • Model
    Reverser
  • With zero (off) position
    Yes
  • Rated permanent current Iu
    25 A
  • Degree of protection (IP), front side
    IP65
  • Number of auxiliary contacts as normally open contact
    0
  • Suitable for floor mounting
    Yes
  • Suitable for distribution board installation
    No
  • Complete device in housing
    No
  • Type of control element
    Turn button
  • Number of poles
    3
  • With retraction in 0-position
    No
  • Rated operation power at AC-3, 400 V
    13 kW
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Suitable for front mounting
    No
  • Suitable for intermediate mounting
    Yes
  • Housing material
    Plastic
  • Type of electrical connection of main circuit
    Screw connection
