SmartWire-DT module for DILM contactors, auto/manual 118561

local index:
API164MOEL
Catalog No:
118561
EAN code:
4015081168316

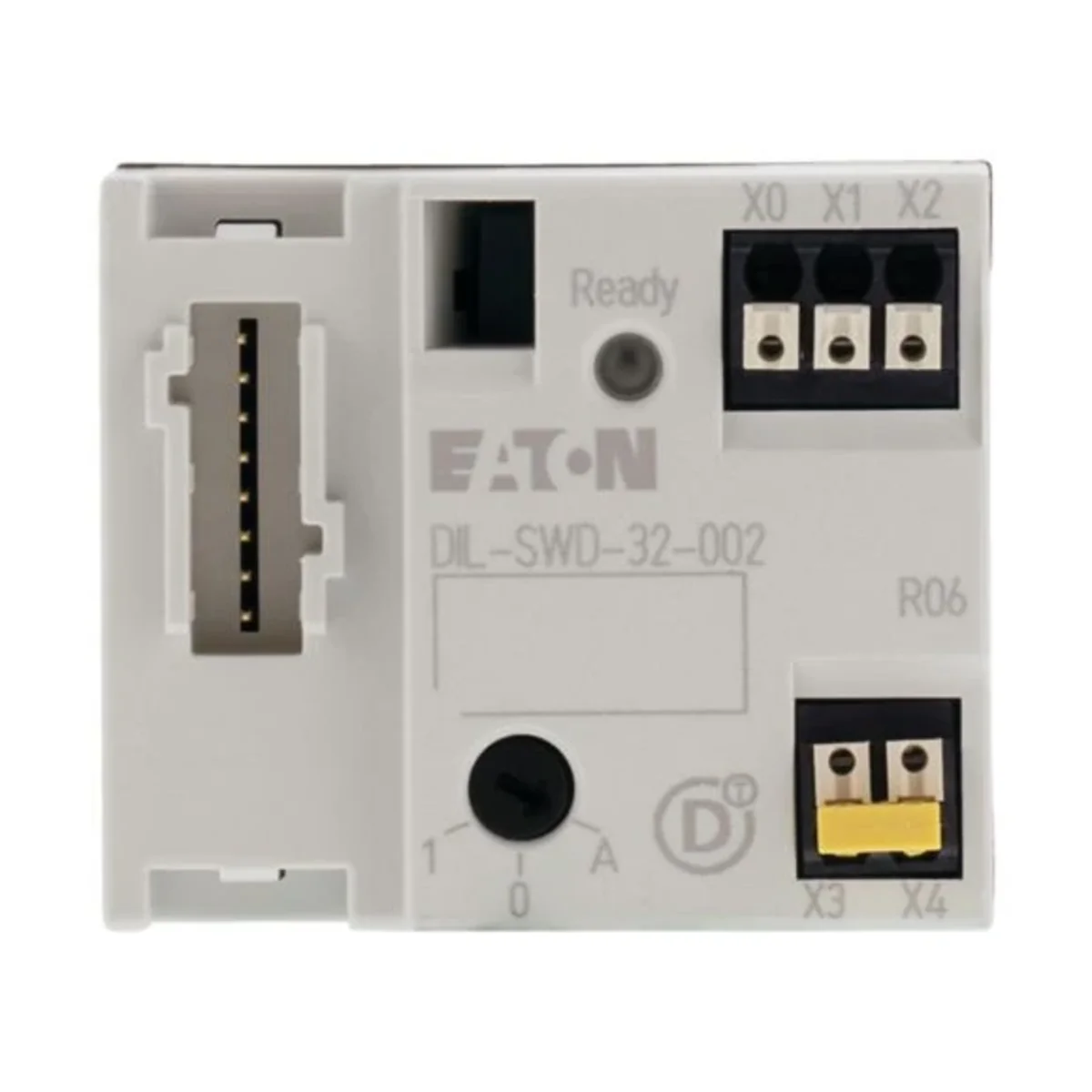

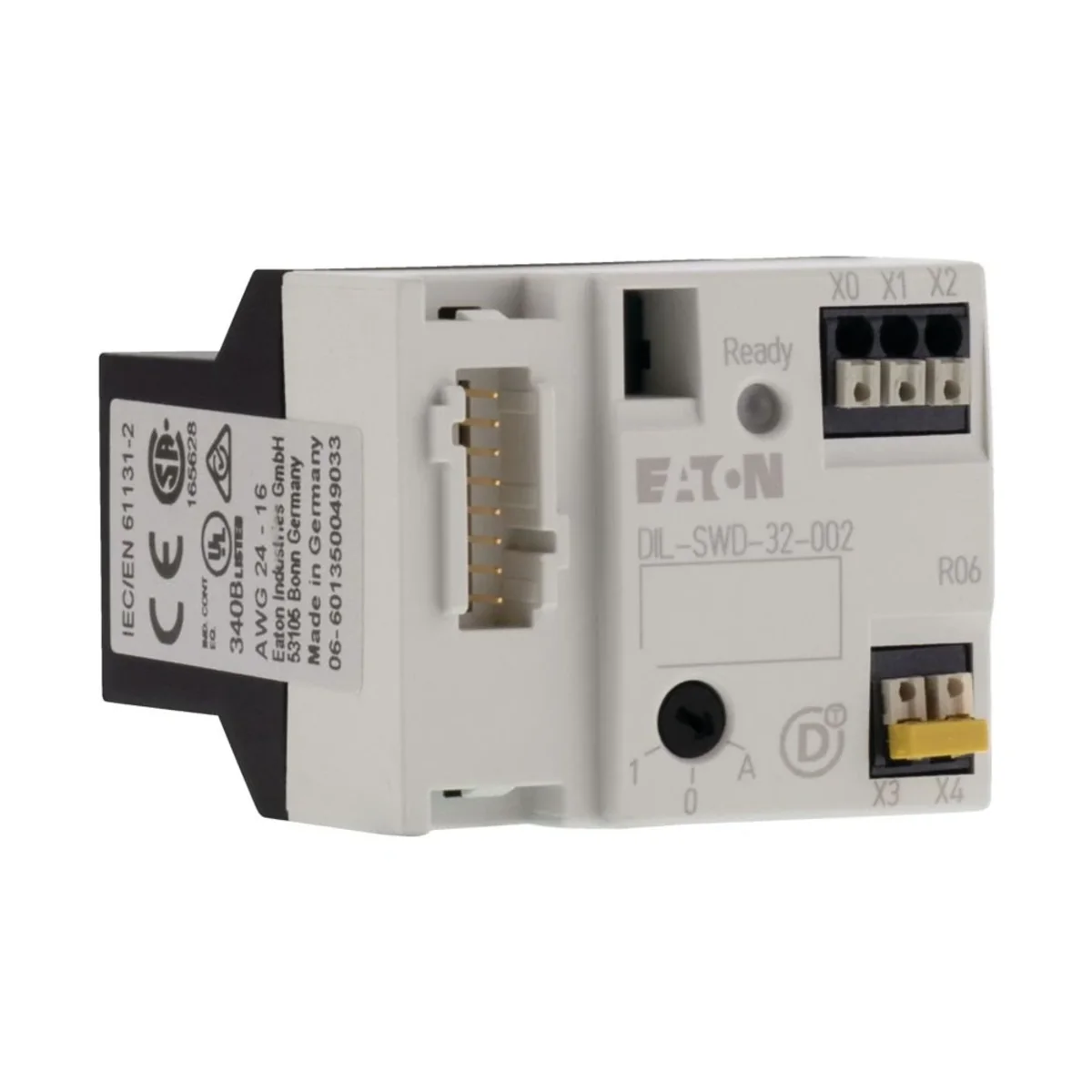

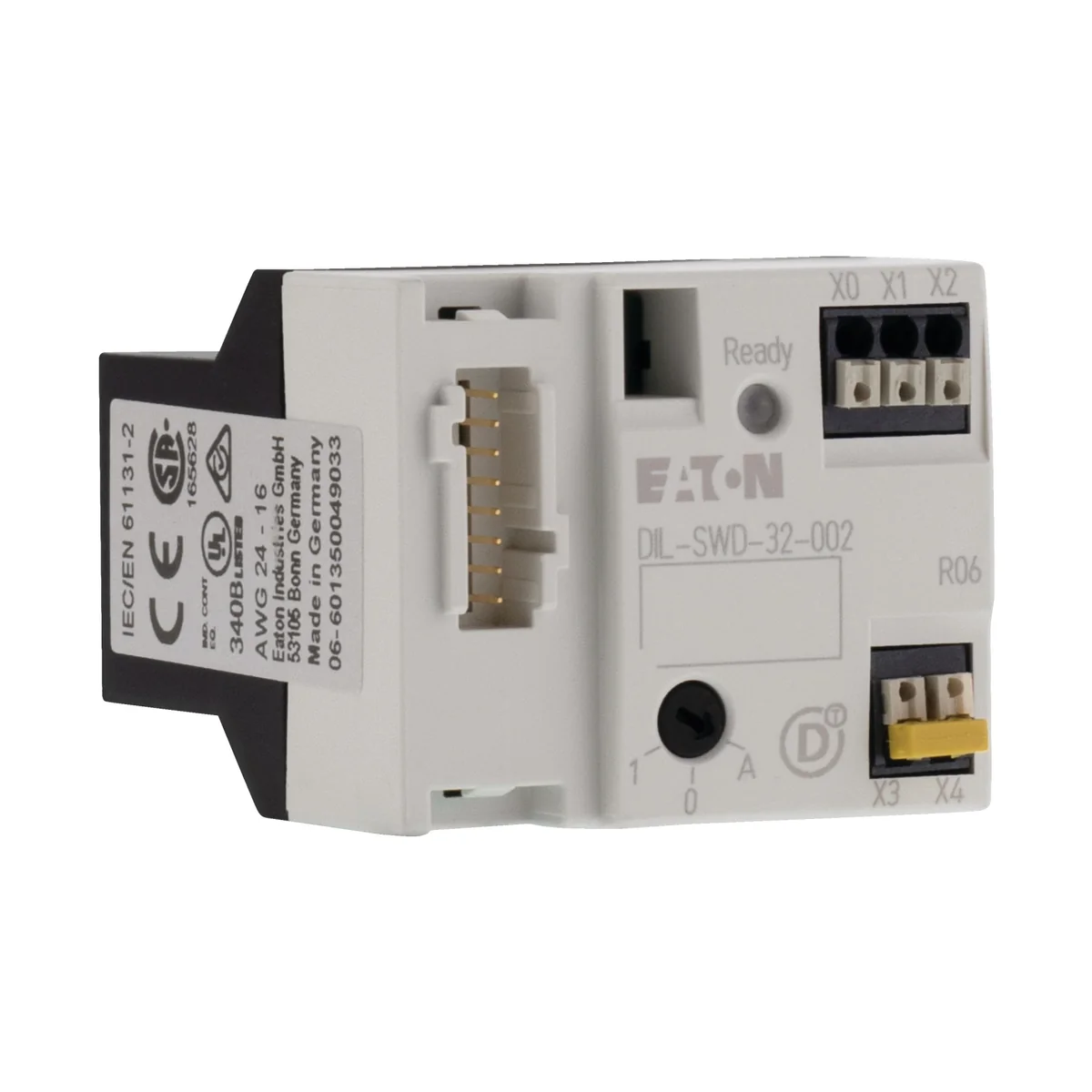

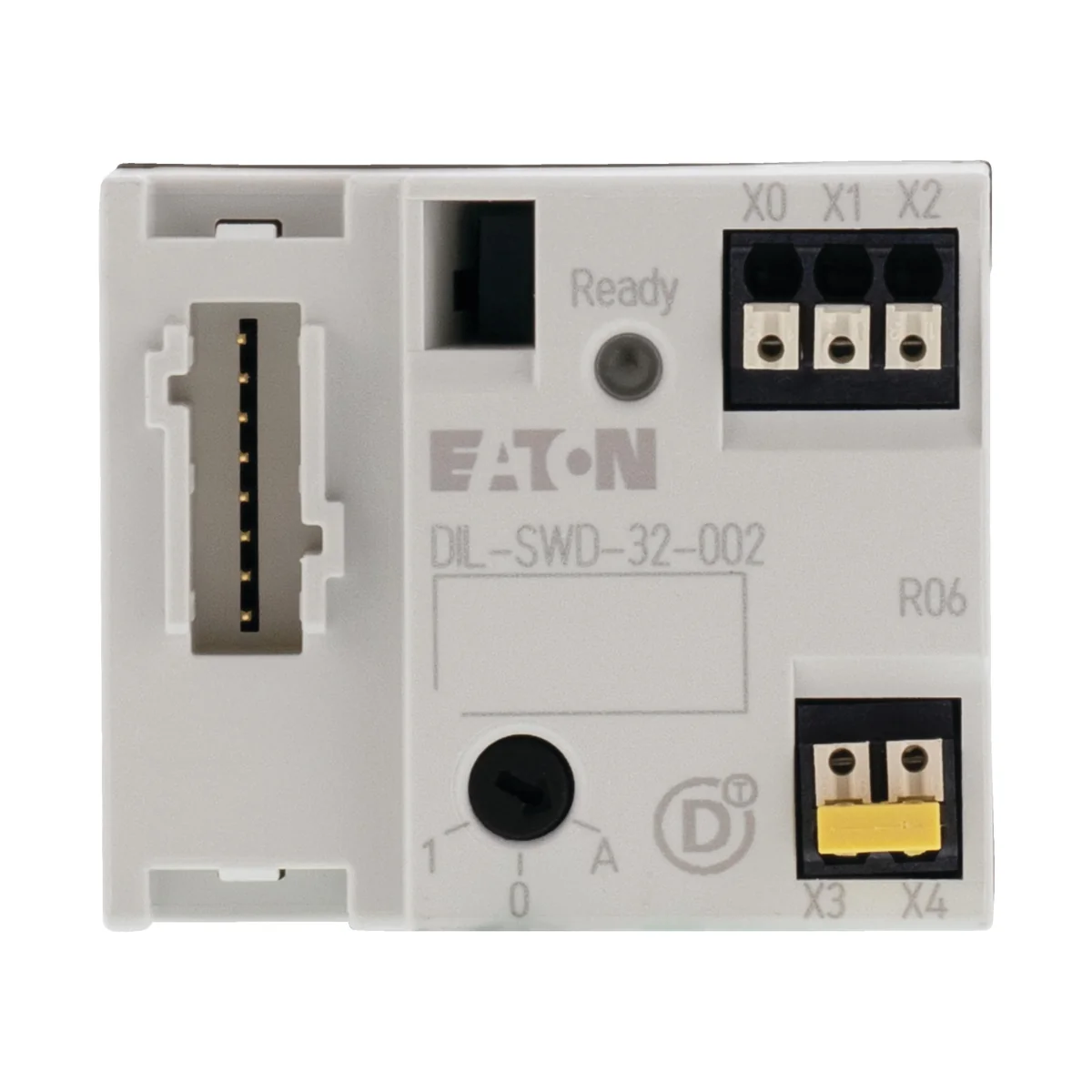

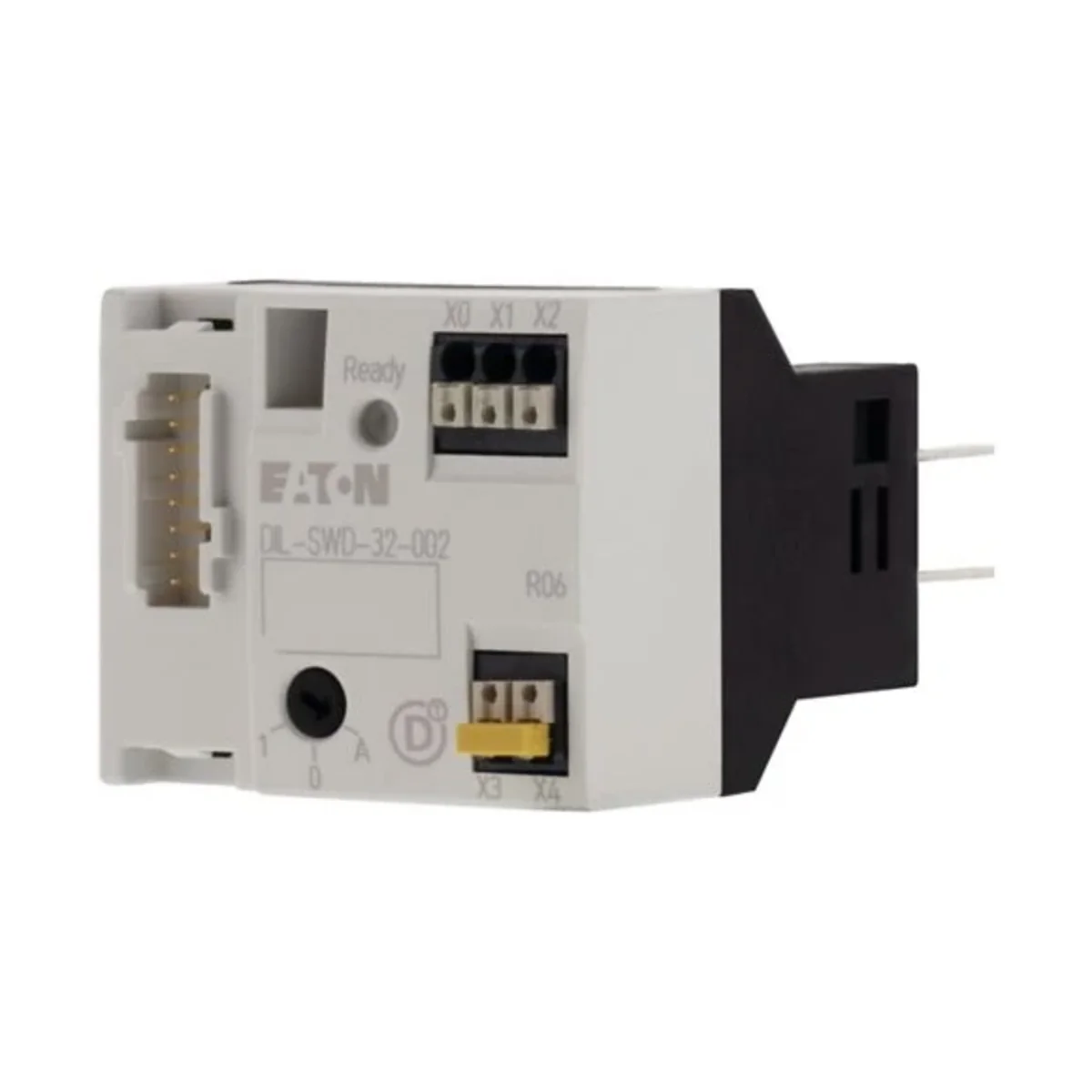

SmartWire-DT module for DILM contactors, auto/manual
SmartWire-DT module for DILM contactors, auto/manual
SmartWire-DT module for DILM contactors, auto/manual
SmartWire-DT module for DILM contactors, auto/manual
SmartWire-DT module for DILM contactors, auto/manual
SmartWire-DT module for DILM contactors, auto/manual
SmartWire-DT module for DILM contactors, auto/manual
SmartWire-DT module for DILM contactors, auto/manual

Click on the photo to enlarge

Manufacturer: EATON
Level of security: IP20
See full description
Price:
107,49 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
5
)
Add to clipboard
Print
Product description Technical data Bulk packaging

Product description

One module is needed per contactor. One electrical interlock for surface mounting of reversing starters
Two self-powered dry contact digital inputs. 1-0-A switch for manual or automatic operation. Switching state of the contactor, state of the digital inputs 1 and 2, switching state of the 1-0-A switch

If the current consumption of the contactor coils is > 3 A (UL: 2 A), use the additional SmartWire-DT power supply module. Terminals A2 must not be bridged. Do not use the DILM 12-XRL and PKZM0-XRM12 wiring kits. Do not use electrical interlock terminals in safety circuits.

Technical data

  • Level of security
    IP20

Other technical data

  • Supply voltage AC 50 Hz
    0 ... 0 V
  • Supply voltage DC
    15 ... 15 V
  • Number of digital inputs
    2
  • Digital inputs configurable
    No
  • Input current at signal 1
    3 mA
  • Type of voltage (input voltage)
    DC
  • Output current
    0.5 A
  • Type of output voltage
    DC
  • Number of HW-interfaces industrial Ethernet
    0
  • Number of HW-interfaces RS-232
    0
  • Number of HW-interfaces RS-485
    0
  • Number of HW-interfaces parallel
    0
  • Number of HW-interfaces USB
    0
  • With optical interface
    No
  • Supporting protocol for PROFIBUS
    No
  • Supporting protocol for INTERBUS
    No
  • Supporting protocol for KNX
    No
  • Supporting protocol for Data-Highway
    No
  • Supporting protocol for SUCONET
    No
  • Supporting protocol for PROFINET IO
    No
  • Supporting protocol for SERCOS
    No
  • Supporting protocol for EtherNet/IP
    No
  • Supporting protocol for DeviceNet Safety
    No
  • Supporting protocol for PROFIsafe
    No
  • Supporting protocol for other bus systems
    Yes
  • Radio standard WLAN 802.11
    No
  • Radio standard GSM
    No
  • IO link master
    No
  • Degree of protection (IP)
    IP20
  • Time delay at signal change
    10 ... 84 ms
  • Rail mounting possible
    No
  • Front built-in possible
    No
  • Suitable for safety functions
    No
  • Performance level according to EN ISO 13849-1
    None
  • Appendant operation agent (Ex ib)
    No
  • Explosion safety category for dust
    None
  • Height
    38 mm
  • Supply voltage AC 60 Hz
    0 ... 0 V
  • Voltage type (supply voltage)
    DC
  • Number of digital outputs
    1
  • Digital outputs configurable
    No
  • Permitted voltage at input
    15 ... 15 V
  • Type of digital output
    None
  • Permitted voltage at output
    20.4 ... 28.8 V
  • Short-circuit protection, outputs available
    No
  • Number of interfaces PROFINET
    0
  • Number of HW-interfaces RS-422
    0
  • Number of HW-interfaces serial TTY
    0
  • Number of HW-interfaces wireless
    0
  • Number of HW-interfaces other
    1
  • Supporting protocol for TCP/IP
    No
  • Supporting protocol for CAN
    No
  • Supporting protocol for ASI
    No
  • Supporting protocol for Modbus
    No
  • Supporting protocol for DeviceNet
    No
  • Supporting protocol for LON
    No
  • Supporting protocol for PROFINET CBA
    No
  • Supporting protocol for Foundation Fieldbus
    No
  • Supporting protocol for AS-Interface Safety at Work
    No
  • Supporting protocol for INTERBUS-Safety
    No
  • Supporting protocol for SafetyBUS p
    No
  • Radio standard Bluetooth
    No
  • Radio standard GPRS
    No
  • Radio standard UMTS
    No
  • System accessory
    Yes
  • Type of electric connection
    Spring clamp connection
  • Fieldbus connection over separate bus coupler possible
    Yes
  • Wall mounting/direct mounting
    No
  • Rack-assembly possible
    No
  • SIL according to IEC 61508
    None
  • Appendant operation agent (Ex ia)
    No
  • Explosion safety category for gas
    None
  • Width
    45 mm
  • Depth
    72 mm

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 5 pcs.
Weight (kg) 0,042 0,211
Volume (m3) 0,000 0,001
Width (m) 0,047 0,090
Length (m) 0,074 0,190
Depth (m) 0,040 0,050
