SmartWire-DT gateway to CANopen networks 116307

local index:
API158MOEL
Catalog No:
116307
EAN code:
4015081160471

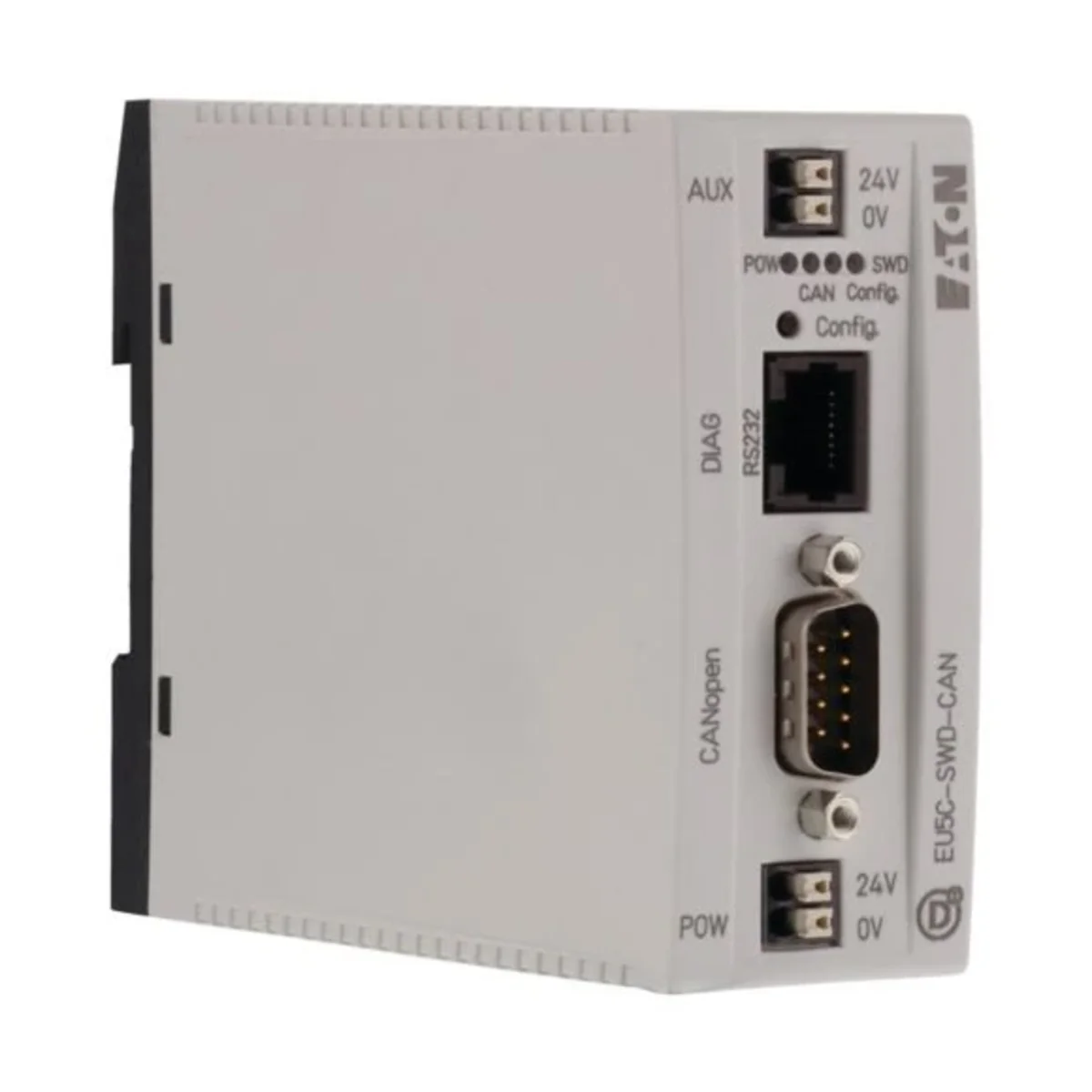

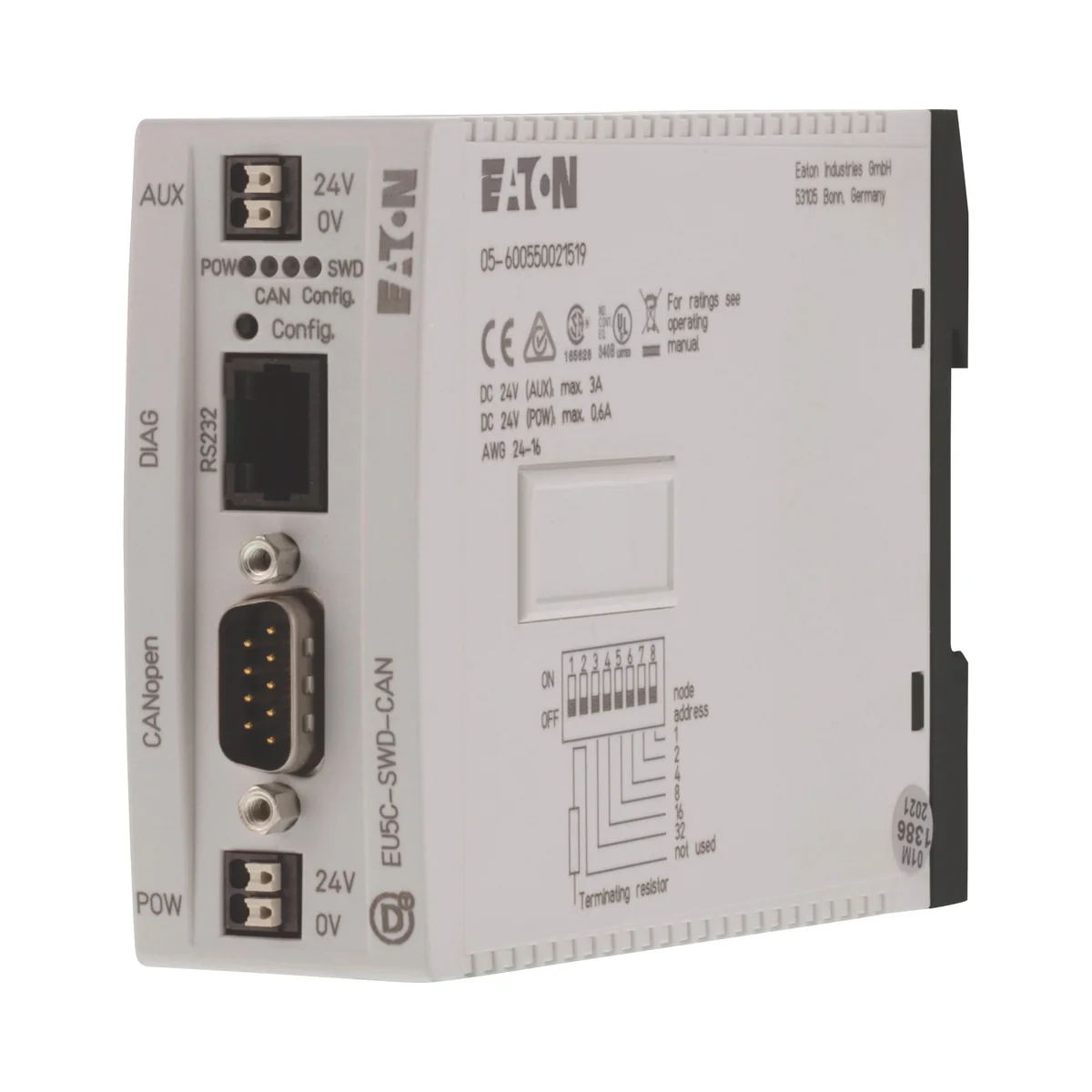

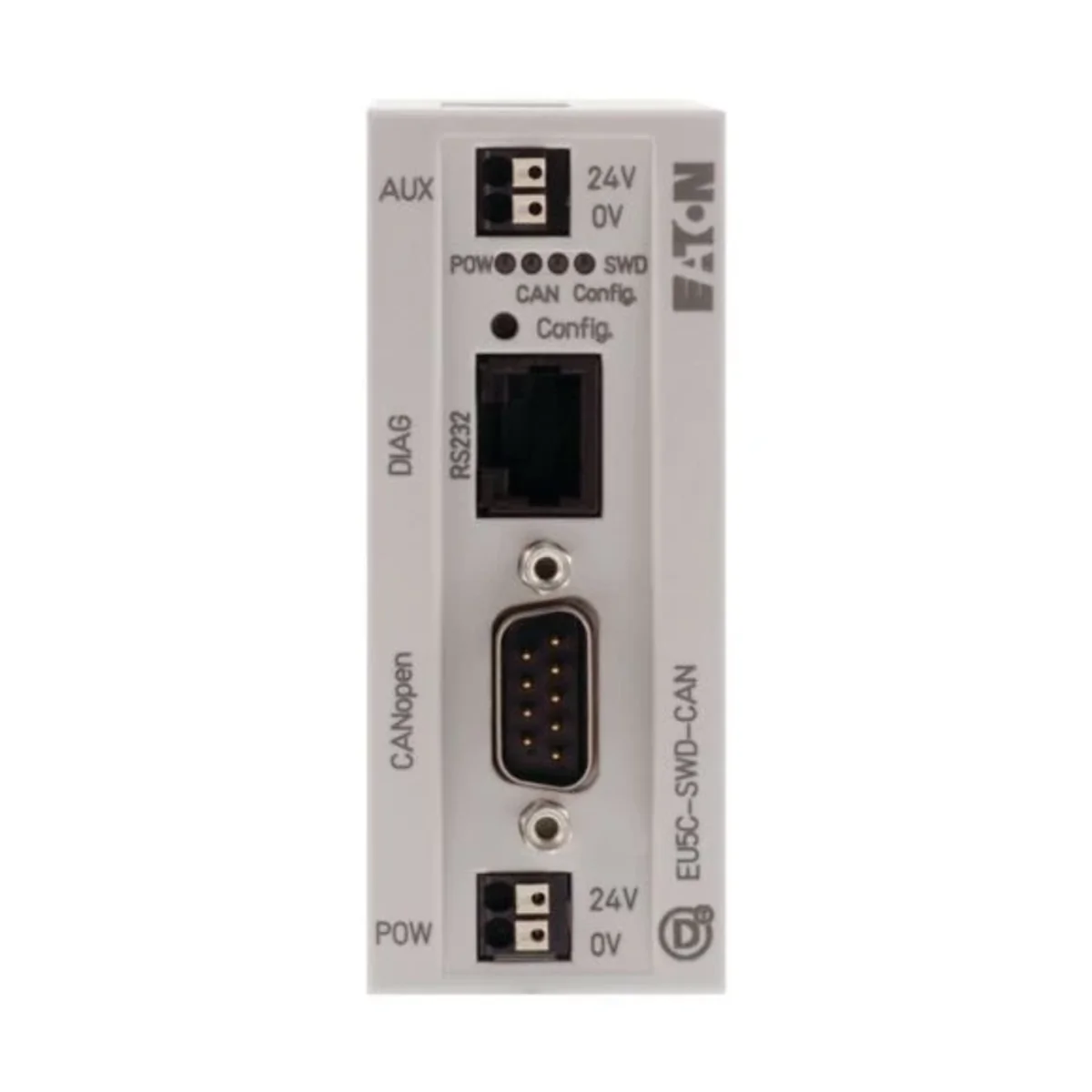

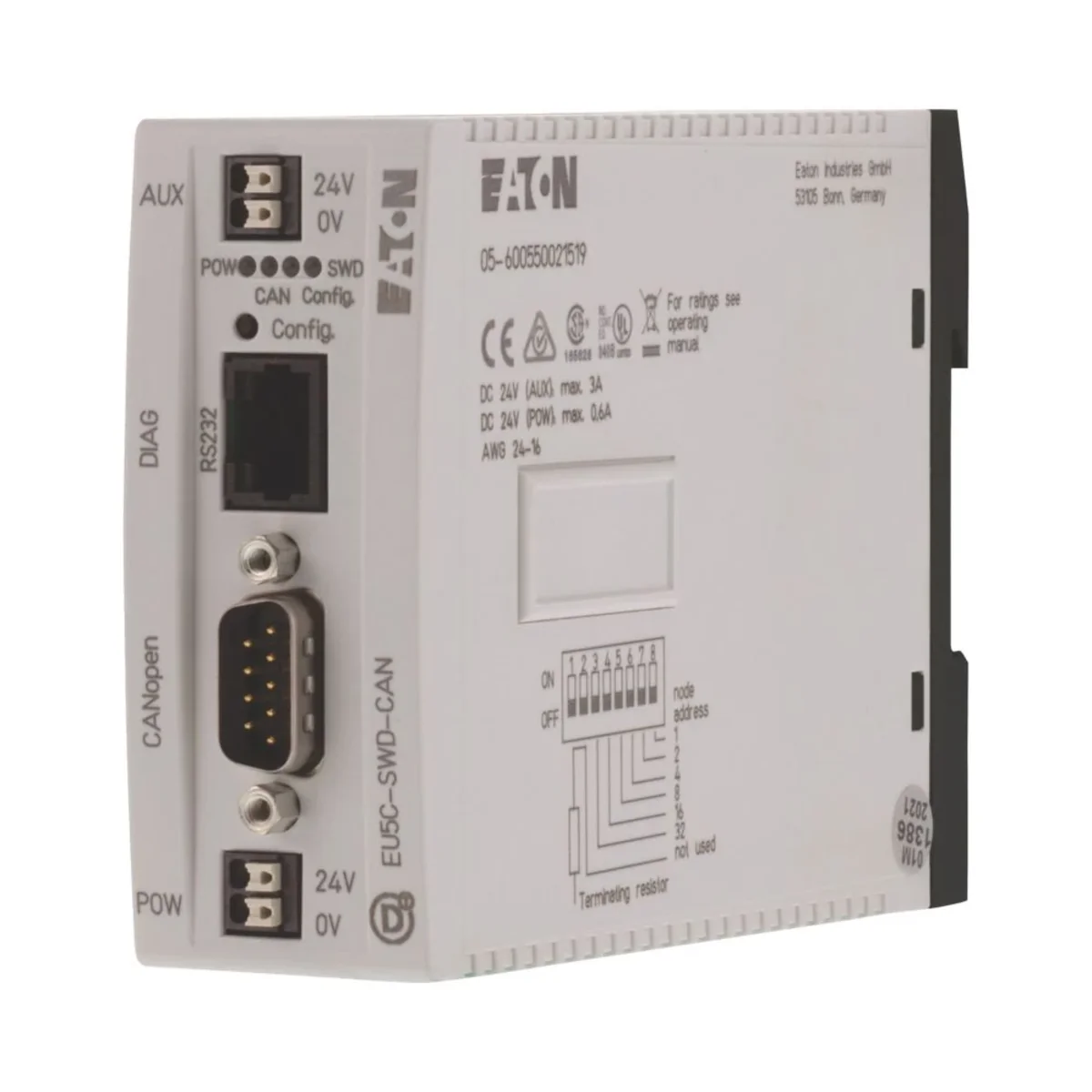

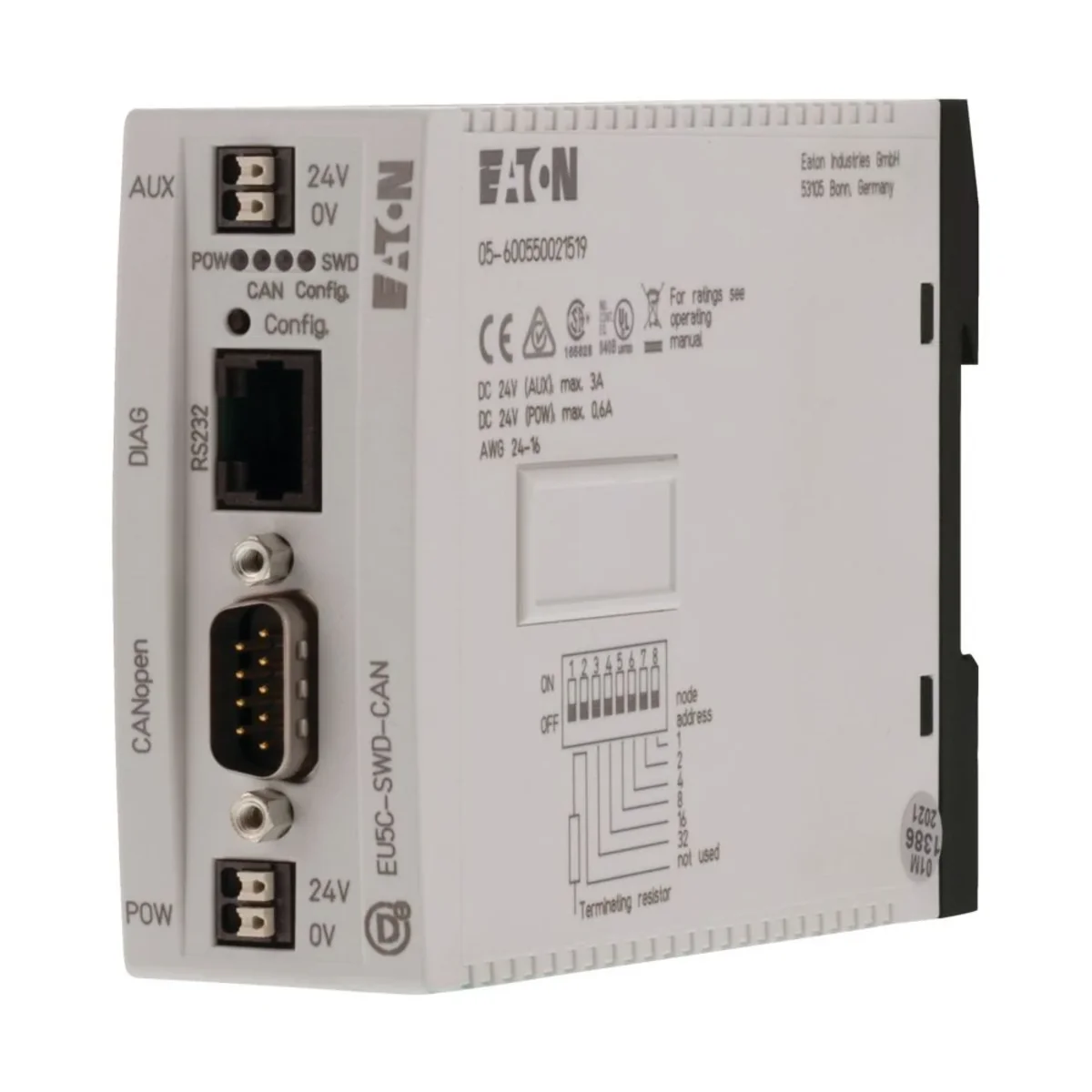

SmartWire-DT gateway to CANopen networks
SmartWire-DT gateway to CANopen networks
SmartWire-DT gateway to CANopen networks
SmartWire-DT gateway to CANopen networks
SmartWire-DT gateway to CANopen networks
SmartWire-DT gateway to CANopen networks
SmartWire-DT gateway to CANopen networks
SmartWire-DT gateway to CANopen networks

Click on the photo to enlarge

Manufacturer: EATON
Level of security: IP20
See full description
Price:
2700,62 zł
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Gateway for connecting to the fieldbus and for supplying SmartWire-Darwin (SWD) devices and switching devices. Connection to CANopen is via a 9-pin SUB-D plug as slave. Automatic recognition of data transmission speed from 10 kBit/s to 1 Mbit/s. The address range can be set from 1-32. Up to 99 SmartWire-DT devices can be connected.

Technical data

  • Level of security
    IP20

Other technical data

  • Supply voltage AC 50 Hz
    0 ... 0 V
  • Supply voltage DC
    20.4 ... 28.8 V
  • Supporting protocol for TCP/IP
    No
  • Supporting protocol for CAN
    Yes
  • Supporting protocol for ASI
    No
  • Supporting protocol for Modbus
    No
  • Supporting protocol for DeviceNet
    No
  • Supporting protocol for LON
    No
  • Supporting protocol for PROFINET IO
    No
  • Supporting protocol for Foundation Fieldbus
    No
  • Supporting protocol for AS-Interface Safety at Work
    No
  • Supporting protocol for INTERBUS-Safety
    No
  • Supporting protocol for SafetyBUS p
    No
  • Radio standard Bluetooth
    No
  • Radio standard GPRS
    No
  • Radio standard GSM
    No
  • Radio standard UMTS
    No
  • System accessory
    Yes
  • With potential separation
    No
  • Rail mounting possible
    Yes
  • Front built-in possible
    No
  • Suitable for safety functions
    Yes
  • Performance level according to EN ISO 13849-1
    None
  • Appendant operation agent (Ex ib)
    No
  • Explosion safety category for dust
    None
  • Height
    90 mm
  • Supply voltage AC 60 Hz
    0 ... 0 V
  • Voltage type (supply voltage)
    DC
  • Supporting protocol for PROFIBUS
    No
  • Supporting protocol for INTERBUS
    No
  • Supporting protocol for KNX
    No
  • Supporting protocol for Data-Highway
    No
  • Supporting protocol for SUCONET
    No
  • Supporting protocol for SERCOS
    No
  • Supporting protocol for PROFINET CBA
    No
  • Supporting protocol for EtherNet/IP
    No
  • Supporting protocol for DeviceNet Safety
    No
  • Supporting protocol for PROFIsafe
    No
  • Supporting protocol for other bus systems
    No
  • Radio standard WLAN 802.11
    No
  • Radio standard eGPRS
    No
  • Radio standard LTE
    No
  • IO link master
    No
  • Degree of protection (IP)
    IP20
  • Fieldbus connection over separate bus coupler possible
    No
  • Wall mounting/direct mounting
    Yes
  • Rack-assembly possible
    No
  • SIL according to IEC 61508
    None
  • Appendant operation agent (Ex ia)
    No
  • Explosion safety category for gas
    None
  • Width
    35 mm
  • Depth
    127 mm

Manufacturer details

  • Manufacturer
    Eaton Electric Sp. z o.o.
  • Address
    80-299 Gdańsk Galaktyczna 30 Polska
  • E-mail
    wsparcietech@eaton.com

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,210
Volume (m3) 0,001
Width (m) 0,057
Length (m) 0,151
Depth (m) 0,118
