el12 Automation Relays and drivers Other automation elements

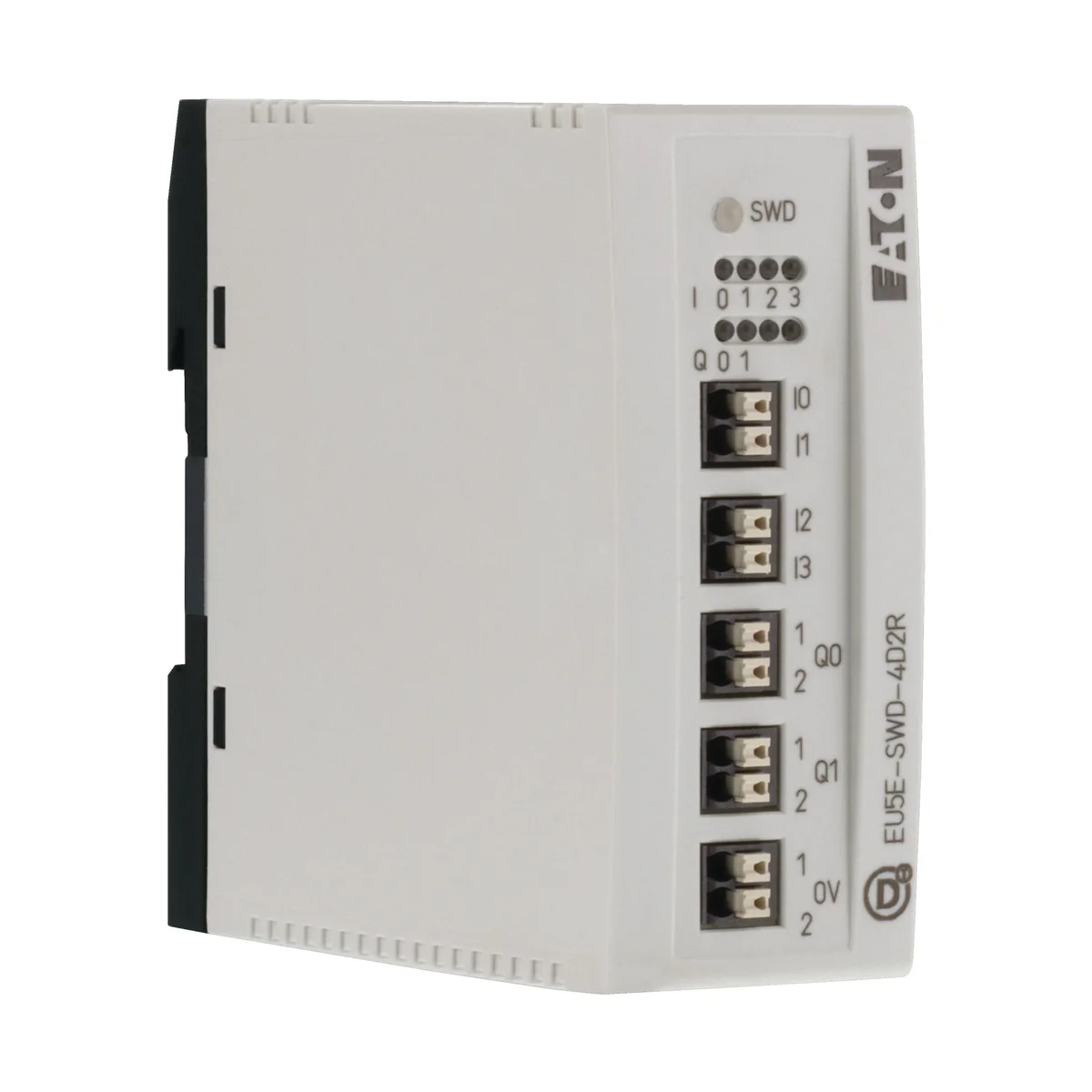

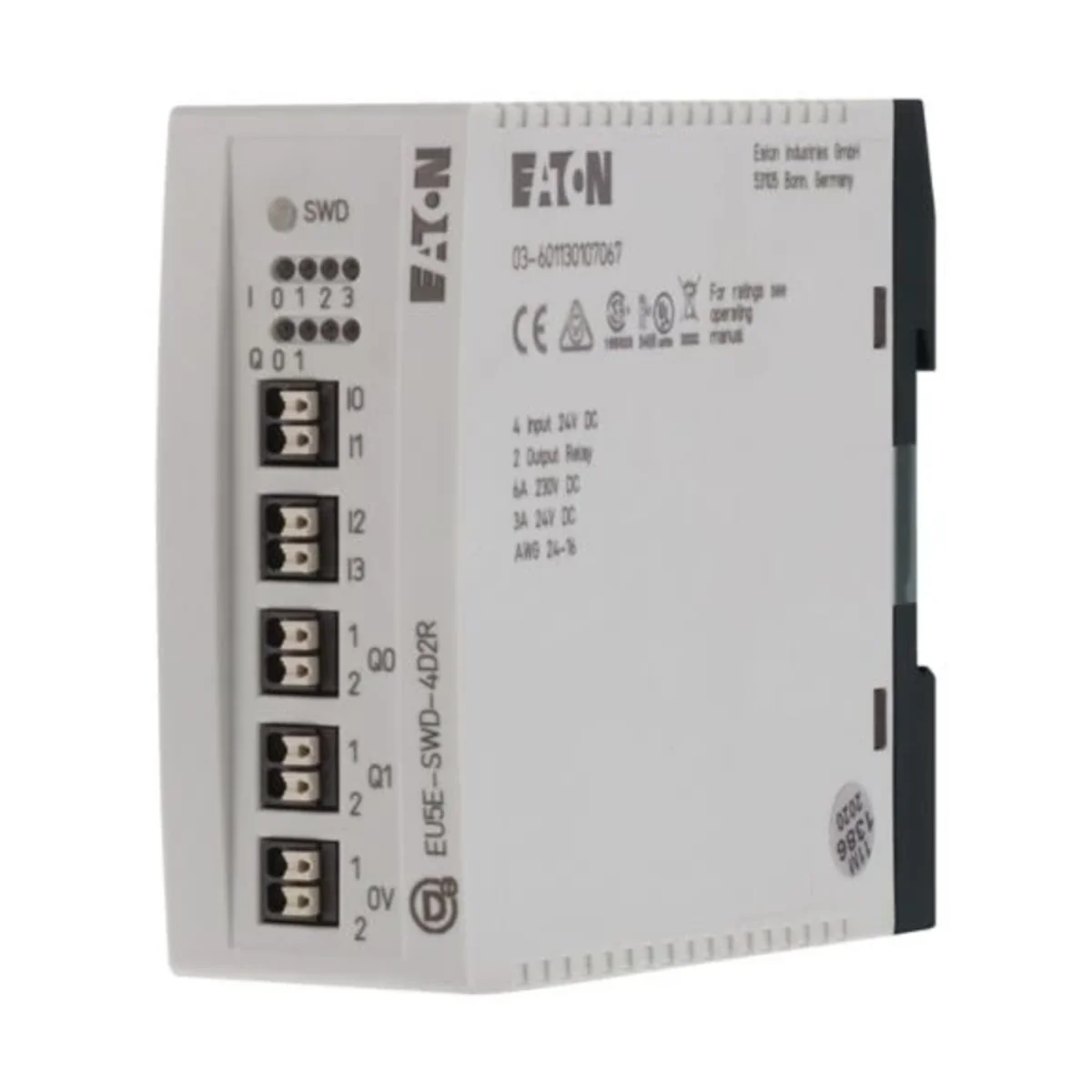

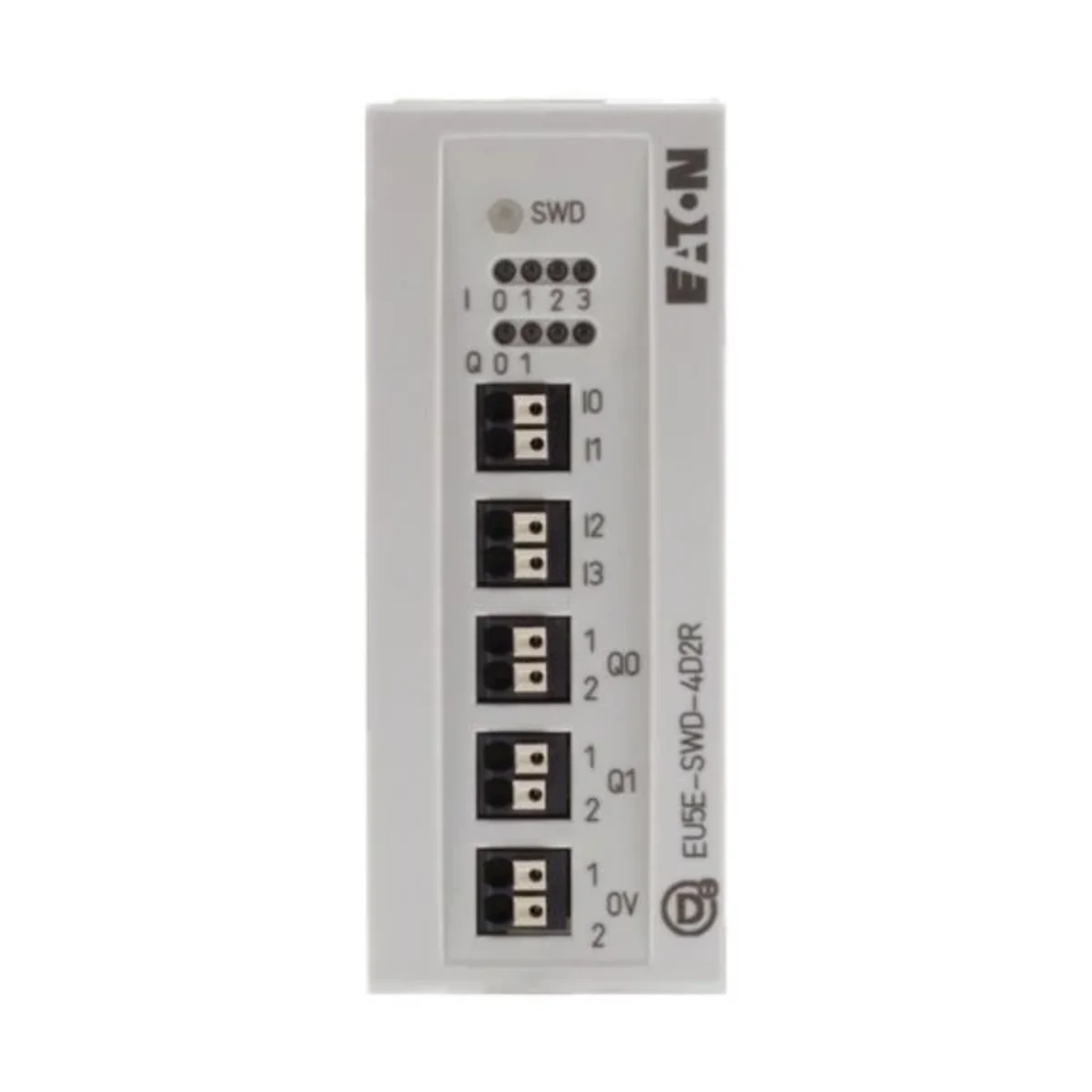

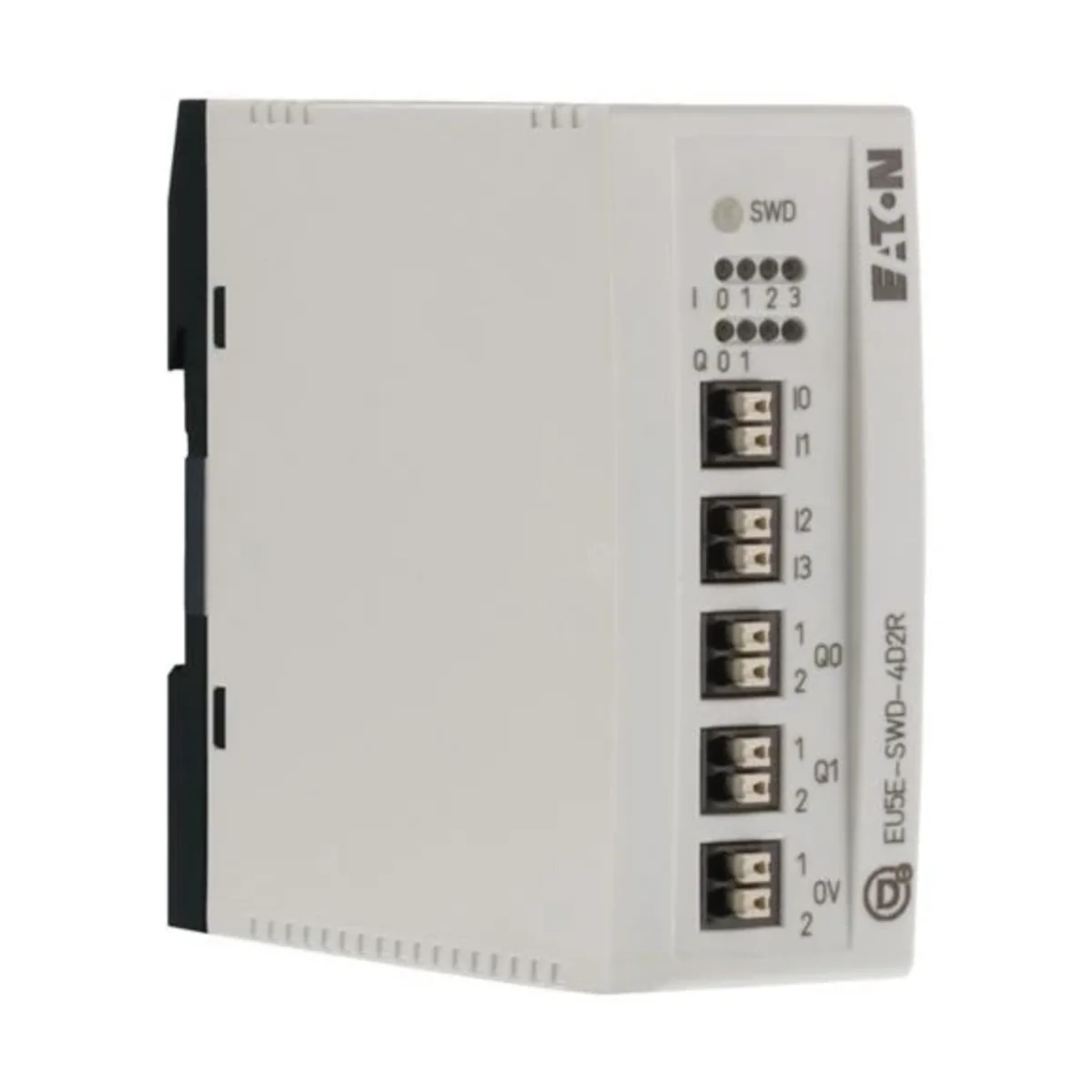

SmartWire-DT 4 inputs 2 relay outputs module 116383

local index:
API163MOEL
Catalog No:
116383
EAN code:
4015081161133
SmartWire-DT 4 inputs 2 relay outputs module
SmartWire-DT 4 inputs 2 relay outputs module
SmartWire-DT 4 inputs 2 relay outputs module
SmartWire-DT 4 inputs 2 relay outputs module
SmartWire-DT 4 inputs 2 relay outputs module
SmartWire-DT 4 inputs 2 relay outputs module
SmartWire-DT 4 inputs 2 relay outputs module
SmartWire-DT 4 inputs 2 relay outputs module

Click on the photo to enlarge

Manufacturer: EATON
Power dissipation [W]: 1
Digital inputs: 4
exits: 2
See full description
Price:
201,01 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Product description Technical data Manufacturer details Bulk packaging

Product description

SmartWire-DT devices for connecting digital I/O signals, automatic address setting, module with 4 digital inputs 24VDC, 2 relay digital outputs 250VAC, 3A, push-in terminal connection

Technical data

  • Power dissipation [W]
    1
  • exits
    2
  • Digital inputs
    4
  • DC Power [V]
    24

Other technical data

  • Supply voltage AC 50 Hz
    0 ... 0 V
  • Supply voltage DC
    0 ... 28.8 V
  • Number of digital inputs
    4
  • Digital inputs configurable
    No
  • Input current at signal 1
    4 mA
  • Type of voltage (input voltage)
    AC
  • Output current
    3 A
  • Type of output voltage
    AC
  • Number of HW-interfaces industrial Ethernet
    0
  • Number of HW-interfaces RS-232
    0
  • Number of HW-interfaces RS-485
    0
  • Number of HW-interfaces parallel
    0
  • Number of HW-interfaces USB
    0
  • With optical interface
    No
  • Supporting protocol for PROFIBUS
    No
  • Supporting protocol for INTERBUS
    No
  • Supporting protocol for KNX
    No
  • Supporting protocol for Data-Highway
    No
  • Supporting protocol for SUCONET
    No
  • Supporting protocol for PROFINET IO
    No
  • Supporting protocol for SERCOS
    No
  • Supporting protocol for EtherNet/IP
    No
  • Supporting protocol for DeviceNet Safety
    No
  • Supporting protocol for PROFIsafe
    No
  • Supporting protocol for other bus systems
    Yes
  • Radio standard WLAN 802.11
    No
  • Radio standard GSM
    No
  • IO link master
    No
  • Degree of protection (IP)
    IP20
  • Time delay at signal change
    0 ... 0 ms
  • Rail mounting possible
    Yes
  • Front built-in possible
    No
  • Suitable for safety functions
    No
  • Performance level according to EN ISO 13849-1
    None
  • Appendant operation agent (Ex ib)
    No
  • Explosion safety category for dust
    None
  • Height
    90 mm
  • Supply voltage AC 60 Hz
    0 ... 0 V
  • Voltage type (supply voltage)
    AC
  • Number of digital outputs
    2
  • Digital outputs configurable
    No
  • Permitted voltage at input
    20.4 ... 28.8 V
  • Type of digital output
    Relay
  • Permitted voltage at output
    0 ... 250 V
  • Short-circuit protection, outputs available
    No
  • Number of interfaces PROFINET
    0
  • Number of HW-interfaces RS-422
    0
  • Number of HW-interfaces serial TTY
    0
  • Number of HW-interfaces wireless
    0
  • Number of HW-interfaces other
    0
  • Supporting protocol for TCP/IP
    No
  • Supporting protocol for CAN
    No
  • Supporting protocol for ASI
    No
  • Supporting protocol for Modbus
    No
  • Supporting protocol for DeviceNet
    No
  • Supporting protocol for LON
    No
  • Supporting protocol for PROFINET CBA
    No
  • Supporting protocol for Foundation Fieldbus
    No
  • Supporting protocol for AS-Interface Safety at Work
    No
  • Supporting protocol for INTERBUS-Safety
    No
  • Supporting protocol for SafetyBUS p
    No
  • Radio standard Bluetooth
    No
  • Radio standard GPRS
    No
  • Radio standard UMTS
    No
  • System accessory
    Yes
  • Type of electric connection
    Flat plug-in connection
  • Fieldbus connection over separate bus coupler possible
    Yes
  • Wall mounting/direct mounting
    Yes
  • Rack-assembly possible
    No
  • SIL according to IEC 61508
    None
  • Appendant operation agent (Ex ia)
    No
  • Explosion safety category for gas
    None
  • Width
    35 mm
  • Depth
    102 mm

Manufacturer details

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs. 1 pcs.
Weight (kg) 0,100 0,122
Volume (m3) 0,000 0,000
Width (m) 0,035 0,036
Length (m) 0,102 0,123
Depth (m) 0,090 0,094
See more >>
